9. Install mounting brackets onto carriage bolts with the long brackets on forward bolts and short
brackets on rearward (long and short brackets can be interchanged as needed). Secure bolts through
mounting brackets with serrated washers, lock washers, and hex nuts. Secure the other four bolts
through the bed with flat washers, lock washers, and nuts.
10. Drill two holes in frame for each bracket. Select the holes which will give the greatest spread
between bolts. Install eight 1/2”-13x1-3/8” ribbed neck bolts, (threads pointing out), lock washers, and
hex nuts. Tighten nuts until bolt heads seat. Lubrication of knurls of all rib neck bolts is recommended.
WARNING:
DO NOT lubricate threads. It may cause bolt failure.
11. Torque all nuts to 85 lb-ft
12. Pull wire provided to pull rib neck bolts through frame as needed per application
Note: On vehicles with heavy duty suspensions, check for interference with bolts where brackets are
mounted to frame. If interference with suspension spring results, cut bolt flush to nut outboard of frame
or use weld option.
CAUTION:
Check for obstructions before drilling. Failure to do so could result in damaged fuel or
brake lines, structural members, etc. CEQUENT PERFORMANCE PRODUCTS, INC. does
its best to communicate tow vehicle manufacturer changes; however, it is ultimately the
responsibility of the installer to prevent damage due to installation.
Drill locations will vary. See individual installation for location
For Installation Assistance or Technical Help, Call 1-888-521-0510
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R

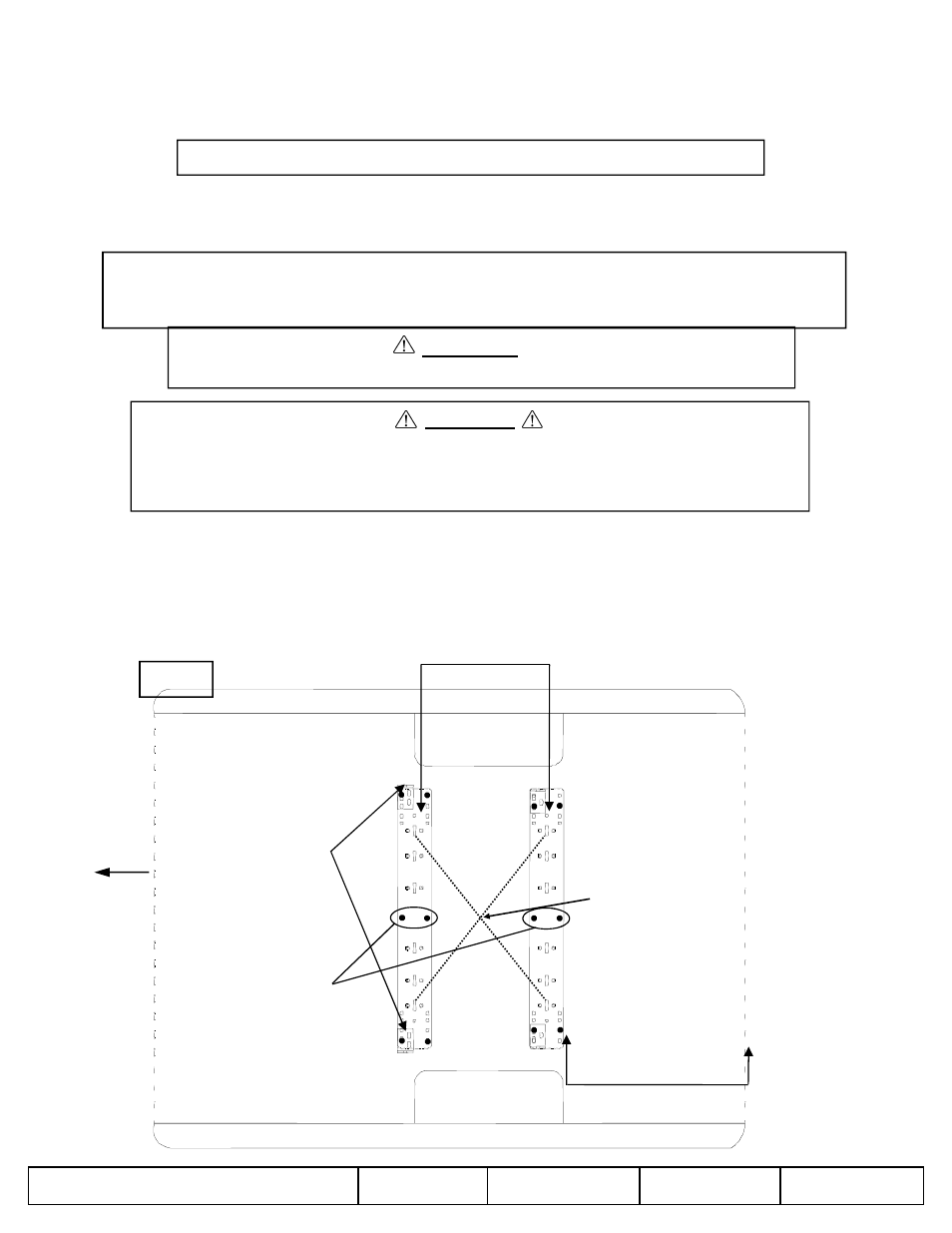

Fig. 2
Measure diagonal
from same
reference point.
Measurement
should be the
same.
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
NOTE:
Must install center bolt
in one of the center
holes in each rail.
Check to make sure
center bolt does not
interfere with bed sill.
Choose 10 holes
identified by black
dots that correspond
with your individual
configuration. (’00
to10, GM Silverado
Pattern Shown)
Use side bracket/hitch base assembly to position rails (not included)
Rear Edge of
Truck Bed
Rear Edge of Truck bed to
Rear Edge of Base Rail
Front
of
Truck
Drill locations will vary. See individual installation for location
SHEET 3 0F 21
