DODGE (RAM) ‘02-08’ 1500 / ‘03-12’ 2500 WITHOUT OVERLOAD BRACKETS
(‘03-12’ 2500 WITH OVERLOAD AND 3500 REQUIRED BRACKET KIT 58186, See page 15 )
IMPORTANT NOTES FOR THIS INSTALLATION:
1. Tube spacer and 4 1/2” carriage bolt used to attach through rearward Bed Sill (Row 3).
2. **Rib neck bolts will need to be pulled through access holes in frame with supplied pull wire (see below).
4. It is very important that
brackets in Row 2 are against
rear side of Bed Sill as shown.
Due to dimensional instability in
Bed Sill placement with the
Dodge truck, interference could
result when drilling in Row 3.
Observe caution note below and
double check all areas prior to
drilling.
5. To avoid drilling inside of
frame, (Passenger Side
Row 3) Optional Custom
Bracket (58023) can be
purchased from your
dealer if needed. The use
of this bracket allows for
3. Do not drill through both
walls of frame. Drill only
through wall of frame to
which bracket is mounted.
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!

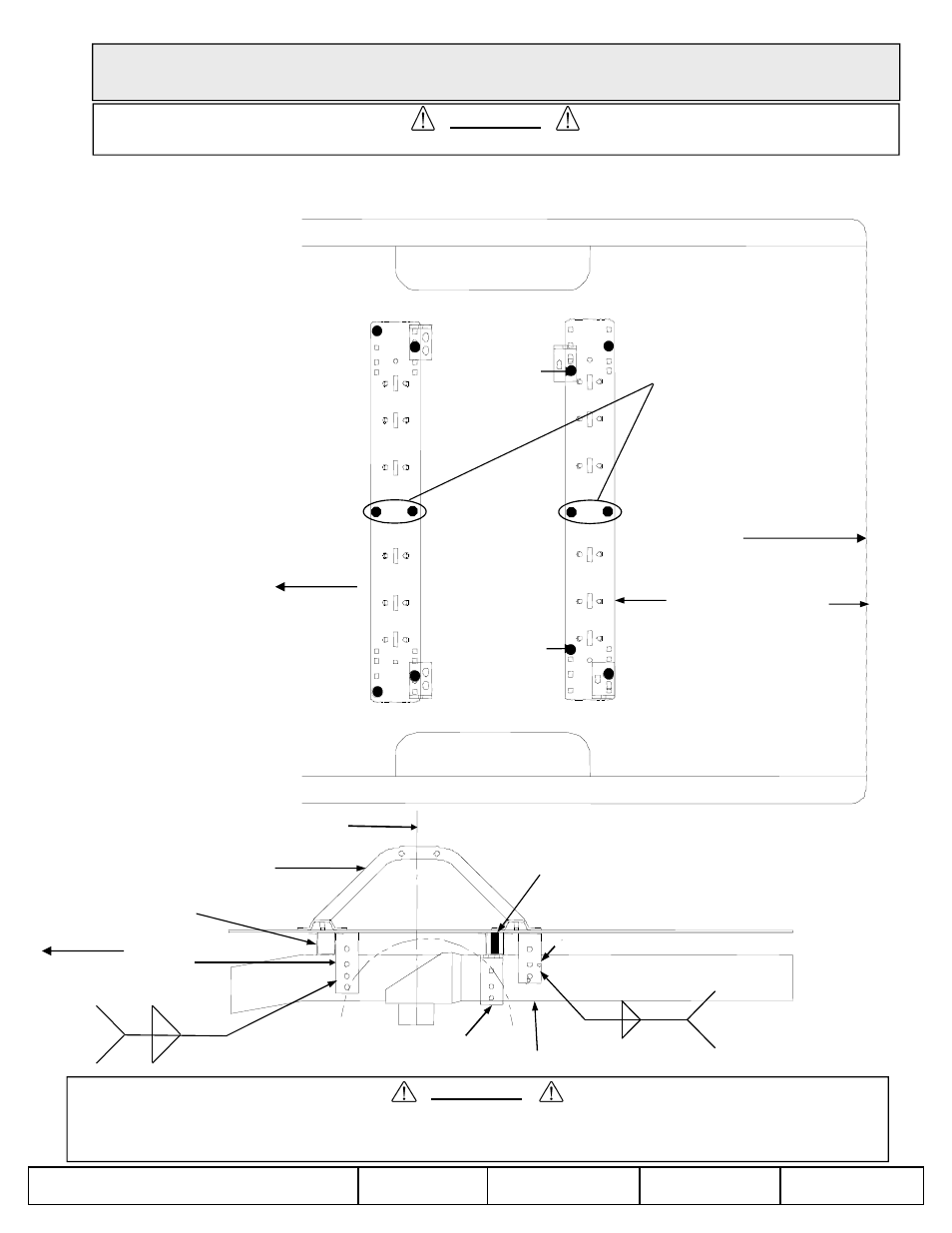

28-5/16” Long Box
26-5/16” Short Box
Front
of
Vehicle
Rear Edge of
Truck Bed
Drill through
Bed Sill with
17/32” drill.
Open up hole
through truck
bed only with
1” dia. drill.
Drop tube
spacer through
hole in truck
bed to avoid
crushing Bed
Sill when
torquing 4-1/2”
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
NOTE:
Must install center bolt in
one of the center holes in
each rail.
Check to make sure center
bolt does not interfere with
bed sill.
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
Short bracket (driver’s side) outside frame
drilling outside the frame
and avoids exhaust
hanger.
6. *Due to tubular frames
having thinner walls than
previous C channel
frames, extra caution
needs to be used when
mounting with the optional
welding.
Side Bracket
*
Optional weld
pattern
Drivers side of 1500 Ram Long box Shown
King Pin Centered
over Axle Center
1/4 2
1/4 1.5-3
*
1/4 2
1/4 2
*
Use provided tube spacer and 4-1/2”
carriage bolt to attach through Bed
Sill
**Rearward access hole (in bottom of frame)
Long bracket
Short bracket (passenger
side), inside frame.
Bed Sill
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
26-5/16” Short Box torquing 4-1/2”
carriage bolt.
Measure from Rear
Edge of truck bed to
rear edge of base rail.
SHEET 13 0F 21
Front
of
Vehicle
