DODGE ‘94 to ‘01 1500 / ‘94 to ‘02 2500/3500 (FULL SIZE, SHORT AND LONG BOX)
Front
of
Vehicle
IMPORTANT NOTES FOR THIS INSTALLATION:

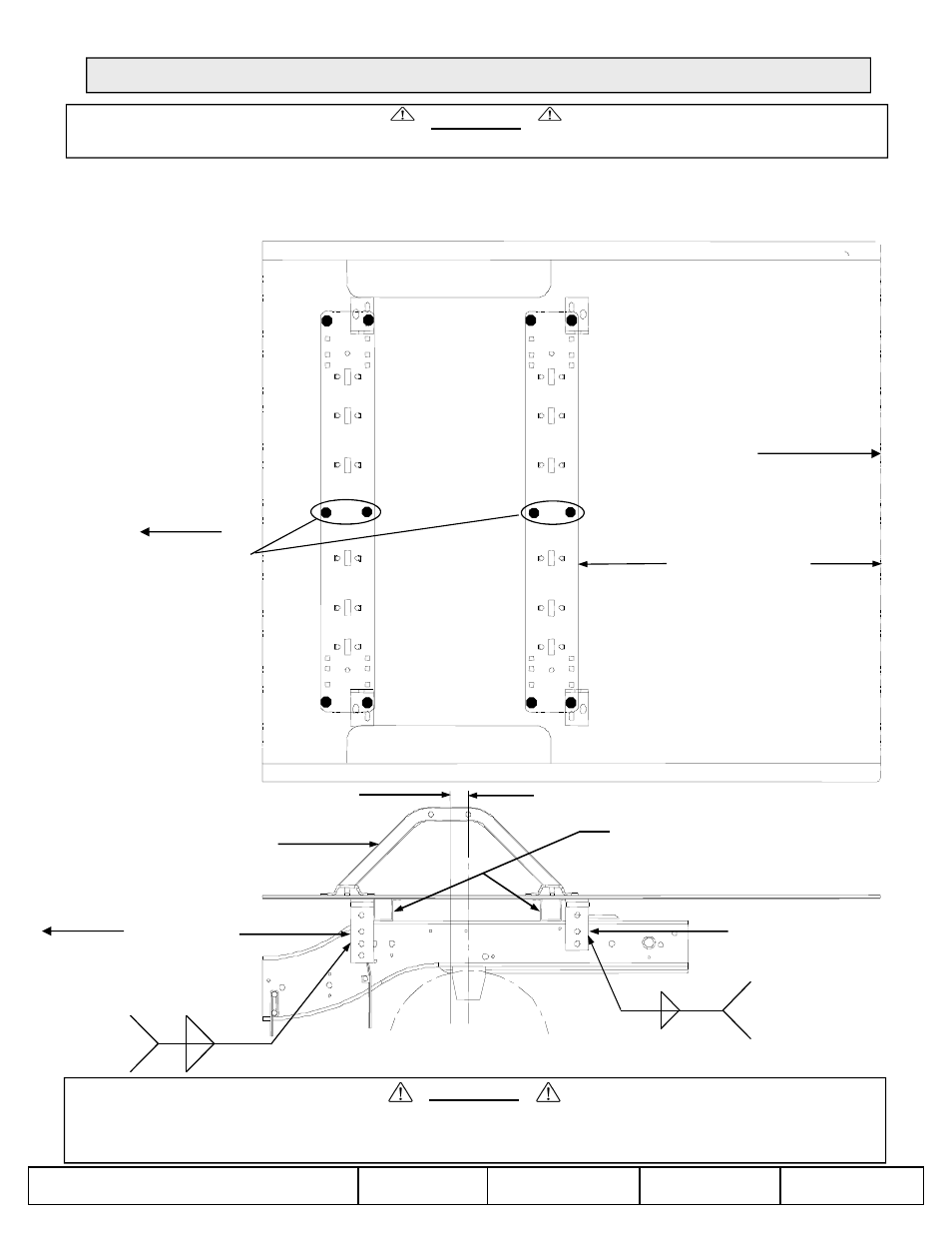

1. It is very important that brackets in Row 2 are against forward side of bed sill as shown below. Due to
dimensional instability in bed sill placement with the Dodge truck, interference could result when drilling in Rows 3
or 4. May need to move base rail location +/- 1/2” to ensure frame brackets do not interfere with bed sills.
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
NOTE:
Must install center bolt in
one of the center holes in
each rail.
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
32-7/16” Long Box
28-7/16” Short Box
Rear Edge of
Truck Bed
Measure from Rear Edge of truck
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
Side Bracket
Long bracket
King Pin Center approx. 2”
forward of Axle Center
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
SHEET 16 0F 21
each rail.
Check to make sure center
bolt does not interfere with
bed sill.
1/4 1.5-3
1/4 2
*
Axle Center
1/4 2
1/4 2
*
*
Optional weld
pattern
Drivers side Ram 1500 Shown
Measure from Rear Edge of truck
bed to rear edge of base rail.
Short bracket
Bed Sill
Front
of
Vehicle
