Draw-Tite 65056 FRONT MOUNT RECEIVER - Manual

Installation Instructions
Chevrolet Silverado 2500 HD, 3500 HD
GMC Sierra 2500 HD, 3500 HD
Does not fit Denali HD due to extensive fascia cutting
Note: Fascia trim required. Obtain vehicle owners approval before cutting
Part Numbers:
65056
CARGO CAPACITY – Do not exceed

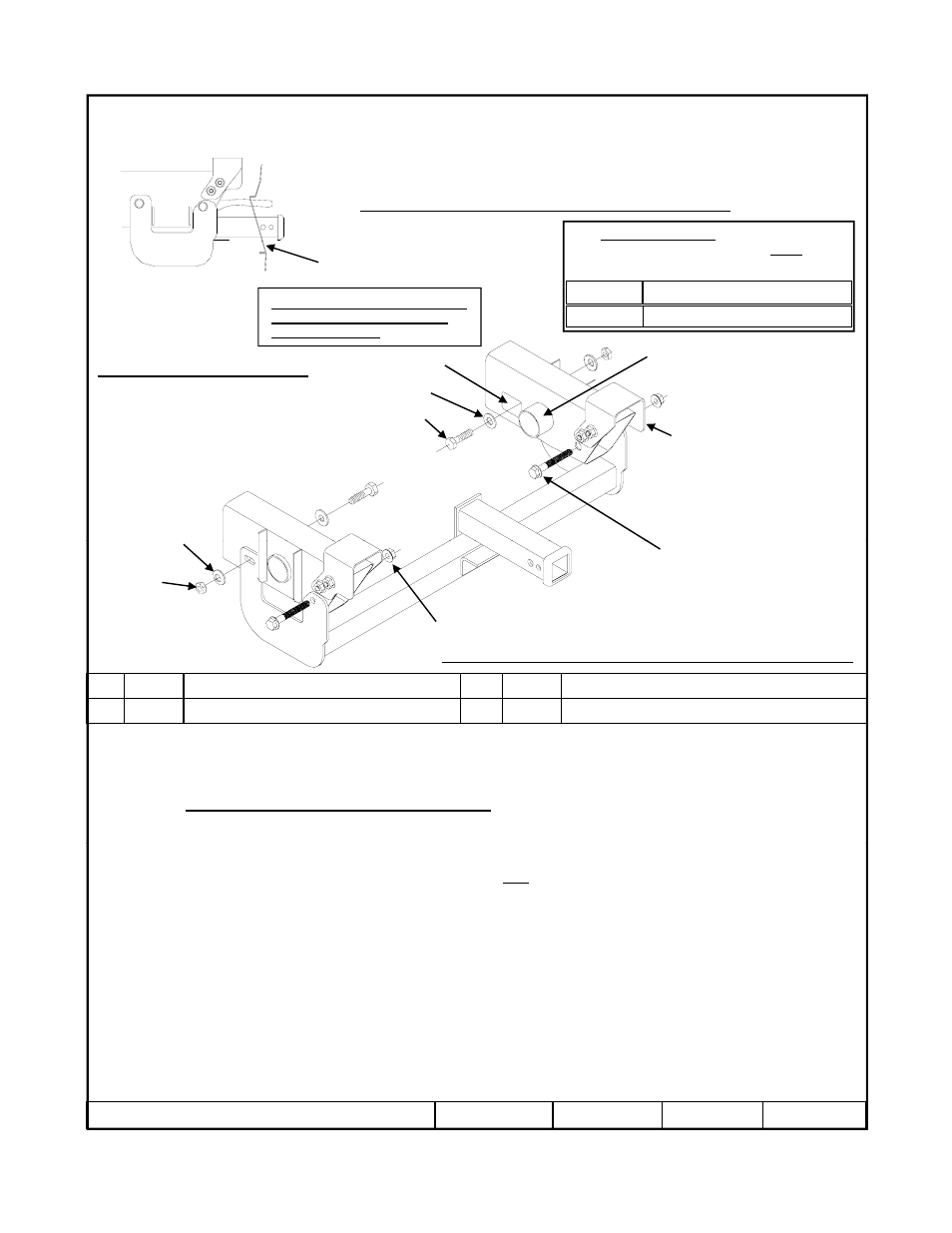

Hitch Shown In Proper Position
E i t R i d Utilit K if
500 LB. (227 Kg) or Truck Front
Gross Axle Weight Rating, (GAWR).
9,000 lb. MAXIMUM WINCH LINE PULL
NOTE: If front mounted license
plate is present, repositioning
may be necessary.
2
Fascia
(4086 Kg) MAXIMUM WINCH LINE PULL
Access Hole
Crossmember shown
Cut off for clarity
Equipment Required: Utility Knife,
Tape Measure & Marking Pencil.
Wrenches: 3/4” & (2) 18mm
Drill Bits: None
Fastener Kit: 65056F
1
2
Bumper support
3
1 Qty. (2) Hex bolt 1/2-13 X 1.500 GR5 3 Qty. (2) Conical Toothed Washer
Fascia trim required. Obtain vehicle owners approval before cutting
Note: Fasteners typical
both sides Flange nuts for existing
tow hooks
Tow hooks and
fascia not shown.
Existing M12 Flange Bolt -
Typ
3
4
Trim fascia for receiver tube.
1.
Trim fascia. See fascia trimming information for proper vehicle model:
Note: CONSULT VEHICLE OWNER BEFORE TRIMMING.
2. Remove the flange nuts on the 2 bolts (1 each side) from existing tow hooks. On driver’s side loosen bolt until flush with the
inboard frame rail. On passenger’s side remove bolt. Keep for re-installation.
2 Qty. (2) Flat washer 4 Qty. (2) Hex Nut ½-13
p g p
3. Raise hitch into position and push both bolts through brackets to support the hitch.
Note: If there is interference with the bumper support, loosen (do NOT remove) and lift the bumper upward for extra clearance.
4. Insert ½-13 hex bolt and flat washer thru access hole on inside frame rail and thru hole in frame and slot in hitch side bracket,
both sides.
5. Secure with conical toothed washers and hex nuts..
6. Tighten all fasteners to the required torque specification.
7. If bumper support was loosened in Step 3 re-tighten.
z 2010 Cequent Performance Products Sheet 1 of 6 65056N 9-2-10 Rev. A
Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Tighten all M12 CL10.9 fasteners with torque wrench to 92 Lb.-Ft. (125 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Form: F205 Rev A 5-6-05
