EASY DMX SO
XII 2009
Operation
Four white (or free colour) channels configuration
Independent light point no. DMX starting address
Used DMX channel
W 1 W 2 W 3 W 4
1 1 1 2 3 4
2 5 5 6 7 8
3 9 9 10 11 12
… … … … … …
16 * 61 61 62 63 64
… … … … … …
32 ** 125 125 126 127 128
… … … … … …
64 *** 253 253 254 255 256
* Maximum in case of EASY DMX 16x4 SO
** Maximum in case of EASY DMX 32x4 SO
*** Maximum in case of EASY DMX 64x4 SO

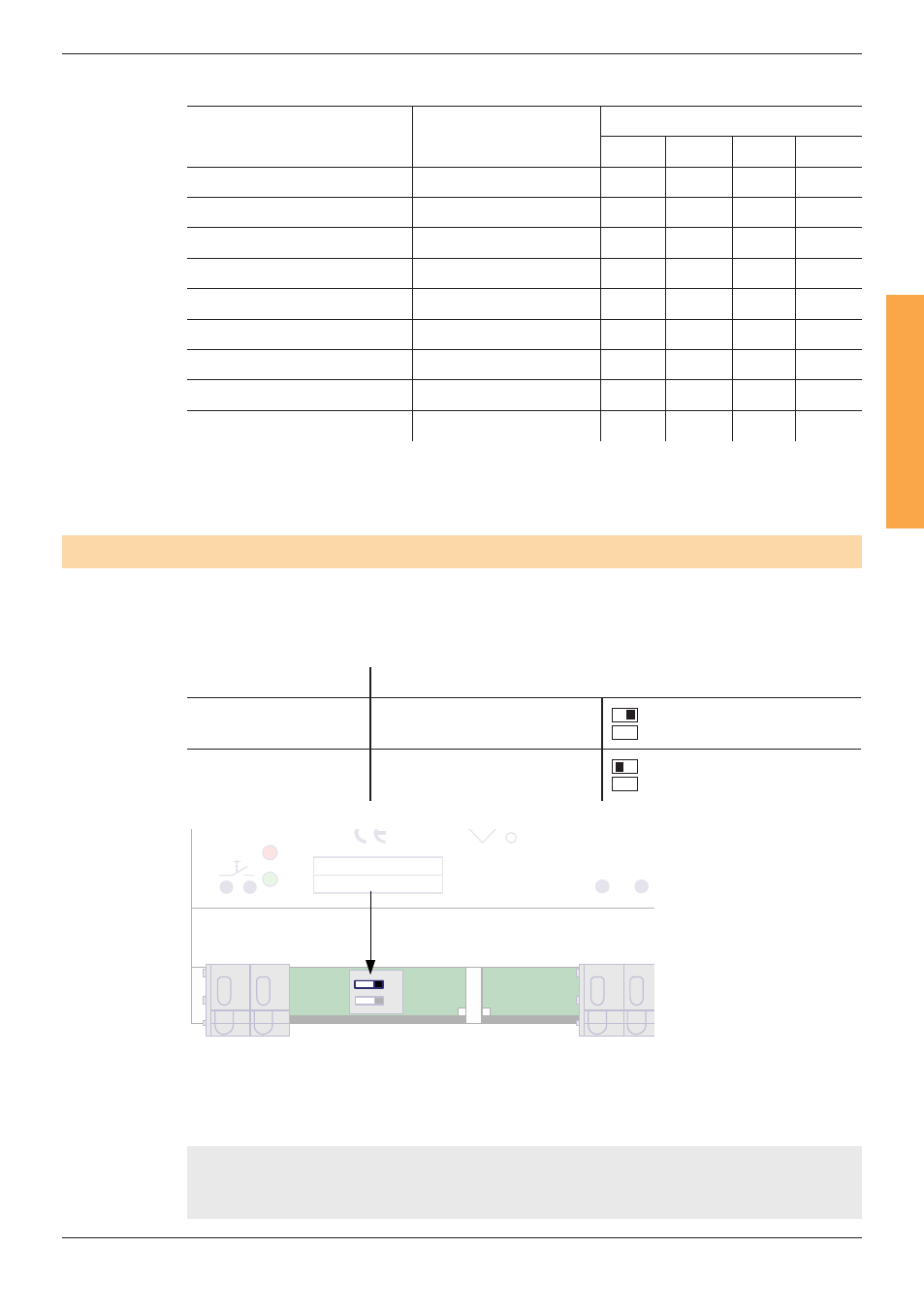

Checking the DMX addresses setting
In “multiple light points” applications, the DMX addresses setting for DMX devices can
be checked by means of the test mode.
The test mode is activated/deactivated via DIP switch 1.
Status DIP switch setting
Activated DIP switch 1 = ON
Deactivated DIP switch 1 = OFF
O
n
1
2
O
n
1
2
L N
EASY signal
t a (°C )
0...+ 50
2 1 3 4
DMX out
+
-
Shield
Sync
Cmd
1 - ON 120Ω Termin.
1 - ON Test Mode
2 - ON Slave / OFF Master
Temp.-Test
t
C
= 60°C
110
Made in Italy by OSRAM
A6022790072
2 - N.C.
wire preparation
push in
s+f: 0.5 – 2.5
10 - 12 mm
EASY DMX 16x4 SO
2
110-240 V
_
~
60-40mA
0/50/60Hz
EASY
signal
When test mode is activated, a pattern is sent on the DMX output.
If the DMX addresses setting matches the physical location of the DMX devices, a
smooth chasing effect will be generated on the attached DMX devices.
Note:
A complete check of the DMX addresses setting and the corresponding patching of
light points can only be realized with the EASY Color Control software.
