36 XII 2009
EASY DMX SO Installation

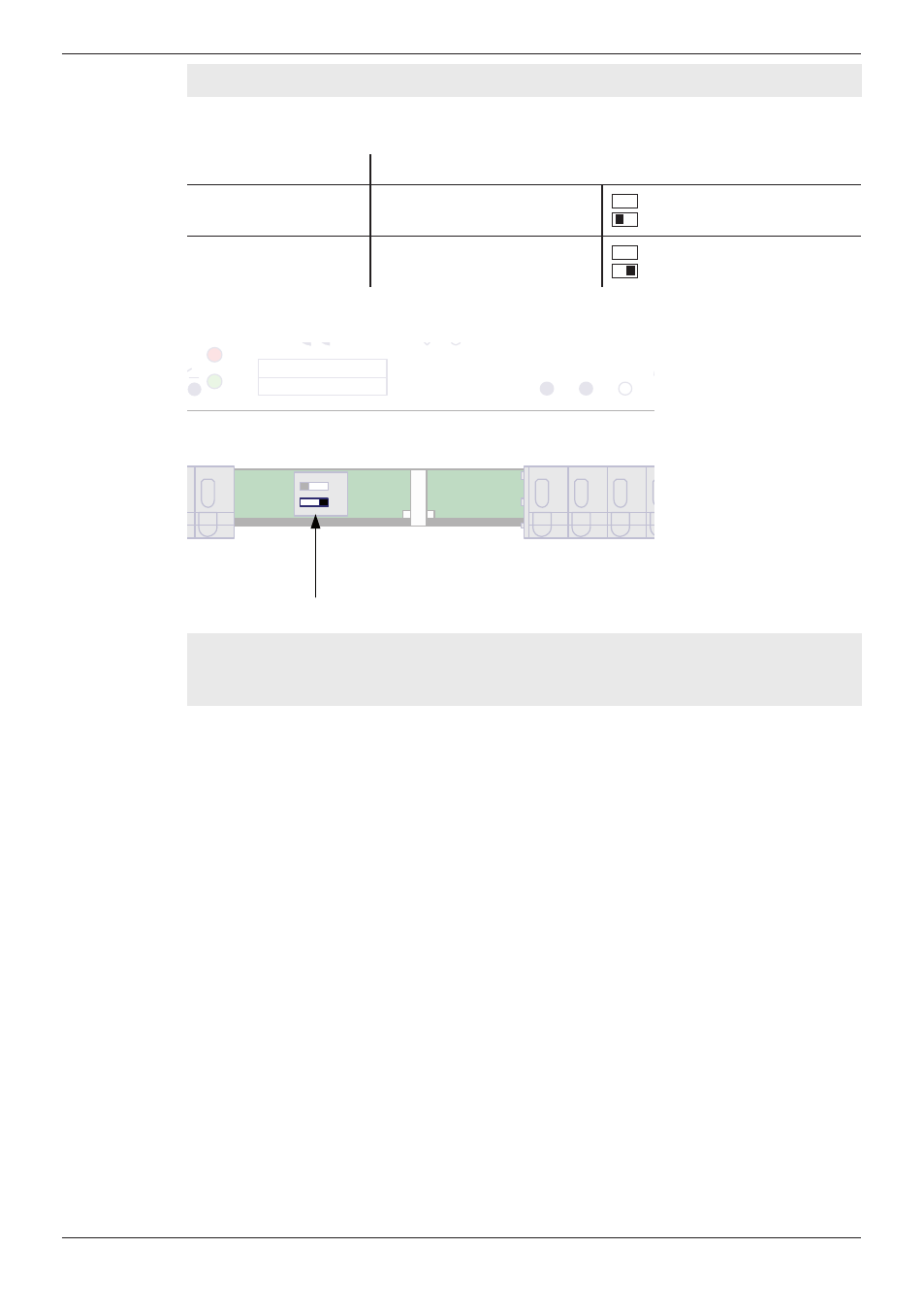

Activate master status
At the EASY DMX, the master/slave status is activated via DIP switch 2.
Status DIP switch setting
Master DIP switch 2 = OFF
Slave DIP switch 2 = ON
O
n
1
2
O
n
1
2
L N
EASY signal
t a (°C )
0...+ 50
2 1 3 4
DMX out
+
-
Shield
Sync
Cmd
1 - ON 120Ω Termin.
1 - ON Test Mode
2 - ON Slave / OFF Master
Temp.-Test
t
C
= 60°C
110
Made in Italy by OSRAM
A6022790072
2 - N.C.
wire preparation
push in
s+f: 0.5 – 2.5
10 - 12 mm
EASY DMX 16x4 SO
2
110-240 V
_
~
60-40mA
0/50/60Hz
EASY
signal
Note:
If two or more EASY DMX control units are combined in one system, only one
device can be configured as master.
