Document Number: ZXTxRM-5110m
Page
56
1 – RTS Flow Control
D5 – DIO5 Configuration
: Configure options for the DIO5 line of the
module. Options include: Associated LED indicator (blinks when
associated). This is a pull down option. Selections are:
0 – Disable
1 – Associated Indicator
P0 – PWMO Configuration
: Select/Read function for PWM0. This is a
pull down option. Selections are:
0 – Disable
1 – RSSI
AP – API Enable
: Enables API mode. This is a pull down option.
Selections are:
0 – API Disabled
1 – API Enabled
2 – API Enabled with PPI
PR – Pull Up Resistor Enable
: Set/read bitfield to configure internal
pullup resistors status for I/O lines. 1=internal pullup enabled, 0=no
internal pullup. Bitfield map: Bit 7 - DIN (P3), Bit 6 - IO8/SLEEP_RQ
(P9), Bit 5 - DIO6/RTS (P16), Bit 4 - DIO0 (P20), Bit 3 - DIO1 (P19), Bit
2 - DIO2 (P18), Bit 1 - DIO3 (P17), Bit 0 - DIO4 (P11). The range is 0x0
to 0xFF
Diagnostics
: Access diagnostic parameters.

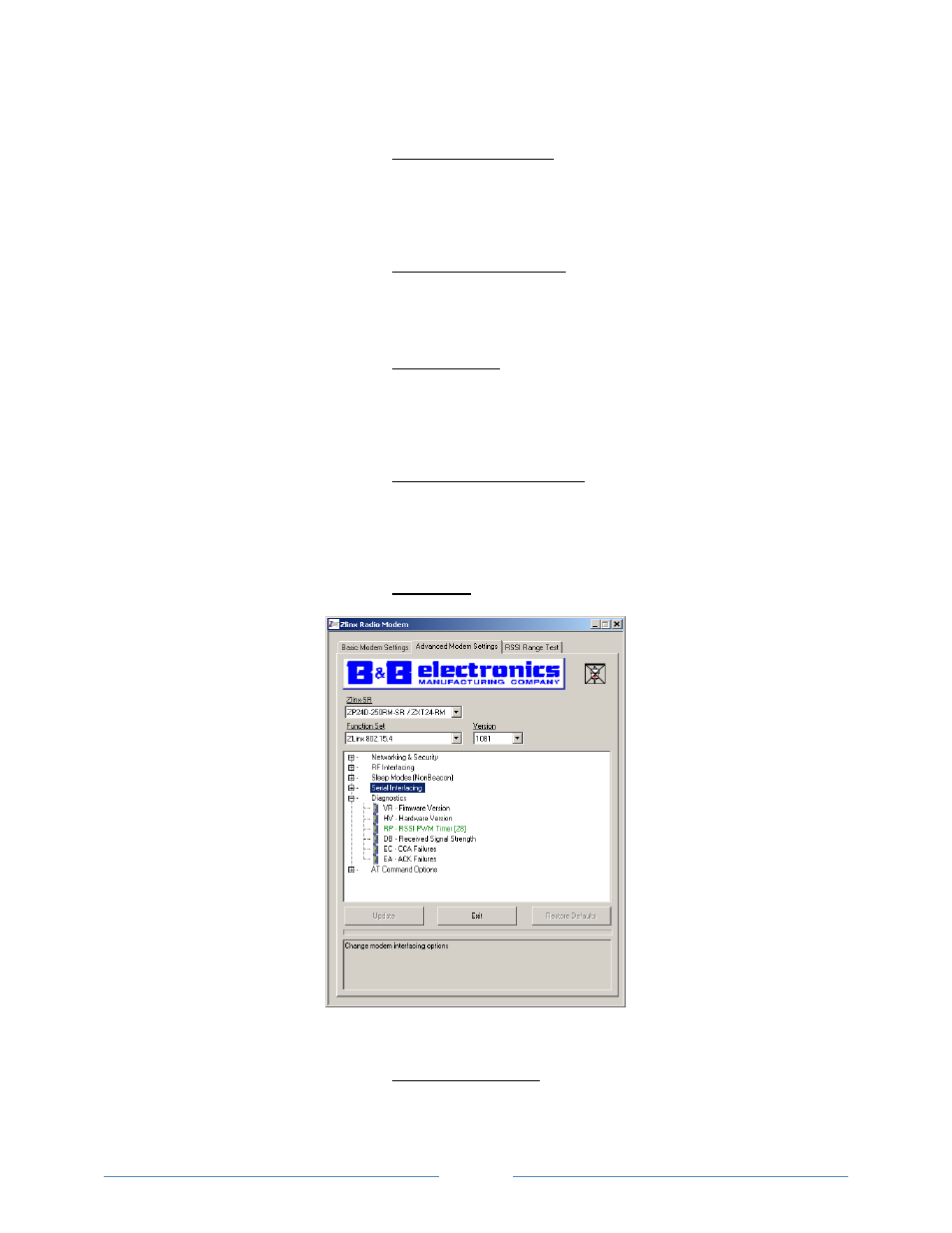

Figure 5-35 Diagnostics (ZXT24-RM)
RP – RSSI PMW Timer : Set/read PWM timer register. Set duration of
PWM (pulse width modulation) signal output. The signal duty cycle is
