Document Number: ZXTxRM-5110m



Page
24

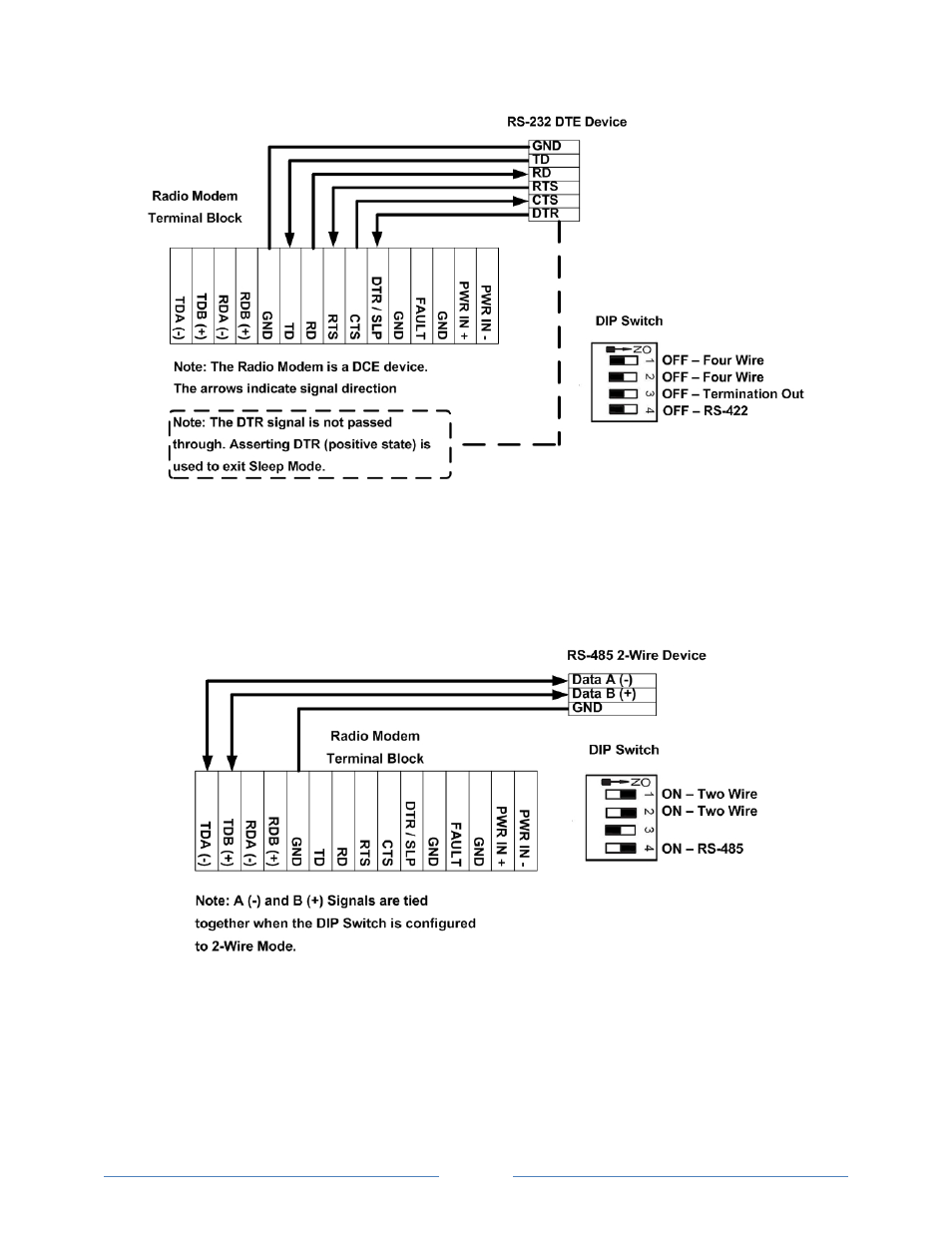

Figure 4-3

RS-232 Wiring


4.1.4 RS-485 Two Wire Connections







Figure 4-4

RS-232 Wiring
