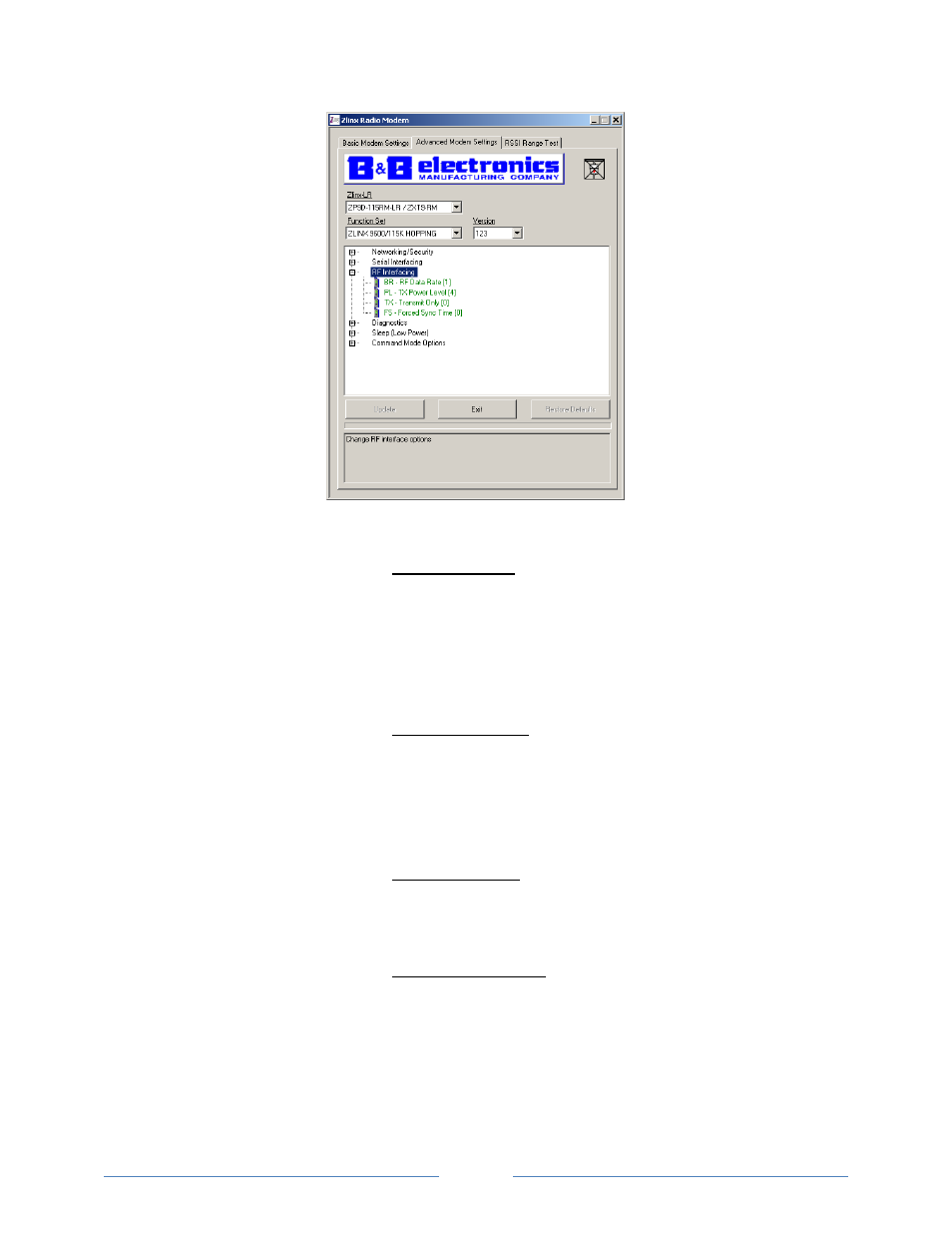

Figure 5-28 RF Interfacing (ZXT9-RM)
BR – RF Data Rate : Select RF data rate (over-the-air transmission
rate). This is a pull down option. Selections are:
0 – 9600 bps
1 – 115200 bps
Selecting 9600 can extend the radio modem’s range, but limit its
throughput. Selecting 9600 can maximize the throughput, but the range
will be limited.
PL – TX Power Level
: Select transmit power level. This is a pull down
option. Selections are:
0 – 1 mW
1 – 10 mW
2 – 100 mW
3 – 500 mW
4 – 1 Watt
TX – Transmit Only
: Select TX/RX or TX Only. This is a pull down
option. Selections are:
0 – Transmit and Receive
1 – Transmit Only
FS – Forced Sync Time
: Set/read forced re-sync period. Normally only
the first packet of a transmission event contains the sync preamble. This
command allows forced periodic sync preambles during long
transmission events. Zero disables this feature. The range is 0x0 to
0xFFFF.
