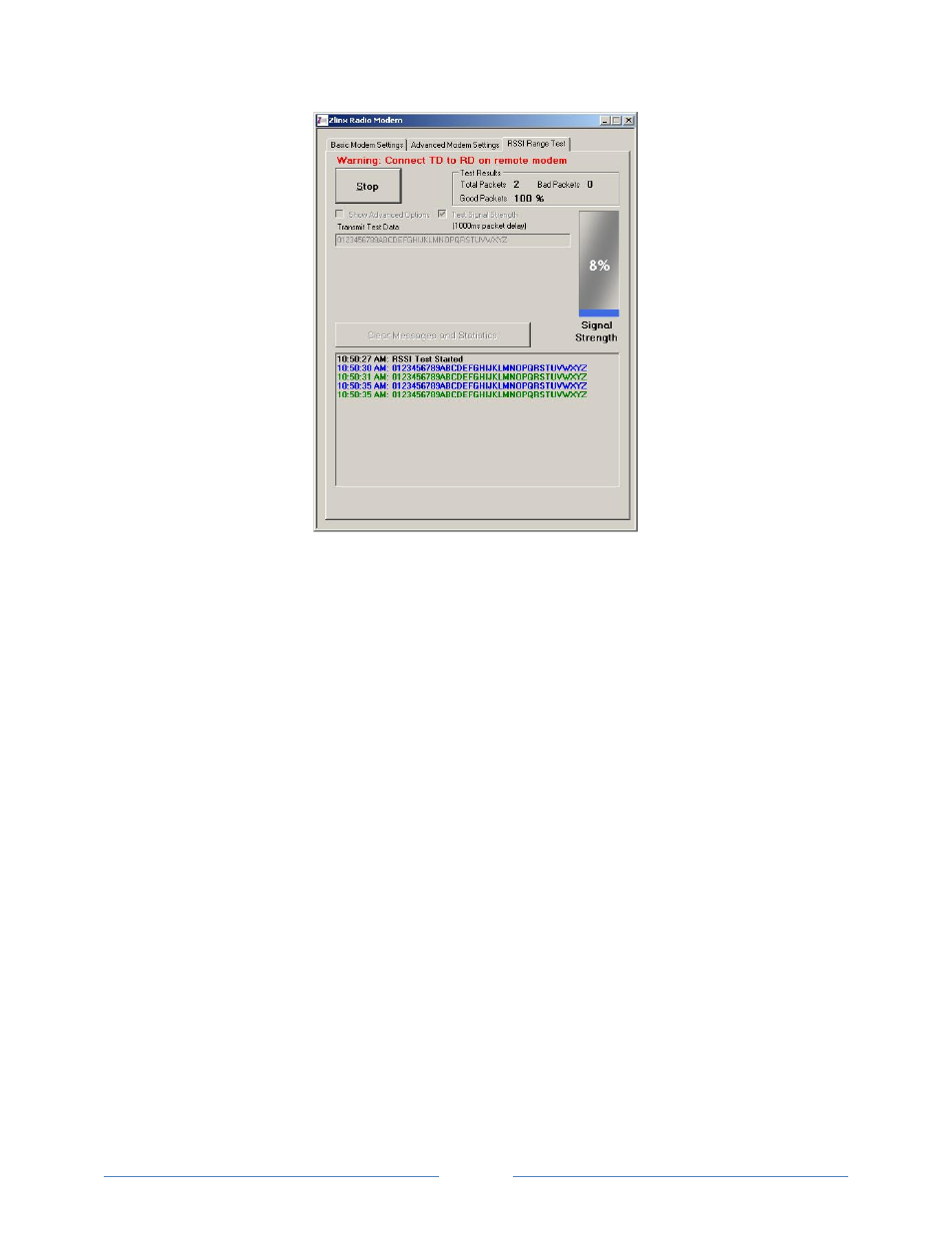

Figure 8-2 RSSI Range Test Results Screen
5. RSSI Range Test Features
•
Test Results section of the screen shows the total packets sent. The section
also shows the percentage of good packets received back from the modem.
•
Test Signal Strength checkbox will turn on/off the Signal Strength value
displaying graphically on the progress bar.
• The
Start button will start the range test as configured. Once the test is running
the button will be shown as Stop.
• The list box at the bottom will display all the received packet data both good and
bad. It will display “Timeout waiting for data” for missed packets.
•
Clear Messages and Statistics button will clear the list box and packet
count/percentages for a clean start to a new test.
• The
Show Advanced Options check box will toggle the advance test options on
to the screen.
