Document Number: ZXTxRM-5110m
Page
42
Networking and Security:
Used to configure addressing and security
options.

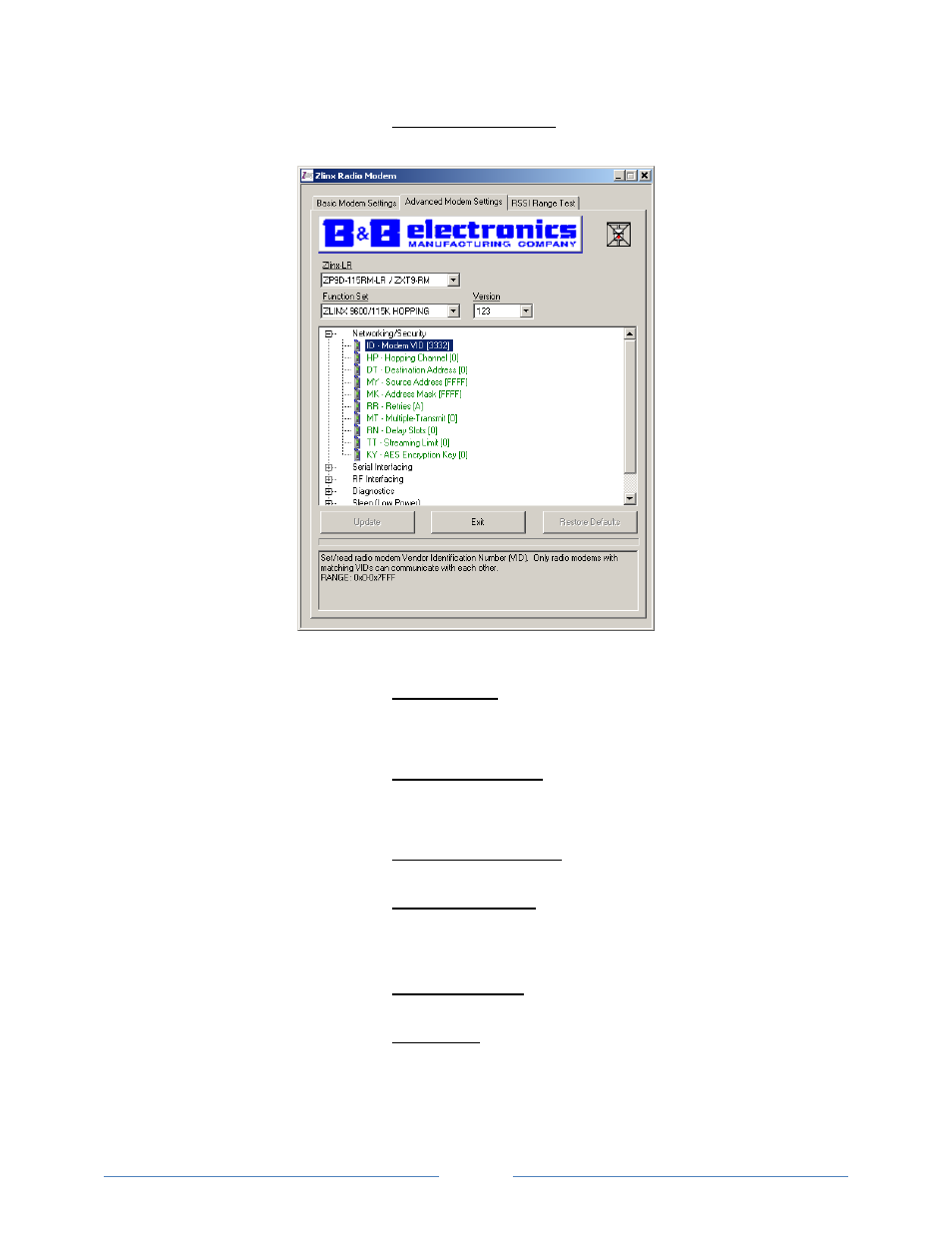

Figure 5-26 Networking and Security Options (ZXT9-RM)
ID – Modem VID
: Set on the Basic Tab. Set/read radio modem Vendor
Identification Number (VID). Only radio modems with matching VIDs
can communicate with each other.
The range is 0x0 to 0x7FFF
HP – Hopping Channel
: Set/read spread spectrum channel on which
modem communicates. Separate channels minimize interference
between multiple sets of modems operating in the same vicinity.
The range is 0x0 to 0x9.
DT – Destination Address
: Set/read module's destination address. The
range is 0x0 to 0xFFFF
MY – Source Address
: Set/read module's source address. If set to
0xFFFF, then the DT address is used for both source and destination
addresses.
The range is 0x0 to 0xFFFF
MK – Address Mask
: Set/read the module address mask for
configuration of local and global address spaces. The range is 0x0 to
0xFFFF.
RR – Retries:
Set/read maximum number of RF packet delivery
attempts. If RR is non-zero and MT is zero, packets sent from the radio
will request an
acknowledgement, and can be resent up
to
RR times if no acknowledgements are received. The range is 0x0 to
0xFF.
