Section Three – Hardware Installation
3.0 Hardware Installation
3.1 Mechanical Diagram
The mechanical diagram in Appendix C contains information for mounting your radio modem.
3.2 IP67 Cable Gland Installation
3.2.1 Cable Gland Description
The Cable Gland is used to maintain the water tight rating while allowing a cable to enter
the enclosure. The assembly consists of black molded nylon body, hex nut, cable nut and
a rubber gasket and cable seal.

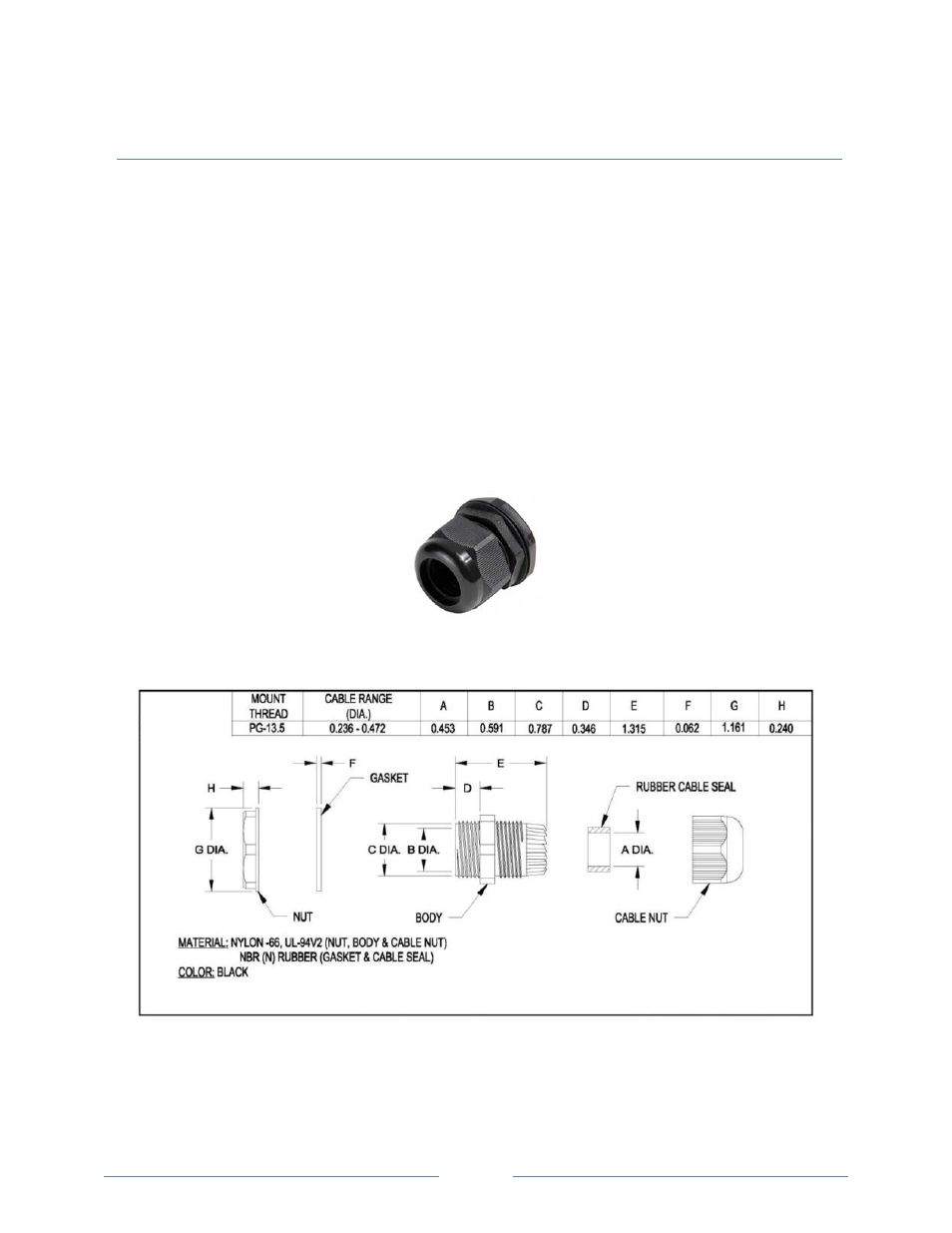

Figure 3-3 IP67 Cable Gland
Figure 3-4 IP67 Cable Gland
