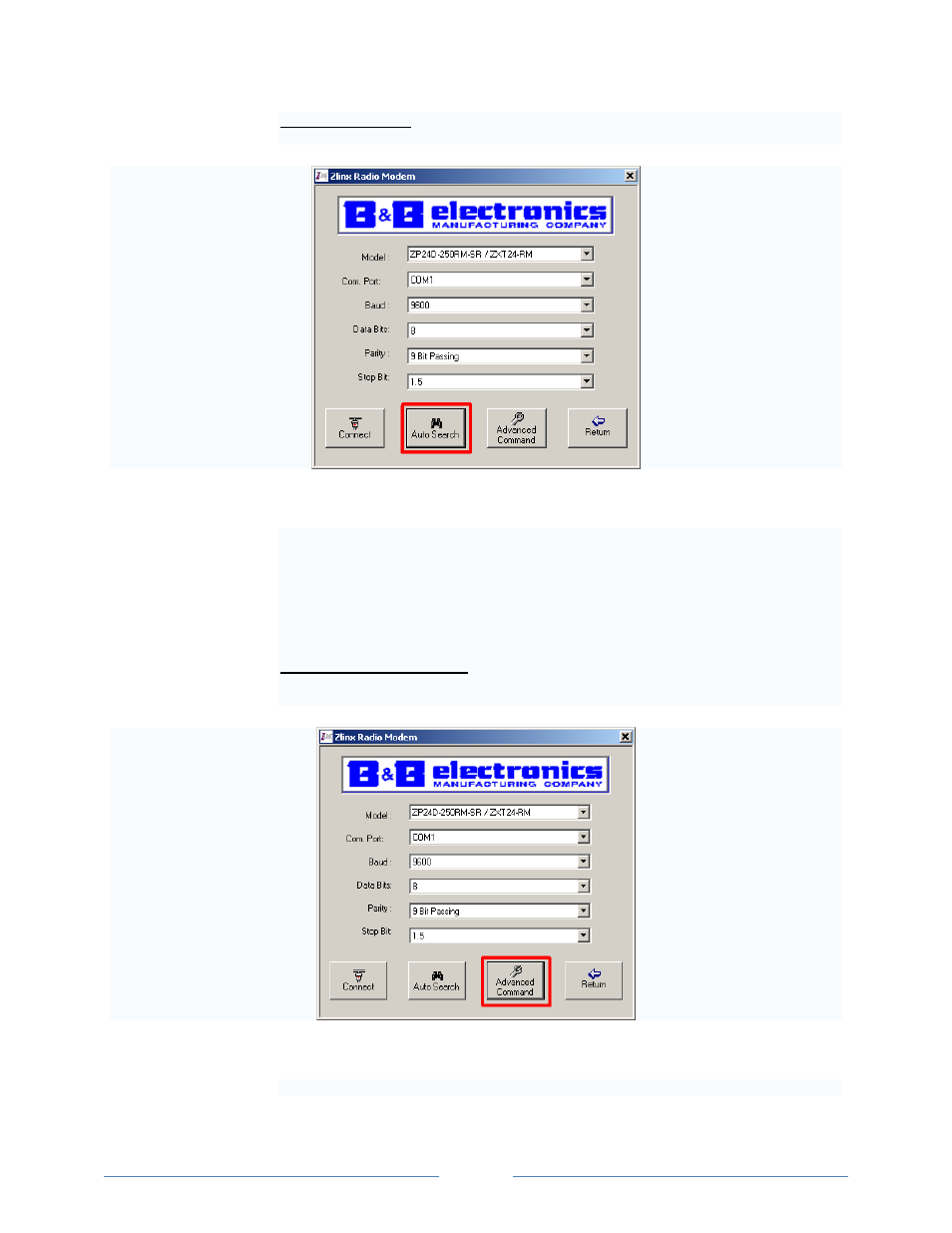

Auto Search Button : The Auto Search Button will search for Zlinx devices connected to a
COM port and connect. This is useful if you do not know the radio modem configuration.
Figure 5-21 Auto Search Button
Your PC will attempt to connect to any radio modem connected. The radio modem search
screen will be displayed (figure 5-18). Click the “OK” button and the manager software will
display the Radio Modem Settings Screen (figure 5-19). If a modem is not attached, the
Radio Modem Not Found screen will be displayed (figure 5-20).
Advanced Command Button : The Advanced Command Button is used to select the
character sequence to enter command mode as well as required “quite times” before and
after the command sequence. It is recommended that you do not change these values.
Figure 5-22 Advanced Command Button
