B&B Electronics OP10 - Manual - Manual (Page 57)

„ Element Number Type: Set the type of element number as oct, dec or hex. For
example: The X,Y elements of TP03 are octal, but the D,T,C elements are decimal.
„ Address Interval ( Increase ): Set interval of two closer elements discretionarily.
„ New Element Amount: The amount of new elements.
„ Start Element Name Number: Set Start Element Name Number.

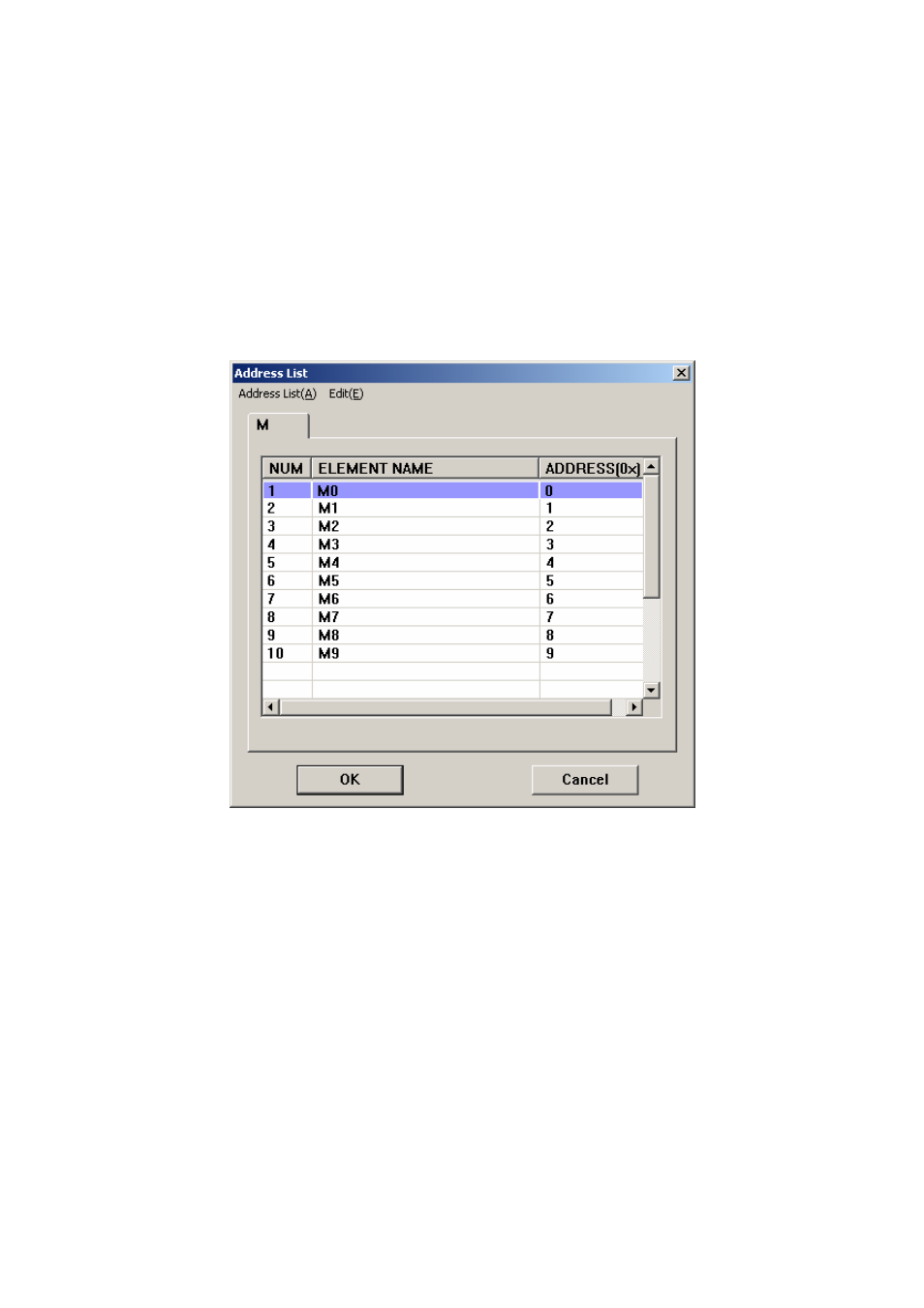

Set M1 as the primal element. The amount of new elements is 9. Its address is 1. Other
attributes are default. Clicking “OK”, The elements in the M group are shown in the picture as
below.
According to the picture, the result of creating elements as a batch is the same as creating a
single element. If there is a certain rule of those elements, we suggest that users can create
elements as a batch.
54
