2.5.10 LED

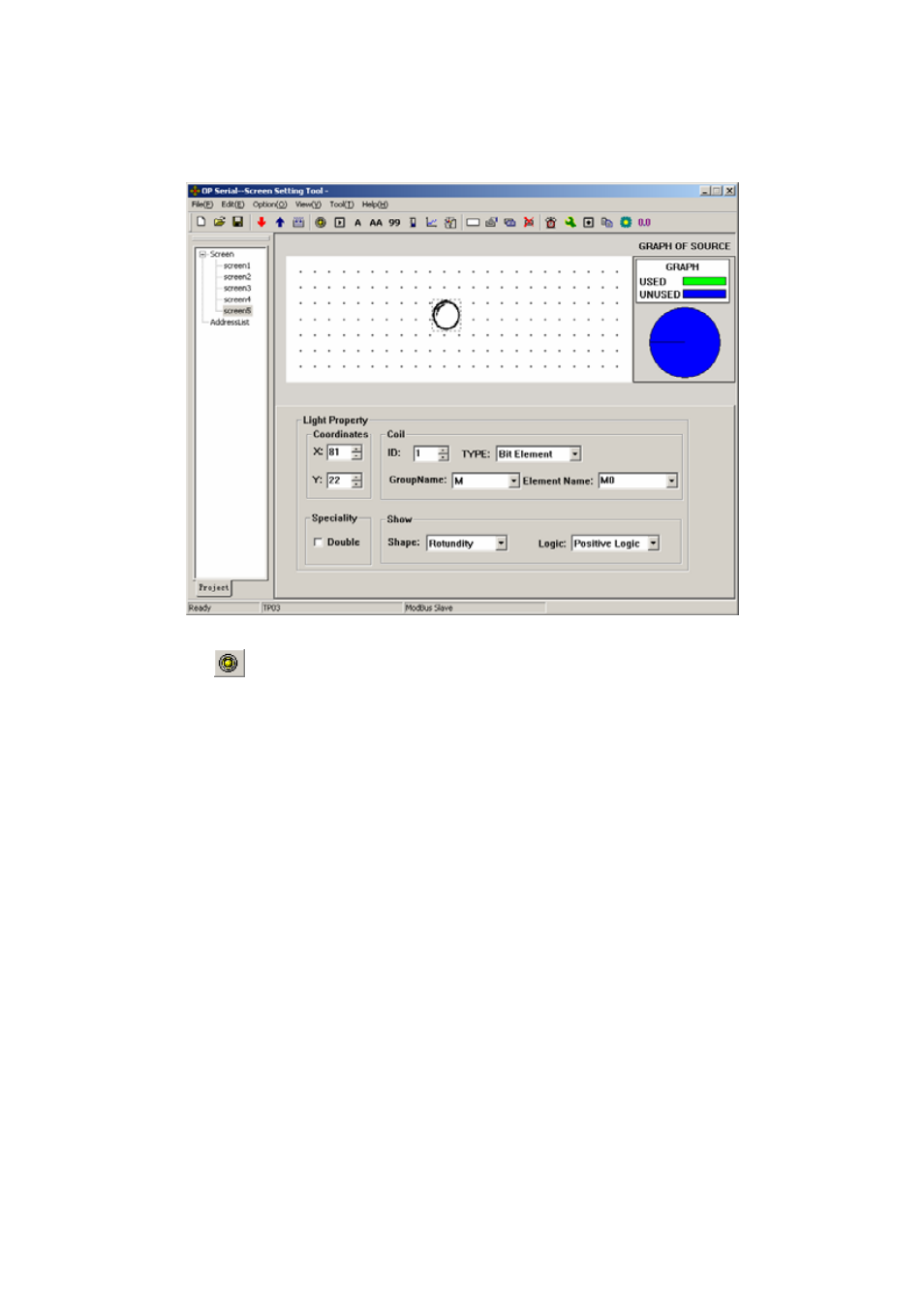

Create a new screen like this:
Press to put a LED. There is a dotted box moving with the cursor in the editing region.
Click the left button in the proper position to locate the LED.
„ Coil
The definition of the PLC intermediate relay that is corresponding to the LED
„ Shape
The shape of the LED, round and square.
„ Positive Logic
The LED is filled when the corresponding intermediate relay is ON. Unfilled when the
corresponding intermediate relay is OFF.
„ Negative Logic
The LED is unfilled when the corresponding relay is ON. Filled when is OFF.
24
