Input other information in the same way.

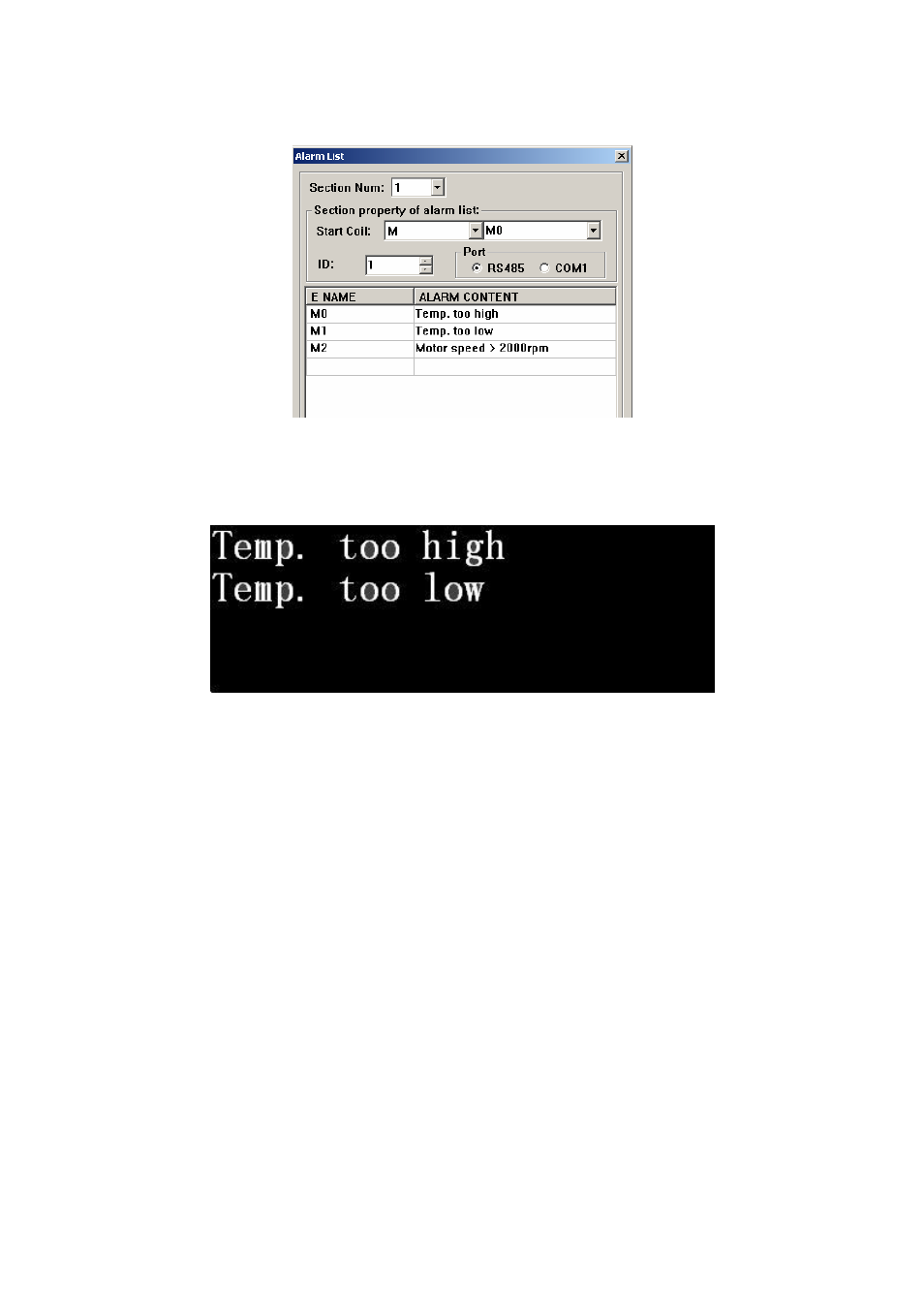

After entering all the information, set the coil type and address to M0 (for example) to
indicate that the relays M0-M2 correspond to three pieces of alarm information.
When OP10 is in gear, if M0 and M1 are set ON, it will pop up an alarm window and display
as the figure below shows:
Seeing this alarm window, the operator can take some measures to solute the breakdowns. To
return to the monitoring window, press [ESC]. When OP10 is displayed a common screen, users
can press [ALM], if they need to inquire about the status of the alarm information of current
destination controller. Then system will jump to the alarm screen.
30
