„ Screen
The key is defined to execute the screen jumping function.
„ Register
The key is defined to set the register parameters.
„ Increase
The value of the destination register will increase an appointed constant in the range of
user-defined.
„ Degression
The value of the destination register will decrease an appointed constant in the range of
user-defined.
„ ID
The station number of PLC
„ Type
When the key is defined to set a switch, the definition number of the PLC relay
corresponding to the switch is determined by the type here.
„ Group name & Element name
Set the address of the relay.
„ Set ON
Set the designated relay on.
„ Set OFF
Set the designated relay off.
„ Reverse
Set the designated relay to be of negative logic.
„ Instantaneous on
The designated relay will be set on when the key is pressed down. When the key is
released, the relay will be set off.
„ Instantaneous off
The designated relay will be set off when the key is pressed down. When the key is
released, the relay will be set on.

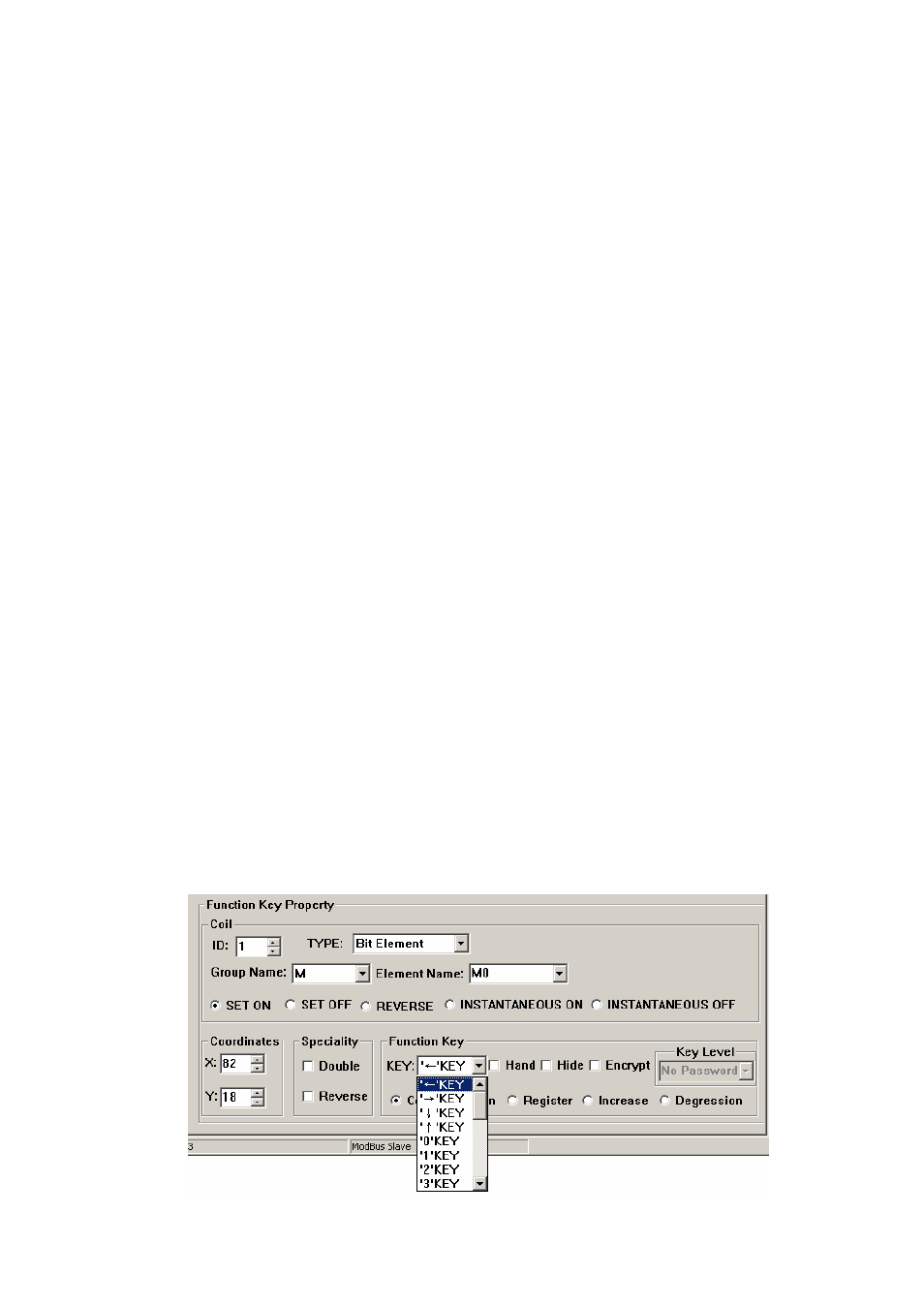

Click the down arrow on the right of the list to show the names of the 24 keys. Select the
proper key to be defined.
16
