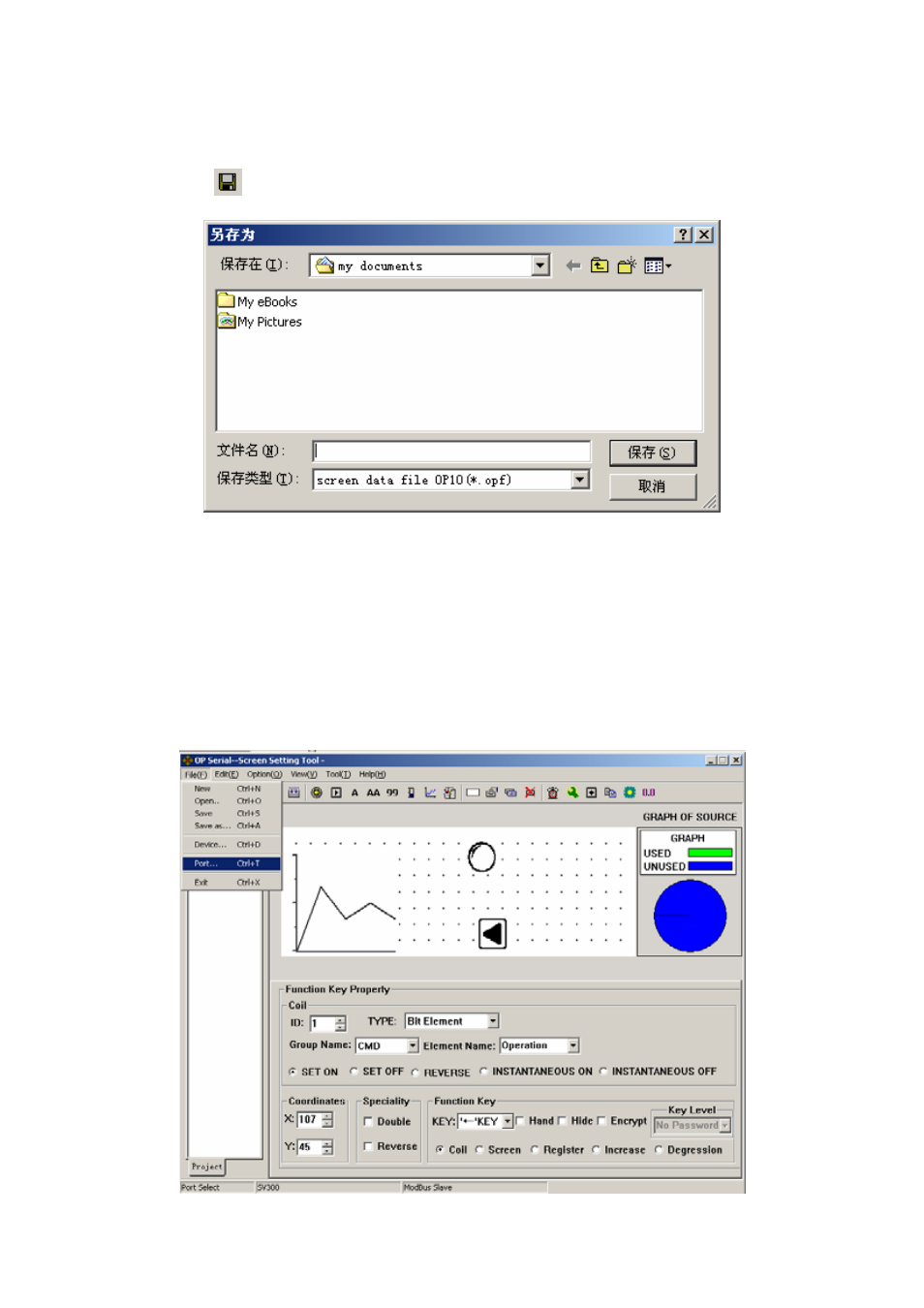

2.6 Save Project

Press

or ckick [File] [Save] to show the save dialog box:

Select the proper path and filename to save the file. The system defines “opf” as the default

external filename.

Enter the filename and select the proper path, then click “Save”.

2.7 Download Window

Connect the 9-pin RS232 serial port of PC and that of OP10 with the communication cable.

Make sure that OP10 is connected with a 24V DC power supply.

Click “File(F)” “Port” to set communication attribute:

38
