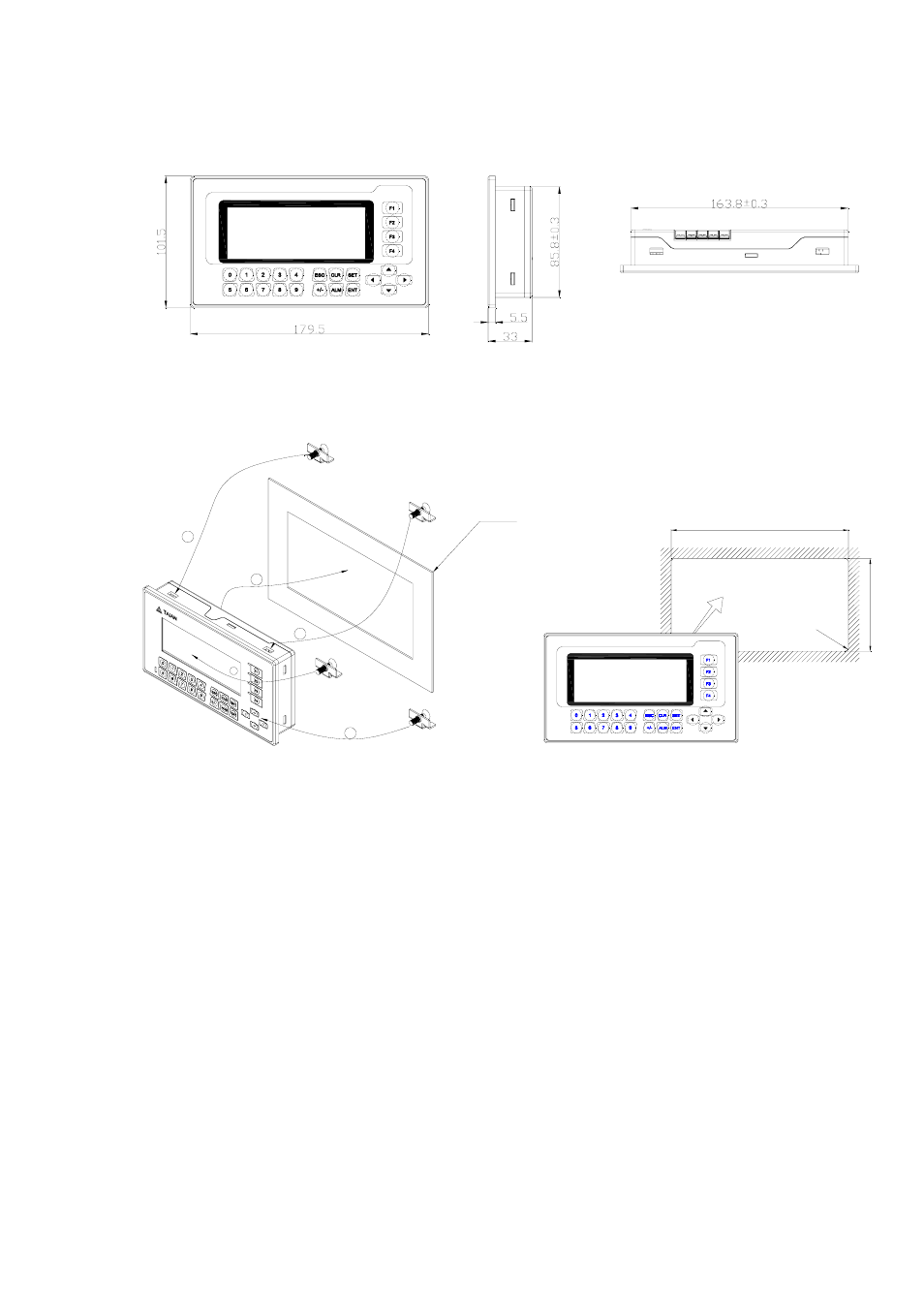

1.3 Dimension

1.4 Installation

2

1

2

2

2

165±0.25

87±

0

.25

R2

±0.5


1.5 Components

1.5.1 LCD

4.3” monochromic display, 192*64 pixels, olivine background.

1.5.2 Keys

On the front panel of OP10, there is a LCD display and 24 thin film switches. The keys have

a good touch feeling, and they are endurable and reliable. Besides being used for the basic
functions, all the 24 keys can be set for local functions or Chief functions.
