H84xx INSTALLATION GUIDE

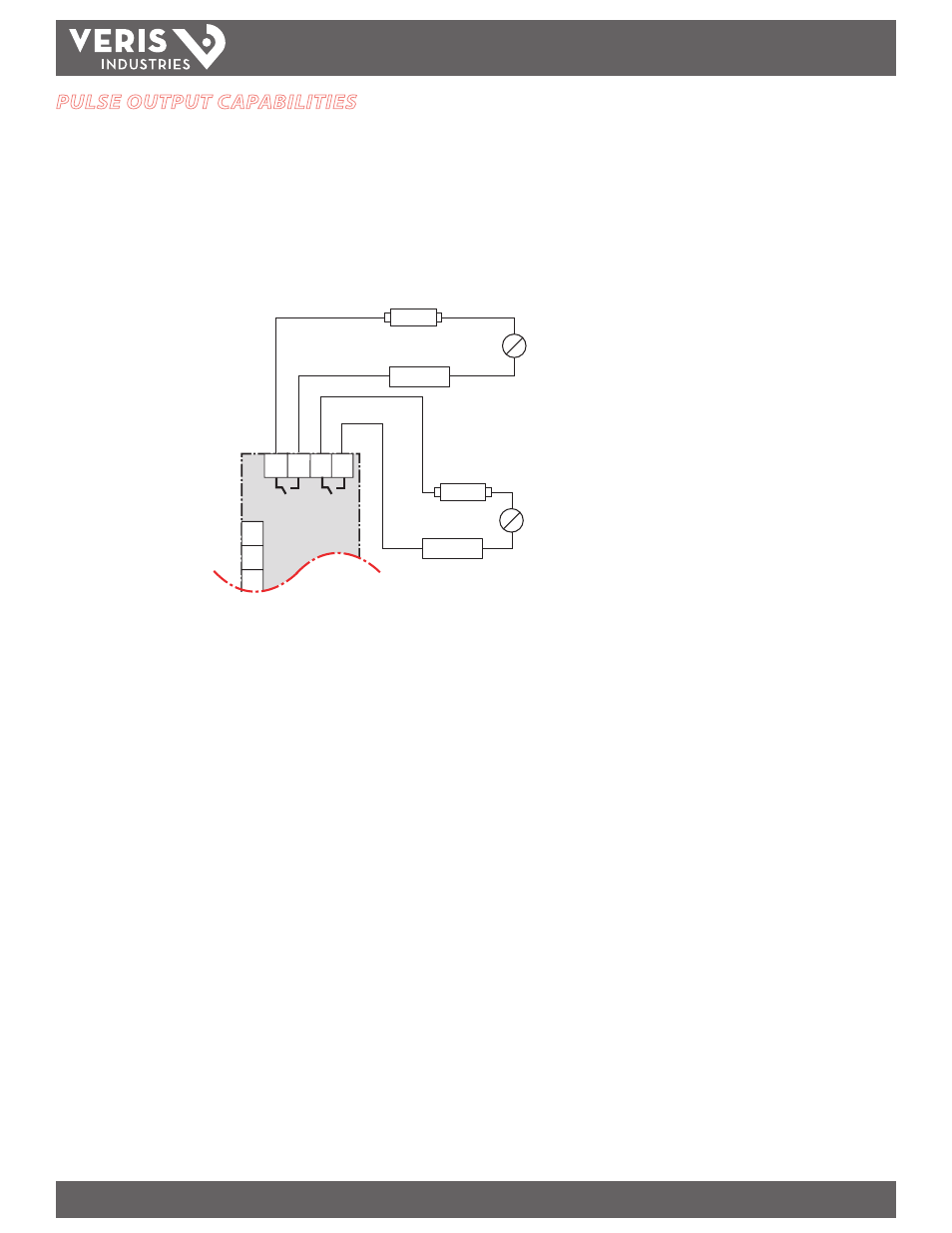

PULSE OUTPUT CAPABILITIES
Solid-state Pulse Output
The H8453 has two normally open solid-state KY outputs. The H8463 has one
normally open KY output and one normally closed KZ solid-state output. One is
dedicated to kWh, and the other is field-selectable for Phase Detect or kVARh. See the
Setup section for configuration information.
≤ 100 mA
~
=
≤ 100 mA
~
=
3
4
5
6
kWh OPTION
kVARh
or
PHASE
7 8 9 10
V1
V2
V3
LOAD
LOAD
*The power source should not be a safety extra low voltage (SELV) circuit. Pulse outputs are not SELV rated.
Digital Output/Pulse Output is a solid state
pulse output rated for 240VAC/DC max.
Maximum load current is 100mA at 25°C.
Derate 0.56mA per °C above 25°C.
Power Source
3-240VDC
6-240VAC
Power Source
3-240VDC
6-240VAC
Over-current Protective Device
(not supplied)
The over-current protective device
must be rated for the short circuit
current at the connection point.
H8453
(on H8463, the optional output is normally closed)
