H84xx

INSTALLATION GUIDE

3-PHASE SYSTEM

4
3
3

SYS

Wire

PASSWORD SETUP

00000

DIAG.

RESET

MIN.MX

00000

SETUP

SELECT MODE

IEEE

IEC

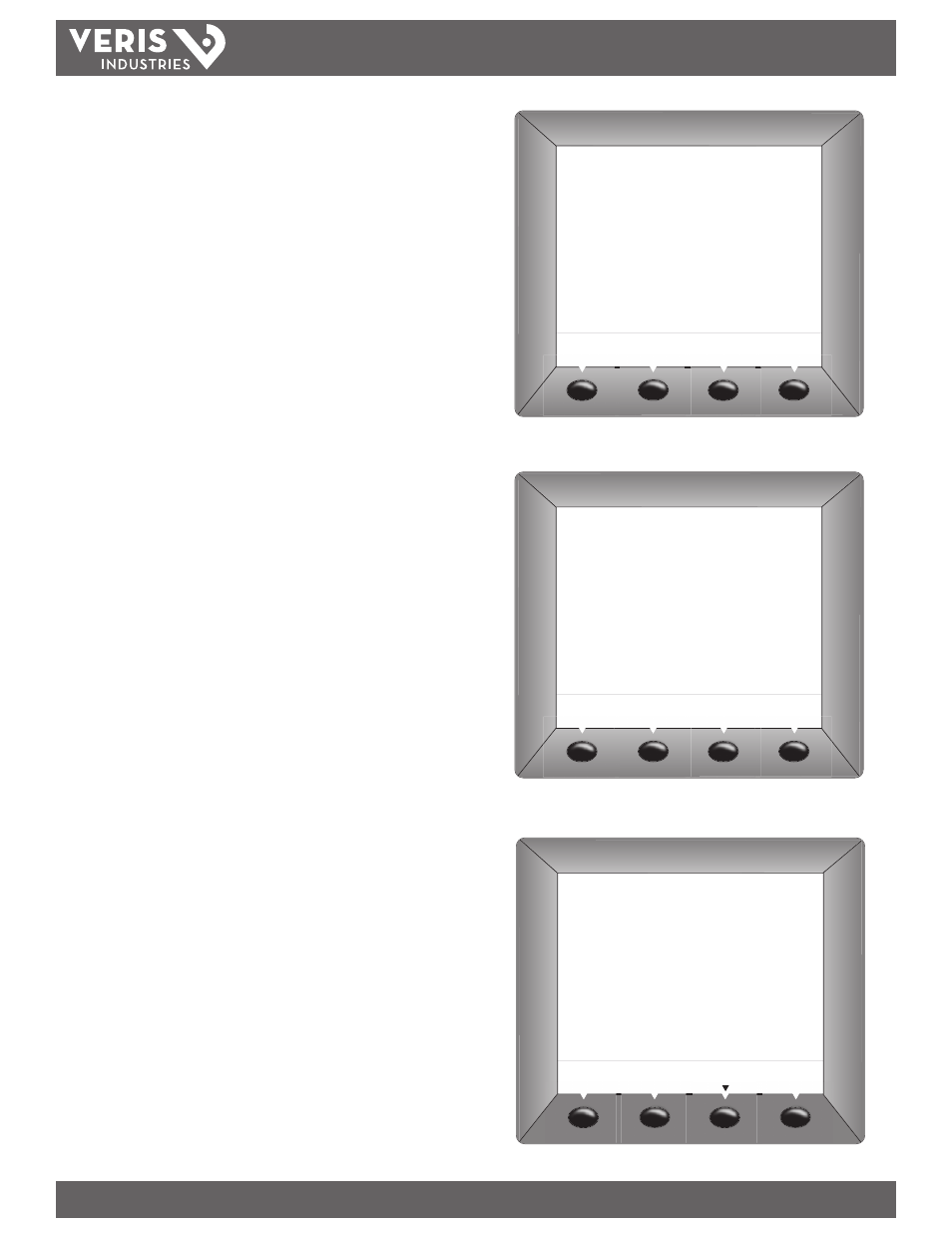

Set Up the Meter System Type

1. Press -----> until SYS is visible.

2. Press SYS.

3. Press + to select the SYS (system type): 10, 11, 12, 30, 31, 32, 40, 42, 44. NOTE: See

Wiring section for a description of the system types.

4. Press OK.

Set Up the Passwords

NOTE: The default passwords are 00000.
1. Press -----> until PASSW (password) is visible.

2. Press PASSW.

3. Press + to change a digit in the SETUP password, <----- to select the next digit.

NOTE: This sets the password to enter the Setup Menu or change SETUP via
Modbus.

4. Press OK.

5. Enter the RESET (password to reset the power meter) password. NOTE: This sets

the password required to reset stored values such as kWh via the local RESET
menu or remotely via Modbus (if so equipped.)

6. Press OK to return to the SETUP MODE screen.

Select the Display Operating Mode

1. Press -----> until MODE is visible.

2. Press MODE.

3. Press IEEE or IEC. NOTE: IEEE mode uses W/VA/VAR terminology. IEC mode uses

P/Q/S.

4. Press 1; to return to the SETUP MODE screen.
