H84xx INSTALLATION GUIDE

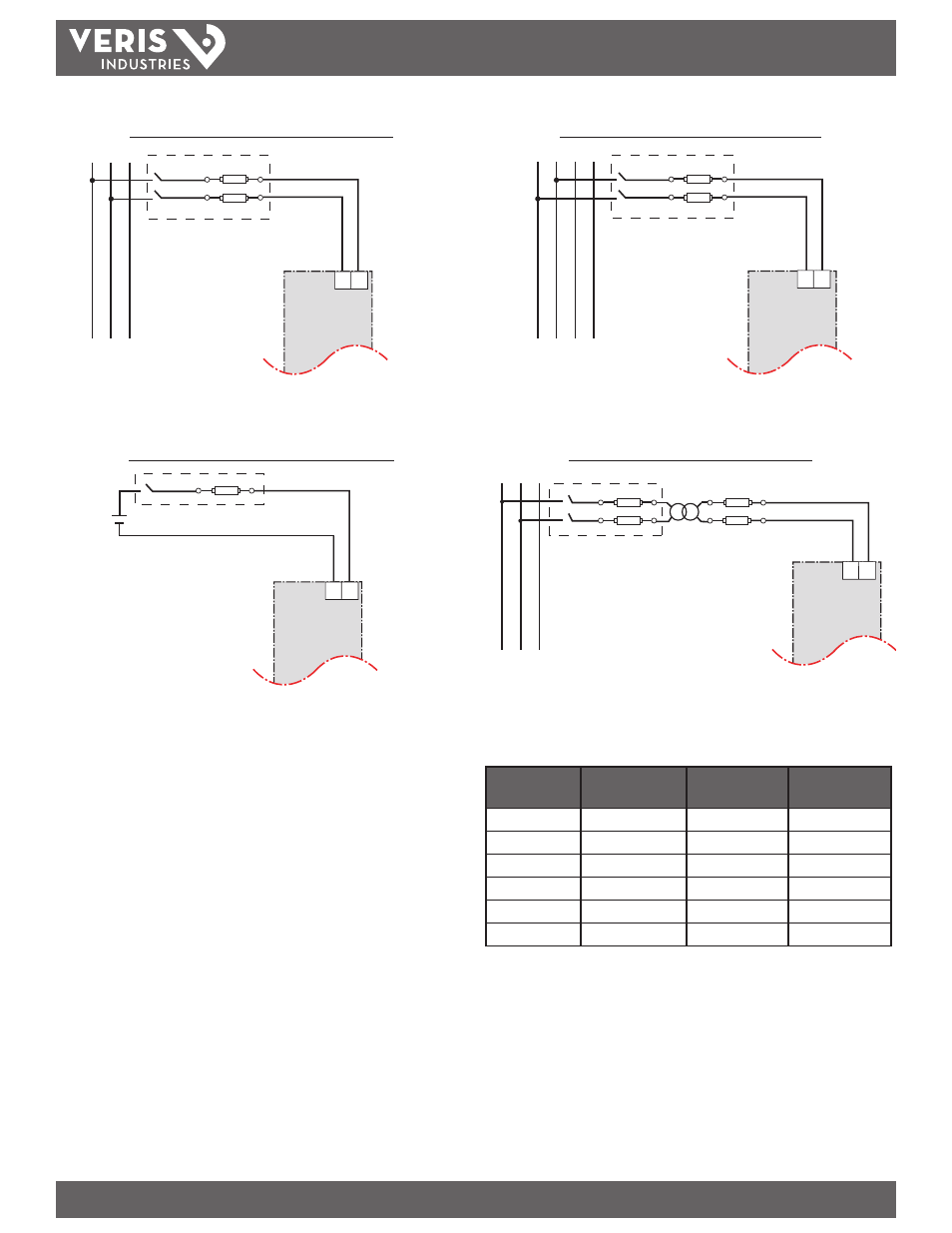

Direct Connect Control Power (DC Control Power)
L1 L2 L3 N
1 2
L1 L2 L3 N
1 2
L1 L2 L3
1 2
Direct Connect Control Power (Phase to Neutral)
• Phase to Neutral only when voltage <415+10% VAC max.
• See Table below.
1 2
Control Power Transformer (CPT) Connection
Fuse Recommendation
1. To avoid distortion, use parallel wires for control power and voltage inputs. Keep
the fuse close to the power source.
2. Use with 480Y/277V and 208Y/120V systems.
3. For an open delta PT connection with 120V L-L secondaries, use system type 31.
NOTES:
Place over-current protection as close to the device as possible.
For selecting fuses and circuit breakers other than those listed above, use the following criteria:
• Rate over-current protection as listed above.
• Select current interrupt capacity based on the installation category and fault current capability.
• Select over-current protection with a time delay.
• Base the voltage rating on the input voltage applied.
• If a 0.25A fuse is not available with the required fault current capability, use a fuse rated at a maximum of 0.5A.
Direct Connect Control Power C (Phase to Phase)
• Phase to Phase only when voltage <415 +10%VAC max.
• See Table below.
• Control Power Transformer 120 or 240VAC. Secondary 50VA max.
• See Table below.
Control Power
• DC Control Power 100 VDC
• See Table below.
Control Power
Source
Source Voltage
(V)
Fuse Fuse Amperage
(mA)
CPT Vs < 125V FNM or MDL 250
CPT 125 < Vs < 240V FNQ or FNQ-R 250
CPT 240 < Vs < 305V FNQ or FNQ-R 250
Line Voltage Vs < 240V FNQ-R 250
Line Voltage Vs > 240V FNQ-R 250
DC Vs < 300V LP-CC 500
