H84xx INSTALLATION GUIDE

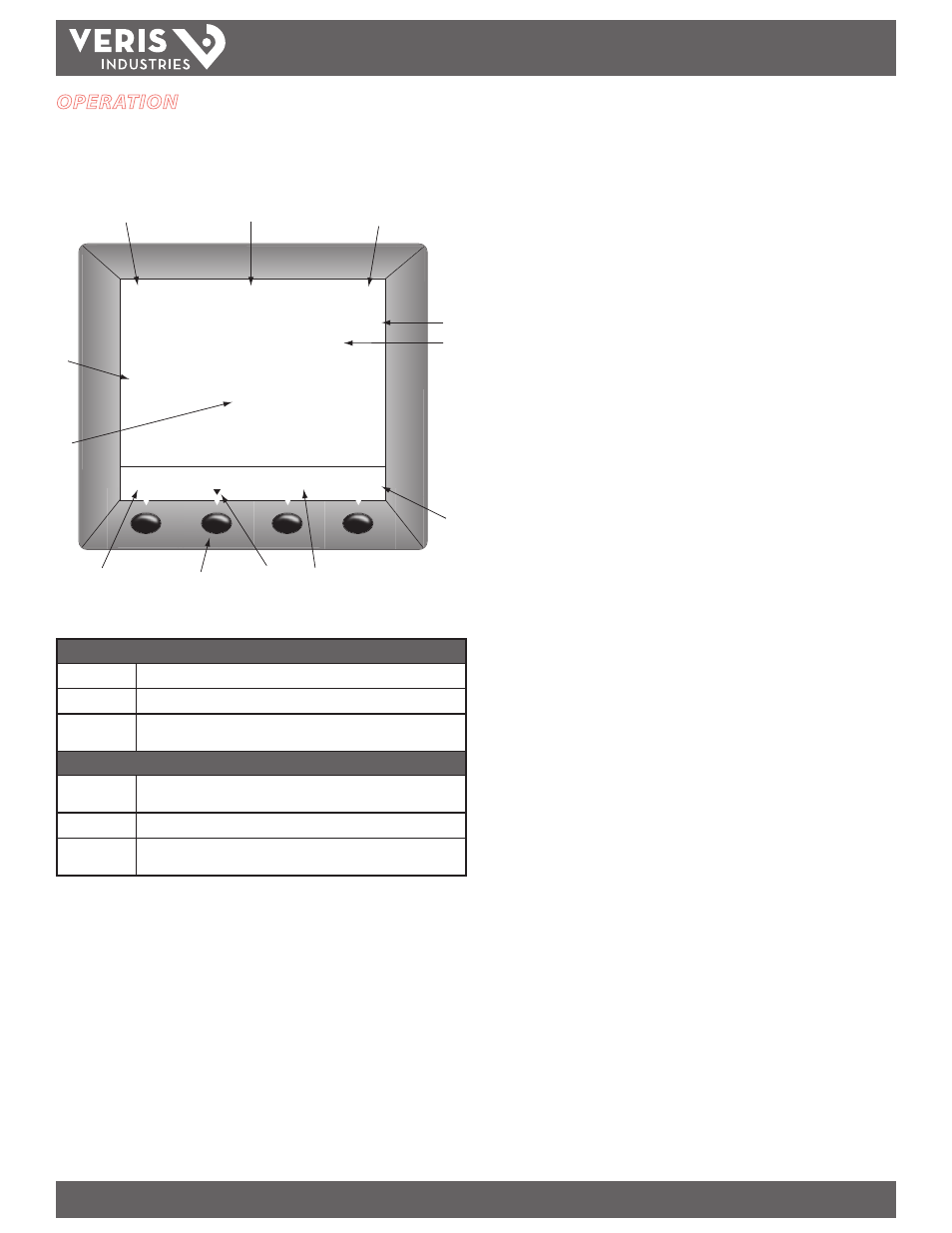

Power Meter Display
A. Type of measurement
B. Screen Title
C. Maintenance icon
D. Bar Chart (%)
E. Units
F. Display more menu items
G. Menu item
H. Selected menu indicator
I. Button
J. Return to previous menu
K. Values
L. Phase
OPERATION
Operating the Display
The power meter is equipped with a large, back-lit LCD display. It can display up to
five lines of information plus a sixth row of menu options.
PHASE
MAX DEMAND
1
1; DMD
265
275
268
2.4
{{{{{}}}}}}
A
A
A
! &
2
3
N
I
A
{{{{{}}}}}}
{{{{{}}}}}}
10 50 100
10 50 100
10 50 100
%
A B
C
D
F
G H J
K
L
I
E
<-
Button Symbols
Navigation
------- View more menu items on the current level.
1; Return to the previous menu level.
 Indicates the menu item is selected and there are no menu levels below
the current level.
Change Values
 Change values or scroll through the available options. When the end of a
range is reached, press + again to return to the first value or option.
------- Select the next number of a series.
 Move to the next editable field or save the changes and exit the screen if
the last editable field is selected.
Note: Changes are automatically saved.
