VERIS INDUSTRIES
™
H8822
INSTALLATION GUIDE
ZL0056-0C PAGE 2 ©2010 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 06101
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

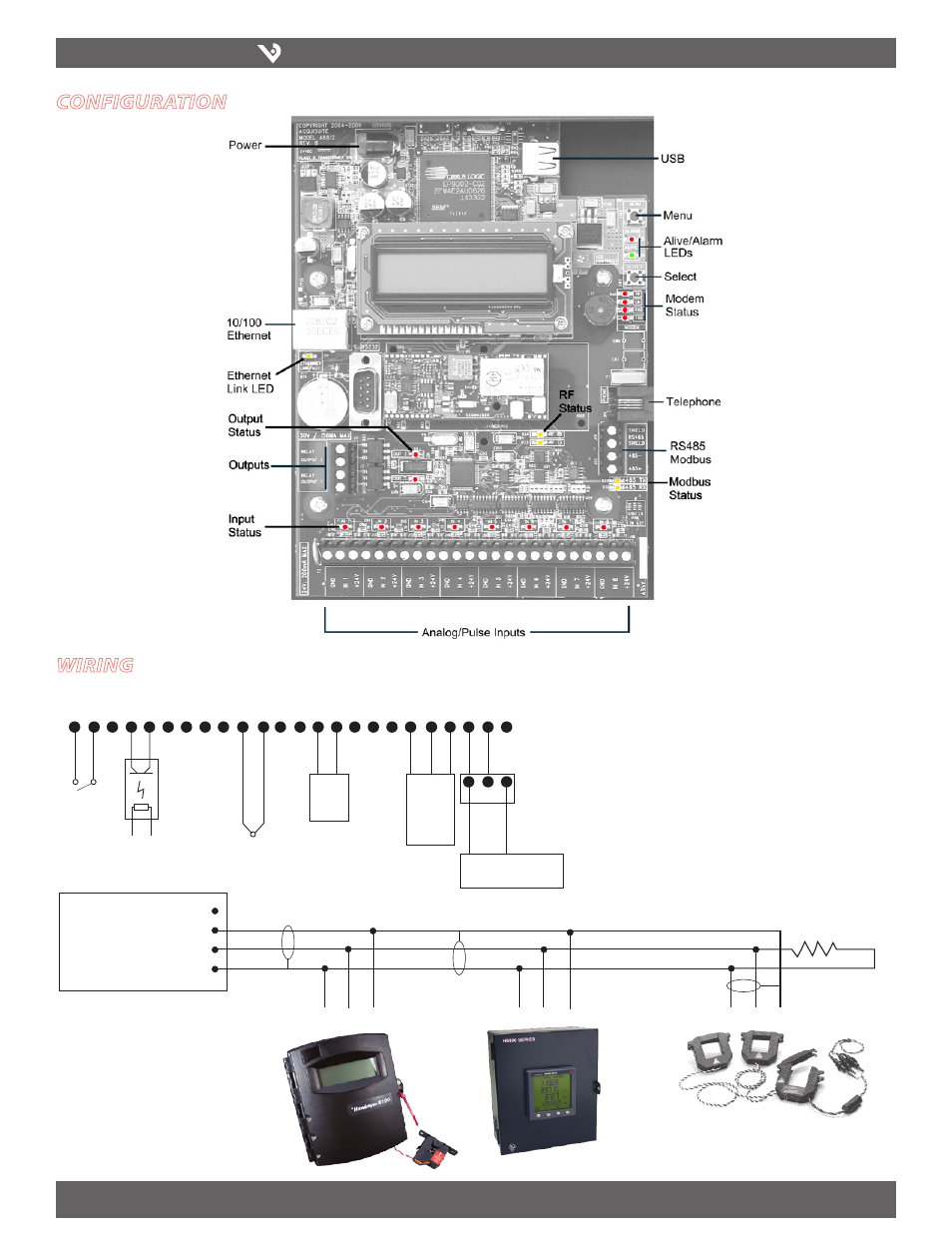

confiGuration
GND Input 1 + 24V GND Input 2 + 24V GND Input 3 + 24V GND Input 4 + 24V GND Input 5 + 24V GND Input 6 + 24V GND Input 7 + 24V GND Input 8 + 24V
Dry Contacts
Opto-isolator
2-Wire
4-20mA
3-Wire
0-10V
4-20mA
- OUT +
- OUT +
- +
External Power Supply
- +
External Power Required
for high-current (>200mA)
Analog Devices
3-Wire, 0-10V, 4-20mA
Thermistor
wirinG
+ - s + - s + - s
Shield
Shield
RS-485 –
RS-485 +
AcquiSuite
H8822
Shield
Black
Red
Twisted Pair
Termination Resistor
150 Ohm
