INTRODUCTION
The non-heated or electrically heated M&C dilution unit DIL-1 /(H) is used in the analysis technique
whereever the measuring method or the handling of the process gas requires a dilution of the sample
gas or the components to be measured. Examples are the measurement of extremely toxic gases, the
determination of the gas moisture or emission measurement.
The M&C dilution unit is based on the functional dilution technique which is proved since years in the
M&C gas sample probe SP2000-H/DIL.
For further information or personal advice, we have pleasure to be at your disposal. Further you may
contact our internet pages with our complete product catalogue under:
7
APPLICATION
The following illustrations show versions DIL-1 and DIL-1/H.
Depression
manometer*
300
280
Sample gas in*
(non diluted)
Test gas*
in
Bypass gas
in*
Option I
Bypass out*
(diluted)
205
180
Ø6mm
95
Option II
Sample gas out*
(diluted)
Sample gas
out**
(non diluted)
Dilution gas
in*
*
Tube connection 6mm ( 1/4“ on request)
**
Tube connection 8mm ( 3/8“ on request)

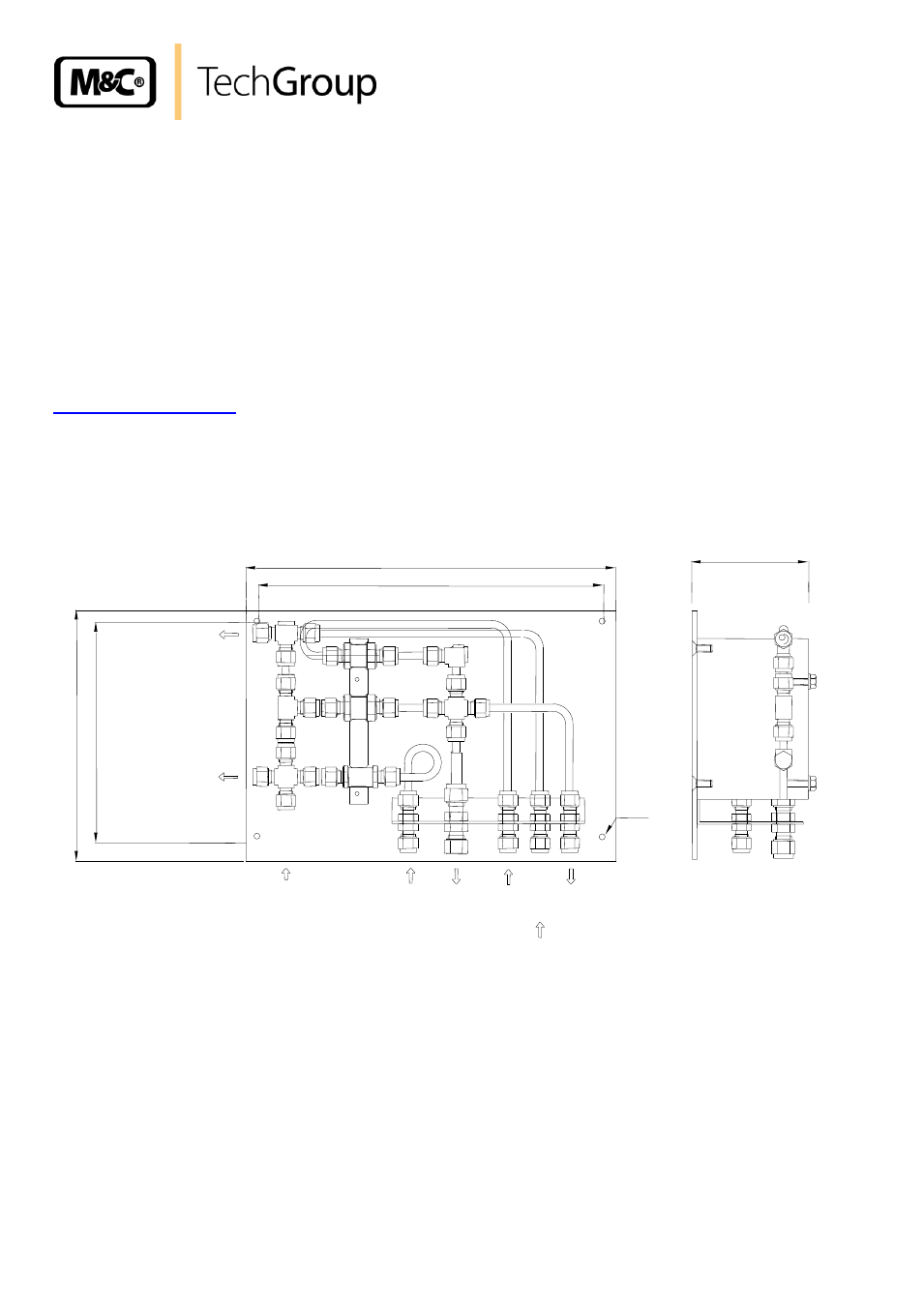

Figure 1
Dilution unit DIL-1
