M&C TechGroup PMA 100 Operator's manual - Manual (Page 7)

9-3.12-ME M&C Products Analysentechnik GmbH
- 7 -
7.3 Dimensions and weight
The analyser is build in a 19” housing, also suitable for
table mounting. Fig. 5 shows the dimensions of the
PMA100. Please take additional 60mm fitting-depth into
consideration when installing the analyser.
The weight of the analyser is approx. 11 kg.
7.4 Front panel
The following figure shows the front panel of the oxygen
analyser PMA100.
You can see the double-lined LCD display 1 , the alarm
LED 2 , the flowmeter with needle valve 3 , status LEDs
4 and the six operating keys 5 .
The sample flow can be adjusted at the needle valve in a
range of 25-60Nl/hr.
The control panel refers to NAMUR standard and is
devided into:
• Select key
• Enter key
• Direction key
⇑⇑⇑⇑⇑
• Direction key
⇓⇓⇓⇓⇓
• Cal key
• Measuring key
(for more functional description see chapter 12)

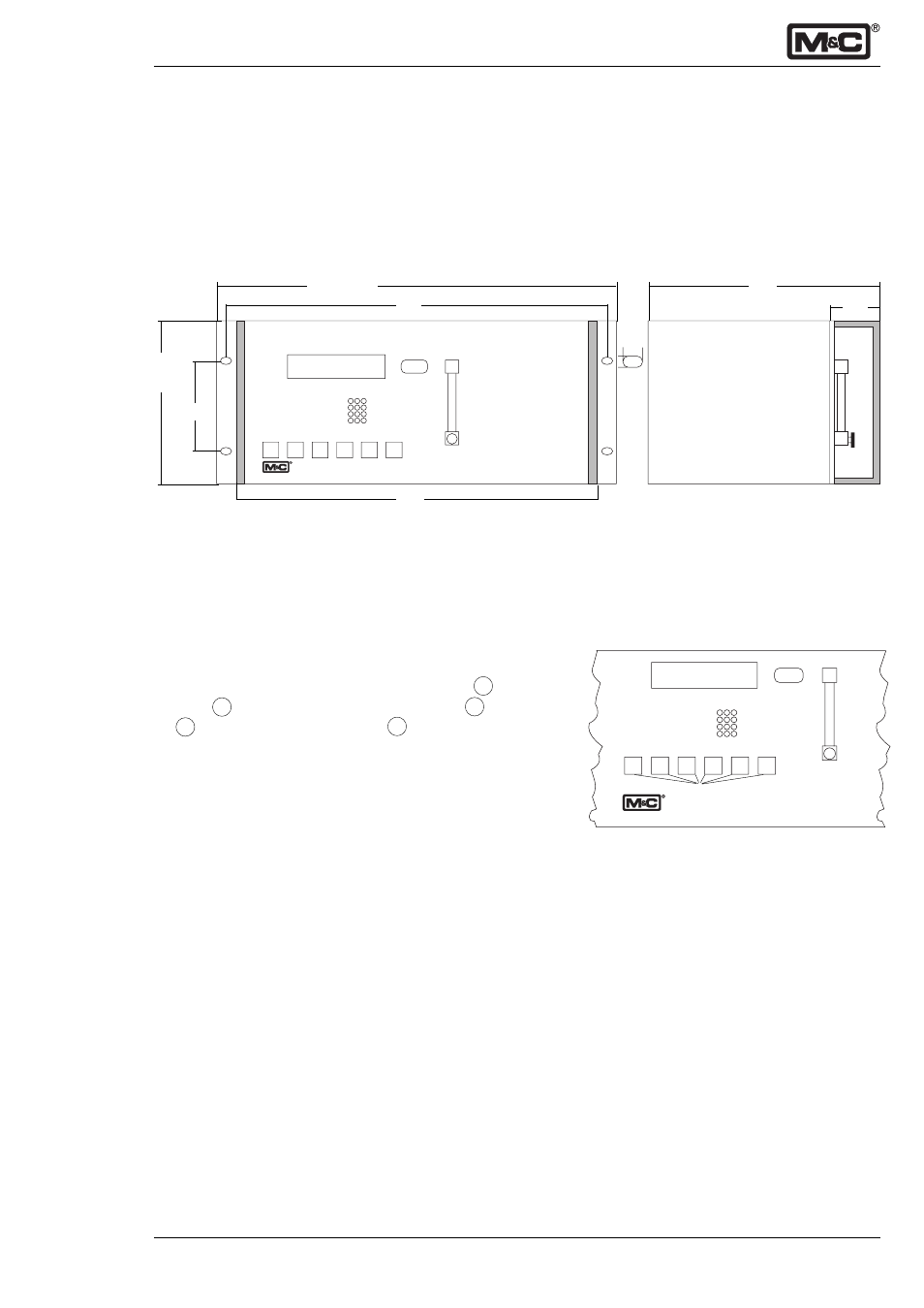

Fig. 5: Dimensions of the PMA100
Fig. 6: Front panel with display, operating keys
and flowmeter
20,9 V0l.% O
2
1010 mbar
Selec Enter ⇑ ⇓ Cal Meas
Alarm
PMA100 O
2
-analyser
465
483
(84HP)
440
10
7
341
50
20,9 V0l.% O
2
1010 mbar
Alarm
PMA100
⇑ ⇓
102
177
(4U)
1
2
3
4
5
