Issue 5.6.D IPDirector Version 5.6 – User Manual – Part 6: Playout – Playlist Panel
EVS Broadcast Equipment – May 2009
2
1.2 USER INTERFACE
1.2.1 O
PENING
A P
LAYLIST
P
ANEL
To open a Playlist Panel, click the Playlist Panel button on the Main Toolbar.
The Playlist Panel window will populate but it will be dimmed and only the
Channel Name field, the Playlist Name field and the LSM ID field will be
available.
1.2.2 O
VERVIEW OF THE
P
LAYLIST
P
ANEL
P
LAYLIST
P
ANEL
O
UTLINE

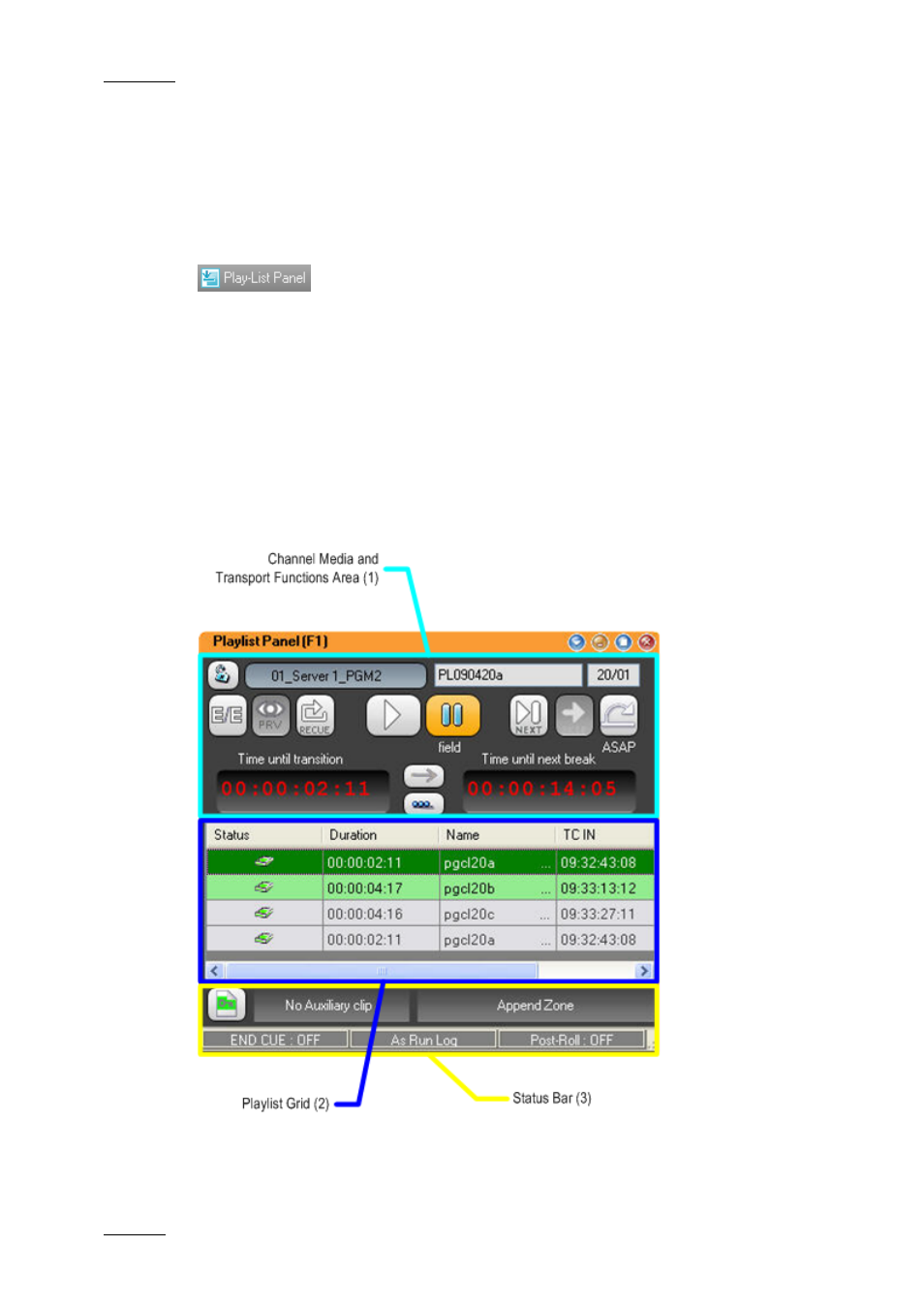

The Playlist Panel window is resizable vertically and horizontally. It contains three
main areas highglighted in the screenshot below:
