Issue 1.0.D

INSIO Version 1.0 – User Manual

EVS Broadcast Equipment – October 2009

5.3 RECORDING MEDIA

5.3.1 I

NTRODUCTION

Recording a sequence will be possible via the Record tab of the Record/Review

window. Users are enabled to select the cameras which will record a take and to
select the cameras angles which will be kept for the transfer of a take.

Time can be saved by using automatic functions to save, transfer and/or review
clips.

The recording of a stream is performed from this tab as well.

5.3.2 O

VERVIEW OF THE

ECORD

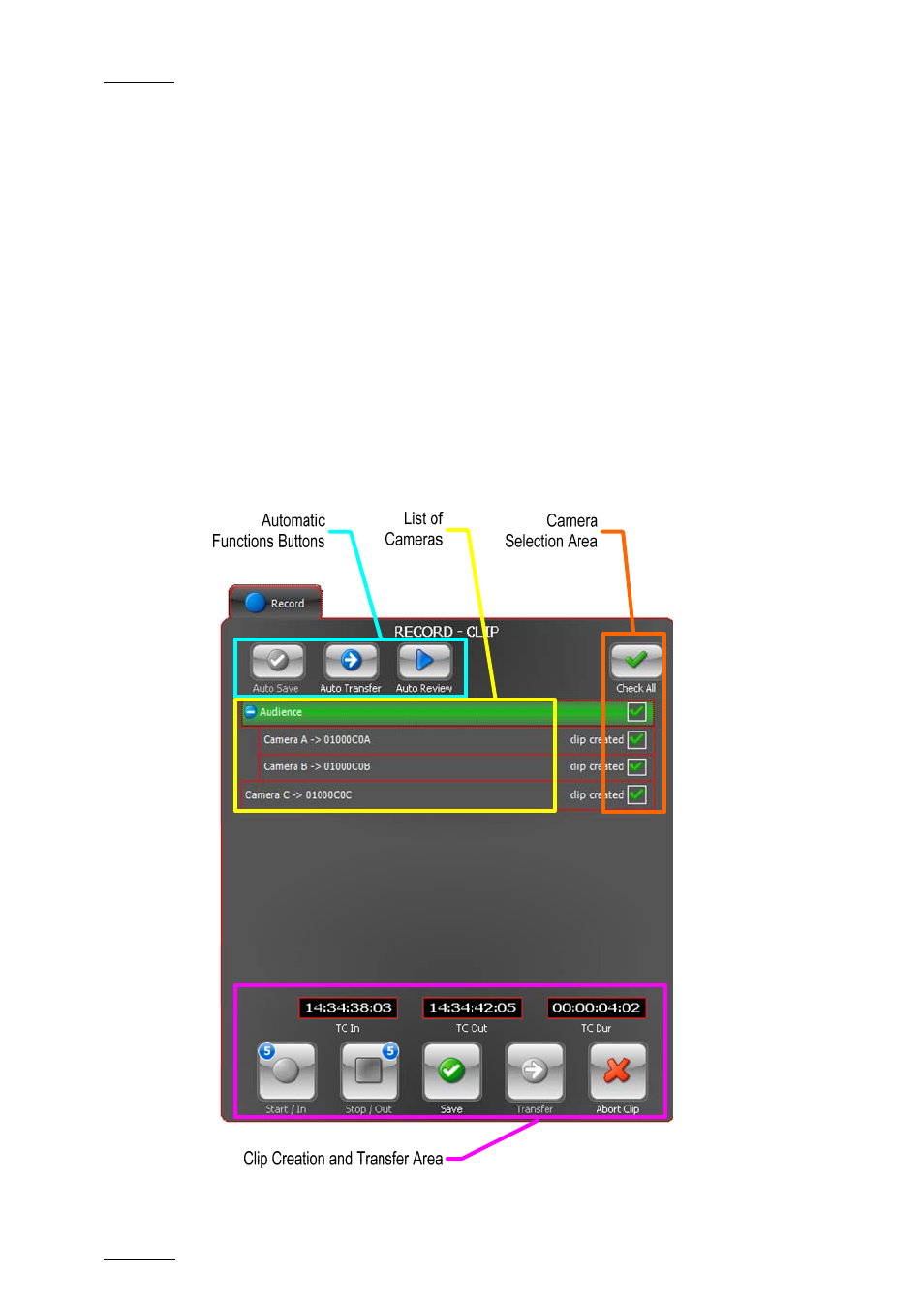

When the active mode is set to clip, with Review and Transfer options, in Setup >
User > General, the Record tab looks like the following screenshot:
