3.1.2 O
VERVIEW OF THE
S
ETUP
W
INDOWS

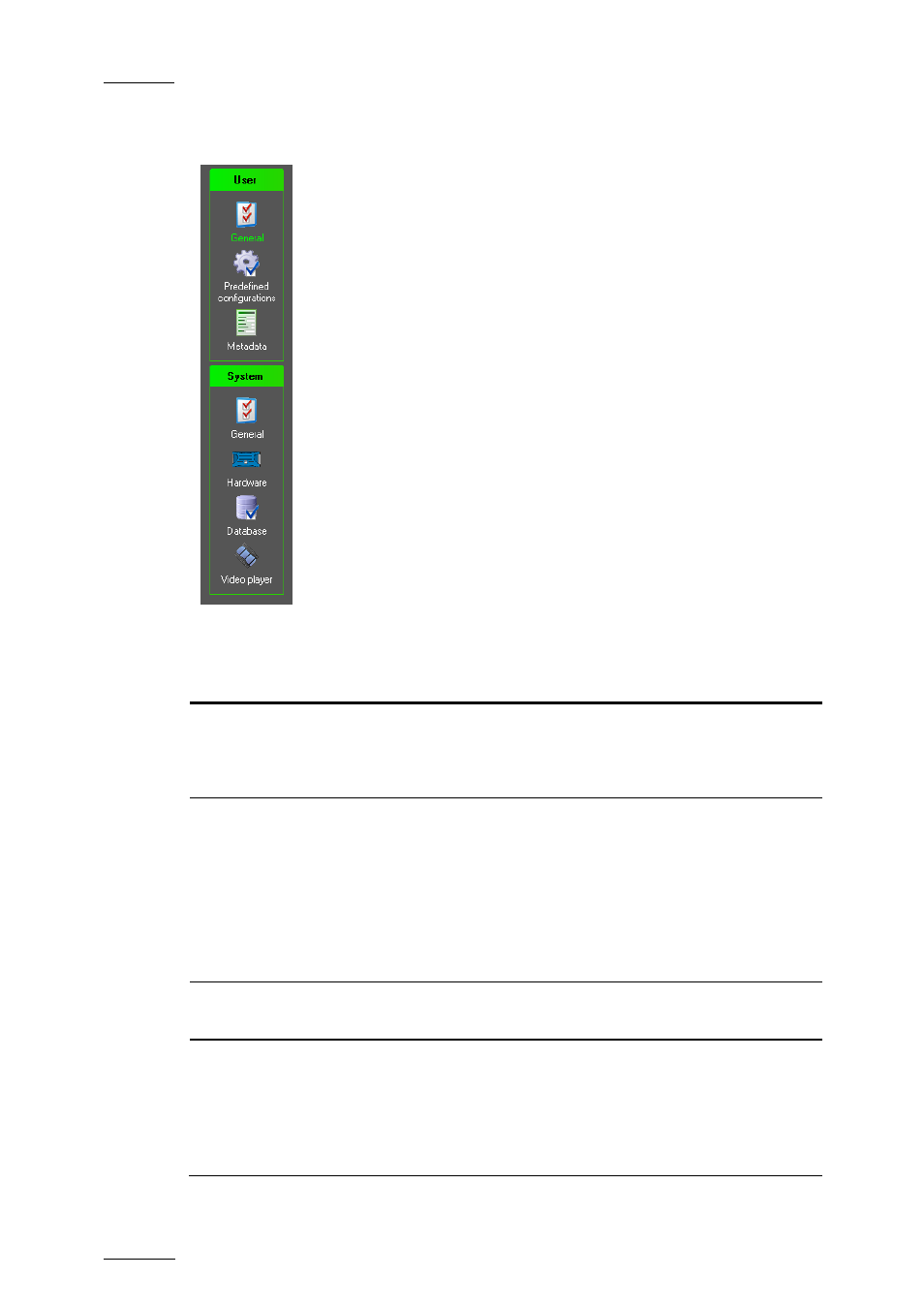

When you press the System Setup button, the first Setup
window, out of seven, is displayed. The other Setup windows
can be accessed selecting an option on the left pane of the
window.
The following table briefly explains the windows which can be accessed by clicking
the corresponding button:
Button Description of the Corresponding Window
User - General Allows the selection of the active mode, i.e. the windows
which will be displayed on the interface, to define
whether streams or clips will be recorded, or whether the
Review only mode will be enabled.
User - Predefined
Configurations Allows the user to define pre-defined configurations:
• recording: selecting recorder channels available from
each EVS server present on the network; giving a
camera name to each recorder;
• reviewing: selecting playback channels;
• transferring: defining transfer destinations and
selecting file format for transferred files.
User - Metadata Allows the user to define metadata columns for additional
information.
System - General Allows the user to define general system functions
relative to
• timecode fields position and jog wheel default option in
the Review window,
• the use of guardbands for the recorded clips,
