INSIO Version 1.0 – User Manual
EVS Broadcast Equipment – October 2009
Issue 1.0.D
25
3.3.2 H
ARDWARE
S
ETTINGS

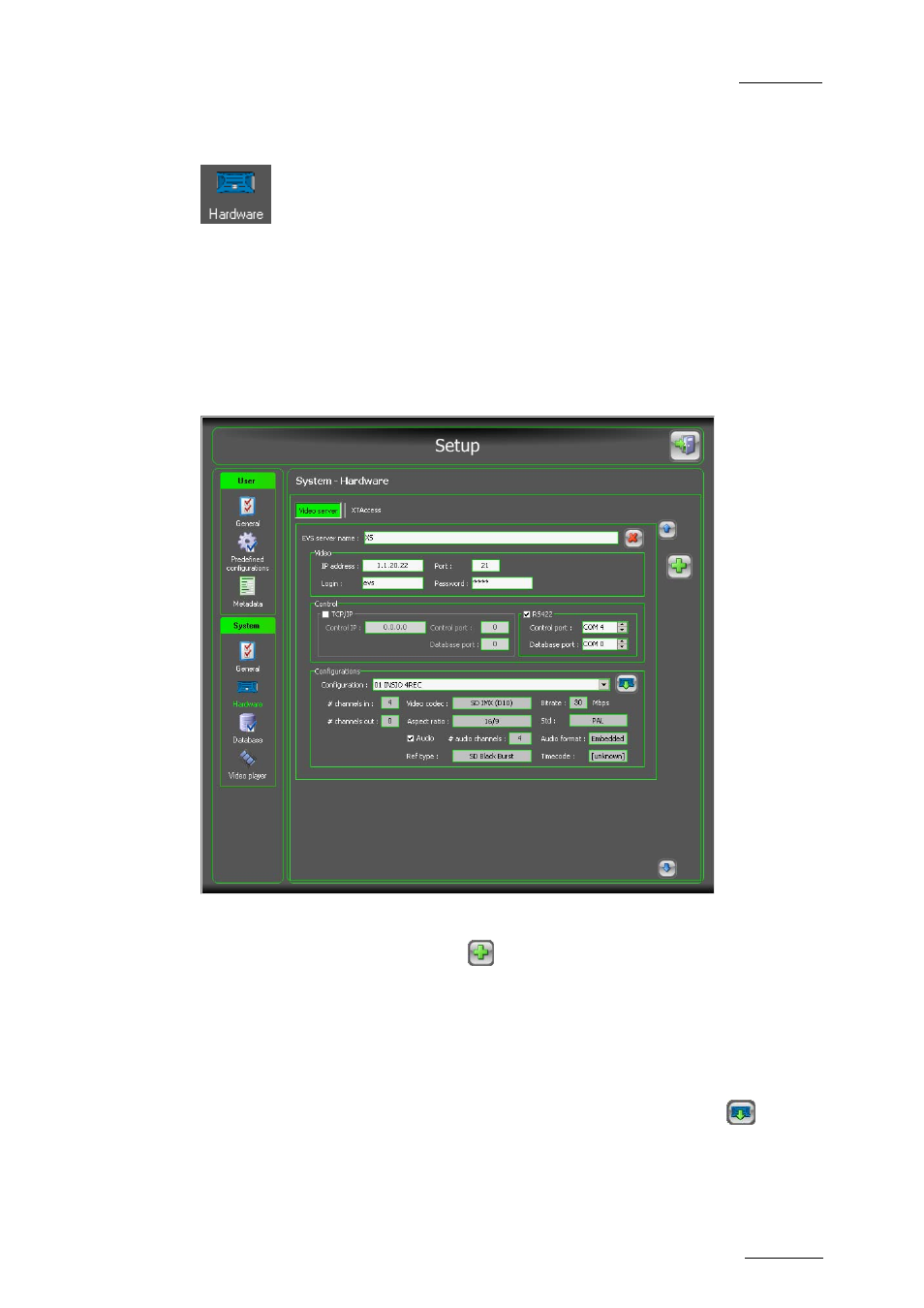

This section is available when the user presses the System Hardware
Settings button on the left pane.
Two tabs are available: one for EVS servers configuration, one for XTAccess
configuration.
V
IDEO
S
ERVER
This window is used to specify EVS servers’ configuration. Refer to the XS
Software Technical Reference and XT Software Technical Reference manuals for
more information.
To select a server, proceed as follows:
1.
Press the Add Video Server button to add an additional server to your
configuration.
2. Enter a server name in the EVS Server Name field.
3. Complete each field of the Video and Control group boxes with the selected
server parameters.
4.
In the Configuration field, press the Get Server Configuration button.
5. Select a configuration from the Configuration list.
