Defining Access Control Lists
81

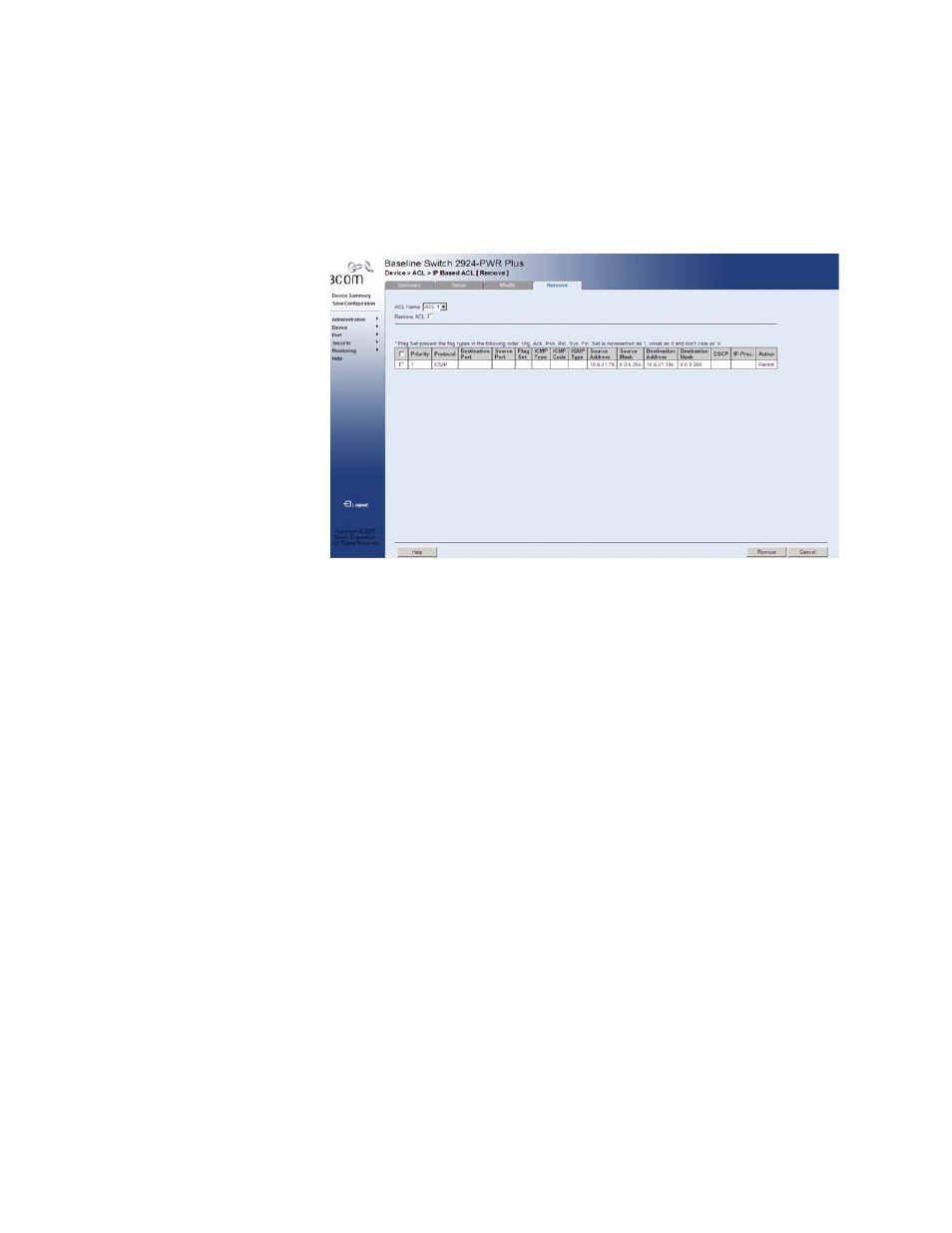

Figure 34 IP Based ACL Remove Page
The IP Based ACL Remove Page contains the following fields:
■
ACL Name — Selects an ACL name from a list of the IP-based ACLs.
■
Remove ACL — Enables the ACL to be removed.
■
Checkbox (unnamed) — When checked, selects the rule for removal.
The top checkbox is used to select all rules for removal.
■
Priority — Indicates the ACL priority, which determines which ACL is
matched to a packet on a first-match basis. The possible field values
are 1-2147483647.
■
Protocol — Indicates the protocol in the rule to which the packet is
matched.
■
Destination Port — Displays the TCP/UDP destination port.
■
Source Port — Displays the TCP/UDP source port to which the ACL is
matched.
■
Flag Set — Indicates the TCP flag matched to the packet.
■
ICMP Type — Indicates the ICMP message type for filtering ICMP
packets.
■
ICMP Code — Indicates the ICMP message code for filtering ICMP
packets. ICMP packets that are filtered by ICMP message type can also
be filtered by the ICMP message code.
■
IGMP Type — Indicates the IGMP message type filter.
