Defining Access Control Lists 73
Monitor users have no access to this page.
To configure IP-based ACLs:
Click Device > ACL > IP Based ACL > Setup. The IP Based ACL Setup
Page opens:

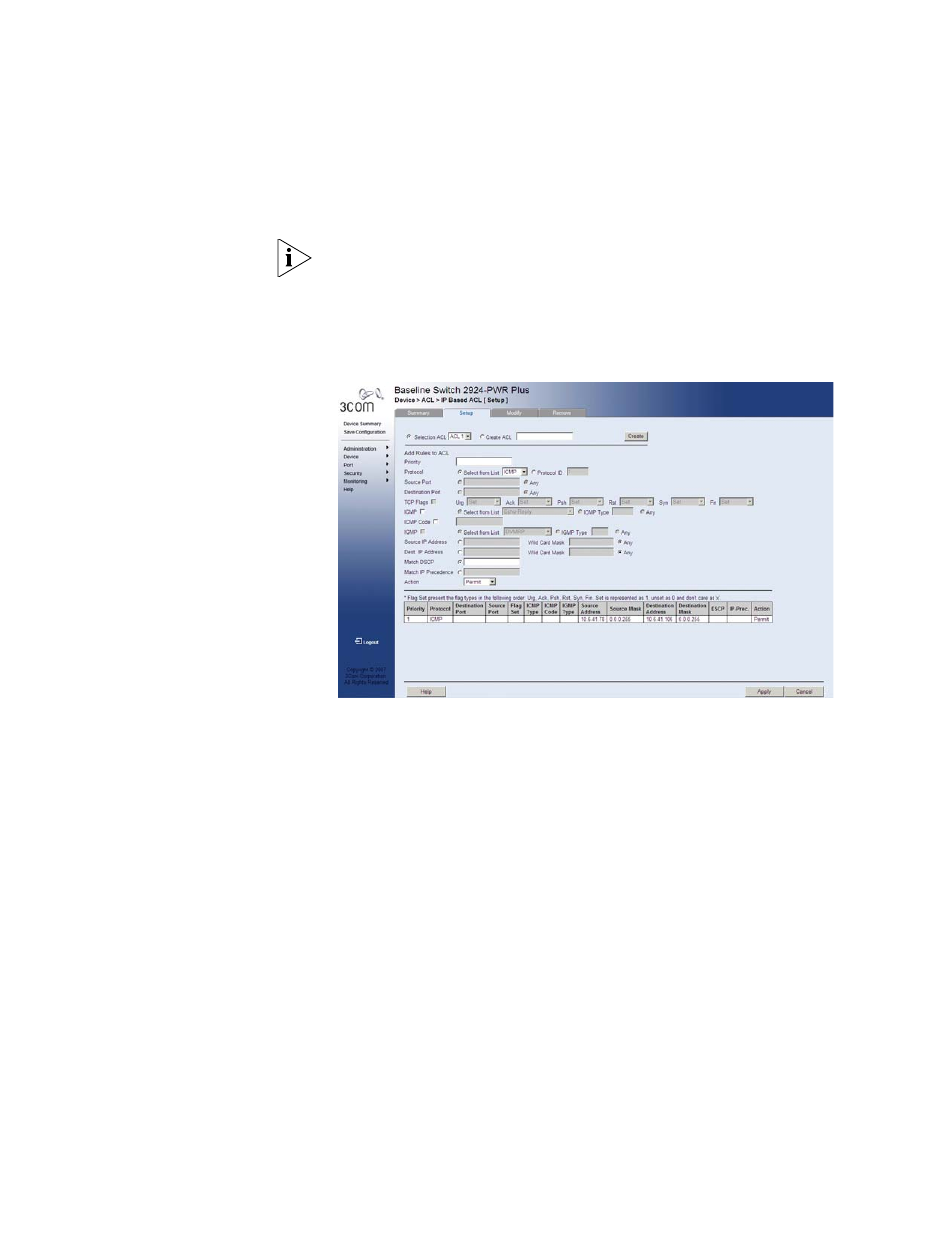

Figure 32 IP Based ACL Setup Page
The IP Based ACL Setup Page contains the following fields:
■
Selection ACL — Selects an existing IP-based ACL to which rules are
to be added.
■
Create ACL — Defines a new user-defined IP-based ACL.
Add Rules to ACL
■ Priority — Defines the ACL priority. ACLs are checked on the first fit
basis. The ACL priority defines the ACL order in the ACL list.
■ Protocol — Defines the protocol in the rule to which the packet is
matched. The possible fields are:
■
Select from List — Selects a protocol from a list by which packets
are matched to the rule.
■
Protocol ID — Adds user-defined protocols by which packets are
matched to the rule. Each protocol has a specific protocol number
which is unique. The possible field range is 0-255.
