134 C HAPTER 9: C ONFIGURING IP AND MAC A DDRESS I NFORMATION
■ State — Displays the MAC address configuration method. Possible
values are:
■
Config Static — Indicates the MAC address is statically configured.
■
Config Dynamic — Indicates the MAC address is dynamically
configured.
■ Port Index — Indicates the port through which the address was
learned.
■
Aging Time — Indicates the amount of time the MAC address
remains in the MAC address table before it is timed out if no traffic
from the source is detected. The default value is 300 seconds.
Viewing Port
Summary Settings
The Port Summary Page allows the user to view the MAC addresses
assigned to specific ports.
To view Port Summary settings:
1 Click Monitoring > Address Table > Port Summary. The Port Summary
Page opens:

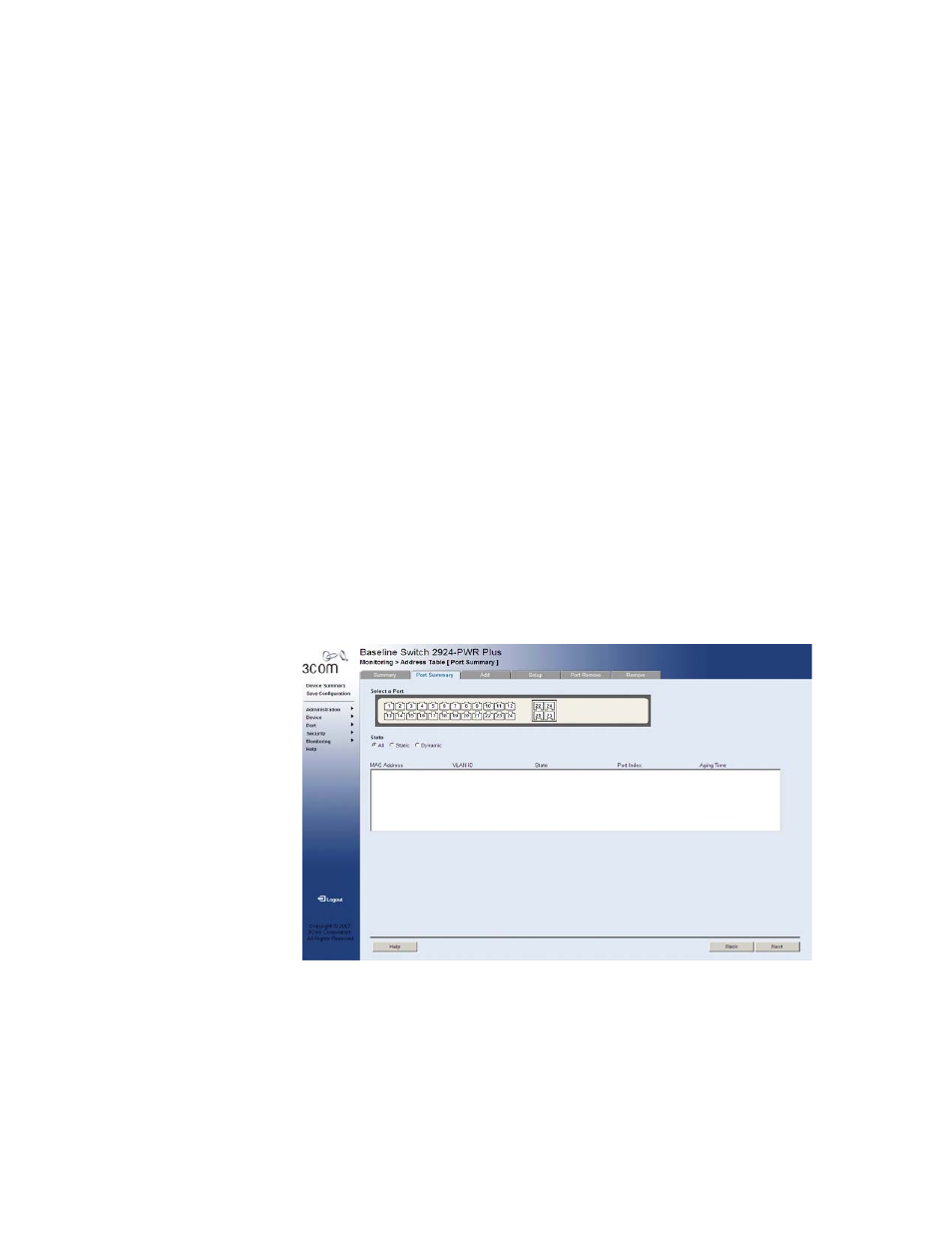

Figure 64 Port Summary Page
The Port Summary Page contains the following fields:
■
Select a Port — Selects ports to display their settings.
