Defining Voice VLAN

177

Voice VLAN Aging Time — Defines the amount of time after the last
IP phone's OUI is aged out for a specific port. The Voice VLAN aging
time starts after the MAC Address is aged out from the Dynamic MAC
Address table. The port will age out after the bridge and voice aging
times. The default bridge aging time is 300 seconds. The default voice
aging time is 1 day. The possible fields are:

Day — The field range is 0-30.

Hour — The field range is 0-23.

Minute — The field range is 0-59.

The Voice VLAN aging time must be between 5 minutes and 30 days.

2 Select Enable in the Voice VLAN State field.

3 Define the Voice VLAN and Voice VLAN Aging Time fields.

4 Click

. The Voice VLAN is defined, and the device is

updated.

Defining Voice VLAN

Port Settings

The Voice VLAN Port Setup Page contains information for defining Voice
VLAN port/LAG settings.

To configure Voice VLAN port settings:

1 Click Device > QoS > VoIP Traffic Setting > Port Setup. The Voice

VLAN Port Setup Page opens:

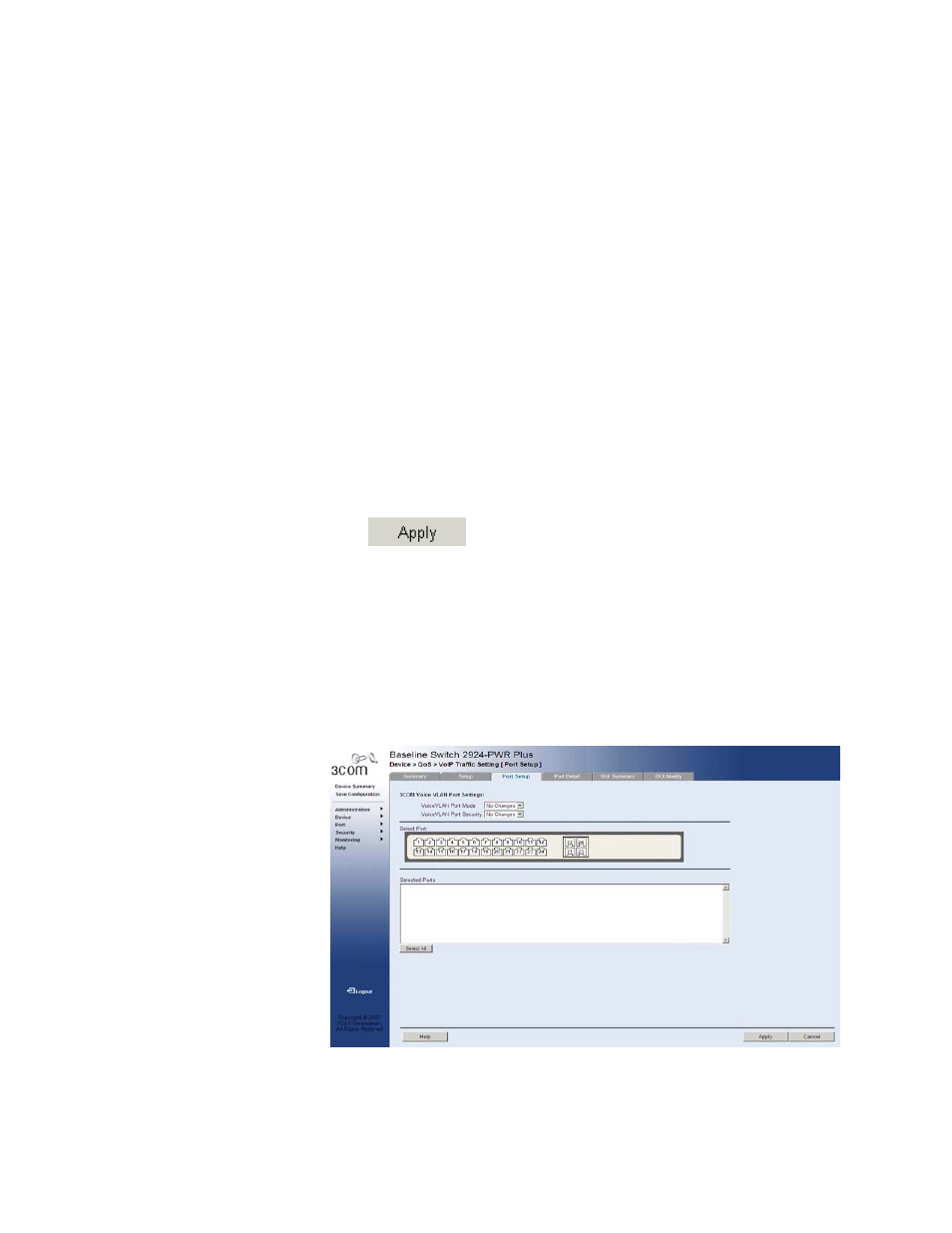

Figure 88 Voice VLAN Port Setup Page
