107
Viewing Link
Aggregation
The Link Aggregation Summary Page displays port usage by linking a
group of ports together to form a single LAG. Aggregating ports
multiplies the bandwidth between the devices, increases port flexibility,
and provides link redundancy.
To view Link Aggregation:
1 Click Port > Link Aggregation > Summary. The Link Aggregation
Summary Page opens:

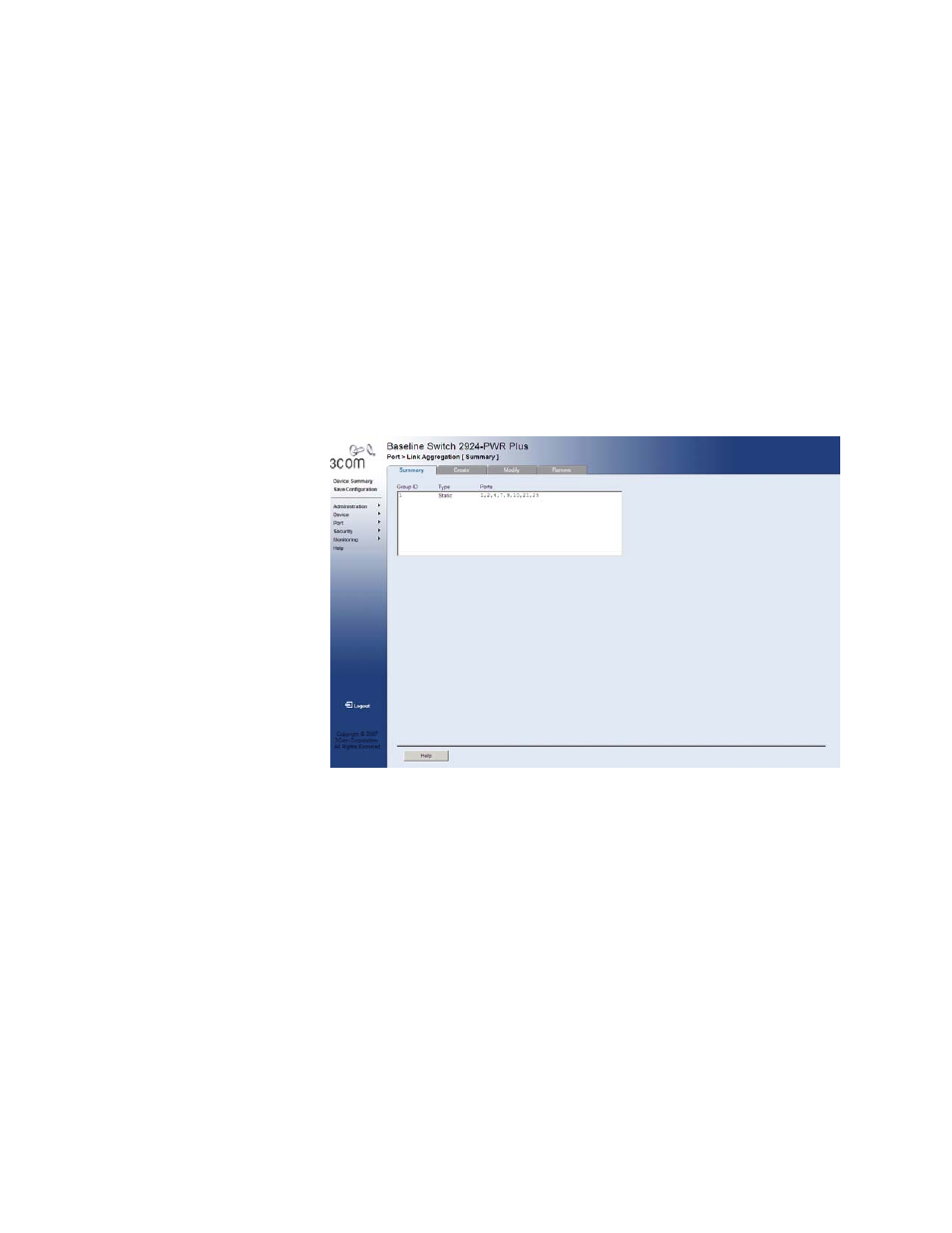

Figure 47 Link Aggregation Summary Page
The Link Aggregation Summary Page includes the following fields:
■ Group ID — Displays the Link Aggregated Group ID. The field range is
1-8.
■ Type — Displays the type of link aggregation for the Group ID. The
possible field values are Static or LACP.
■ Ports — Displays the member ports included in the specified LAG.
Configuring Link
Aggregation
The Link Aggregation Create Page optimizes port usage by linking a
group of ports together to form a single LAG. Aggregating ports
multiplies the bandwidth between the devices, increases port flexibility,
and provides link redundancy.
