84 C HAPTER 4: M ANAGING D EVICE S ECURITY
Configuring ACL
Binding
The ACL Binding Setup Page allows the network administrator to bind
specific ports to MAC- or IP-based ACLs.
The monitor user has no access to this page.
To define ACL Binding:
1 Click Device > ACL > ACL Binding > Setup. The ACL Binding Setup
Page opens:

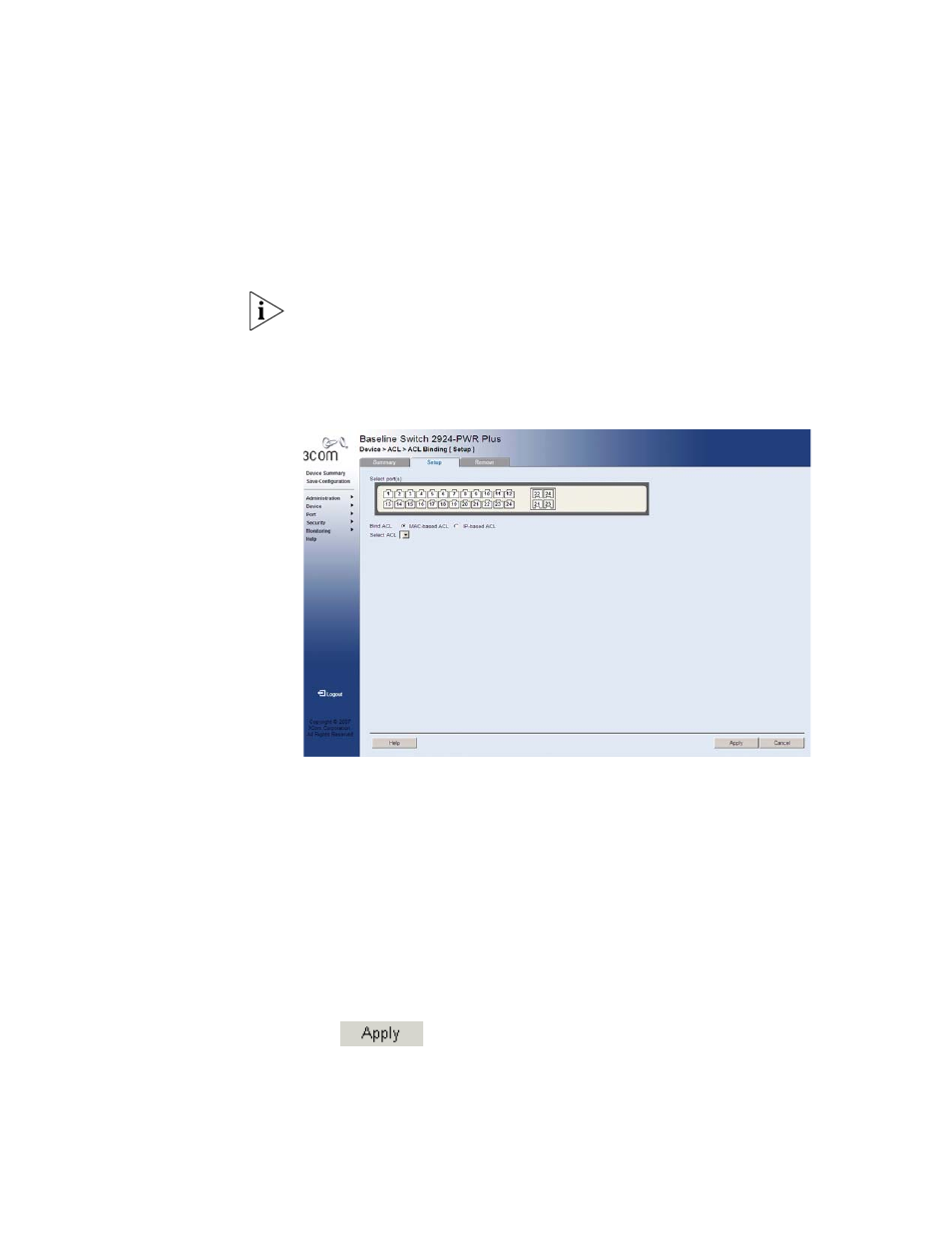

Figure 36 ACL Binding Setup Page
The ACL Binding Setup Page contains the following fields:
■
Select Port(s) — Selects the ports to be configured.
■
Bind ACL — Assigns an Access Control List to a port or LAG.
■
MAC-based ACL — Displays the MAC based ACL to which the
interface is assigned.
■
IP-based ACL — Displays the IP based ACL to which the interface is
assigned.
■
Select ACL — Selects the ACL from a list of previously defined Access
Control Lists to which the port or LAG can be bound. To bind an ACL
to a LAG, the ACL should be bound to its port members.
2 Define the relevant fields.
3 Click . ACL Binding is defined, and the device is updated.
