Understanding the 3Com Web Interface 35
Device
Representation
The 3Com Web Interface Home Page contains a graphical panel
representation of the device that appears within the Device View Tab.
To access the Device Representation:
1 Click Device Summary > Device View.

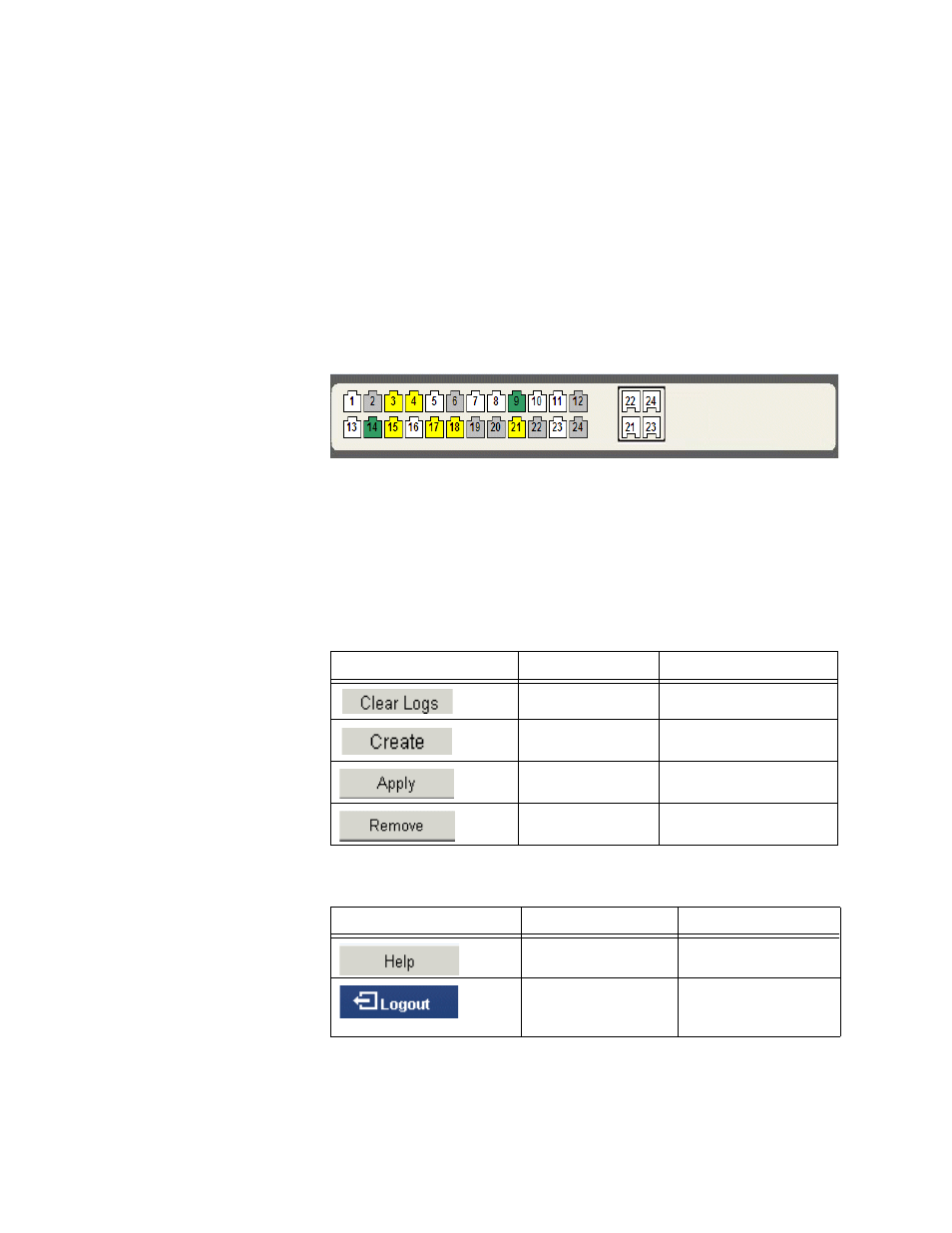

Figure 9 Device Representation
2 By selecting a specific port with your mouse, you can view the port
statistics.
For detailed information on configuring ports, please refer to Configuring
Ports.
Using the 3Com Web
Interface
Management Buttons
Configuration Management buttons and icons provide an easy method
of configuring device information, and include the following:
Table 7: 3Com Web Interface Configuration Buttons
B u t t o n B u t t o n N a m e D e s c r i p t i o n
Clear Logs Clears system logs.
Create
Creates configuration
entries.
Apply
Applies configuration
changes to the device.
Delete
Deletes configuration set-
tings.
Table 8: 3Com Web Interface Information Tabs
Ta b Ta b N a m e D e s c r i p t i o n
Help Opens the online help.
Logout
Logs the user out and
terminates the current
session.
