Viewing DSCP to
Queue
The DSCP to Queue Summary Page contains fields for mapping DSCP
settings to traffic queues. For example, a packet with a DSCP tag value of
3 can be assigned to queue 4.
To view the DSCP Queue:
1 Click Device > QoS > DSCP to Queue > Summary. The DSCP to Queue
Summary Page opens:

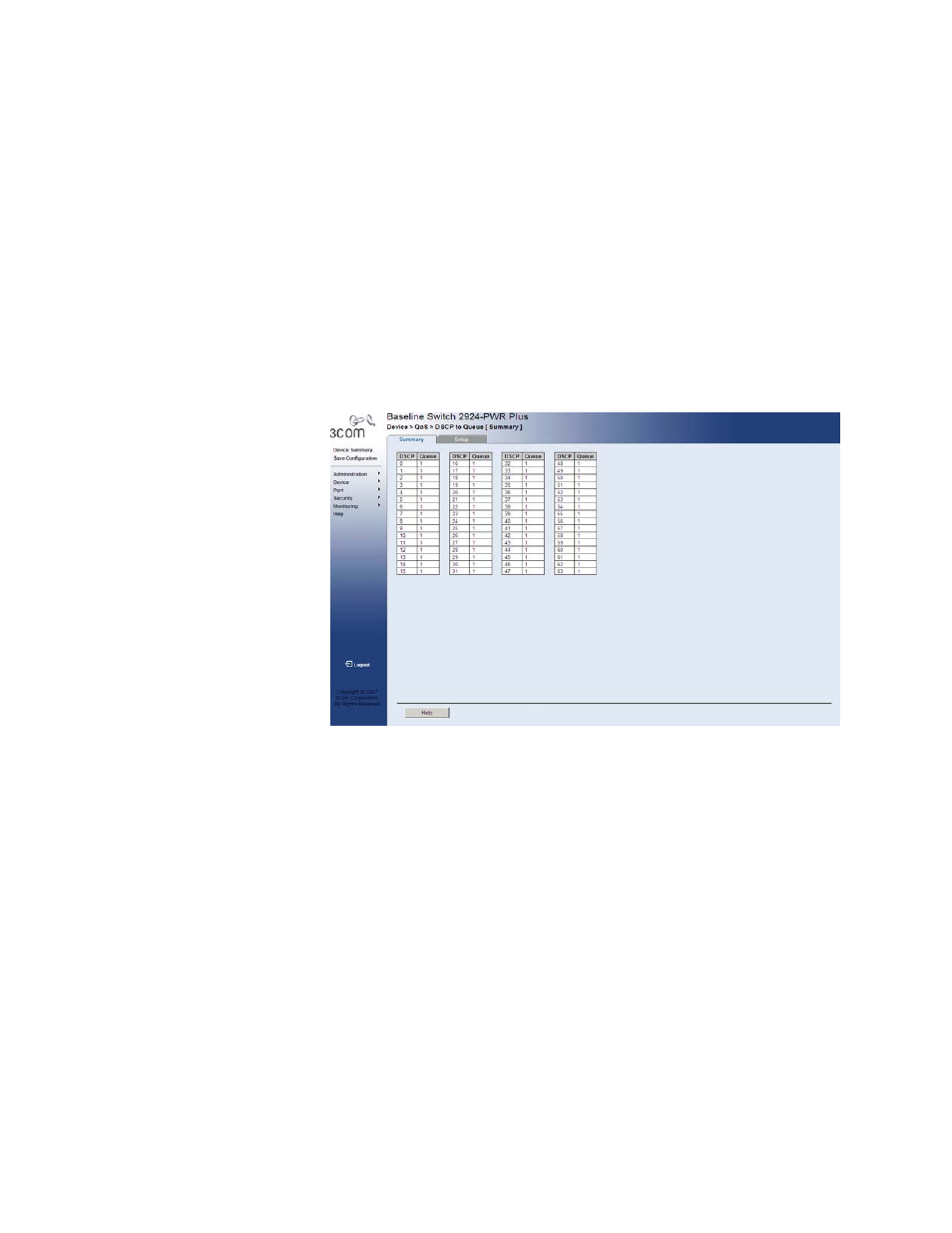

Figure 81 DSCP to Queue Summary Page
The DSCP to Queue Summary Page contains the following fields:
■ DSCP — Displays the incoming packet’s DSCP value.
■
Queue — Indicates the traffic forwarding queue to which the DSCP
priority is mapped. Four traffic priority queues are supported.
