153
Modifying Spanning
Tree
TheSpanning Tree Modify Page contains information for modifying
Spanning Tree parameters.
Monitor users have no access to this page.
To modify Spanning Tree:
1 Click Device > Spanning Tree > Modify. The Spanning Tree Modify
Page opens:

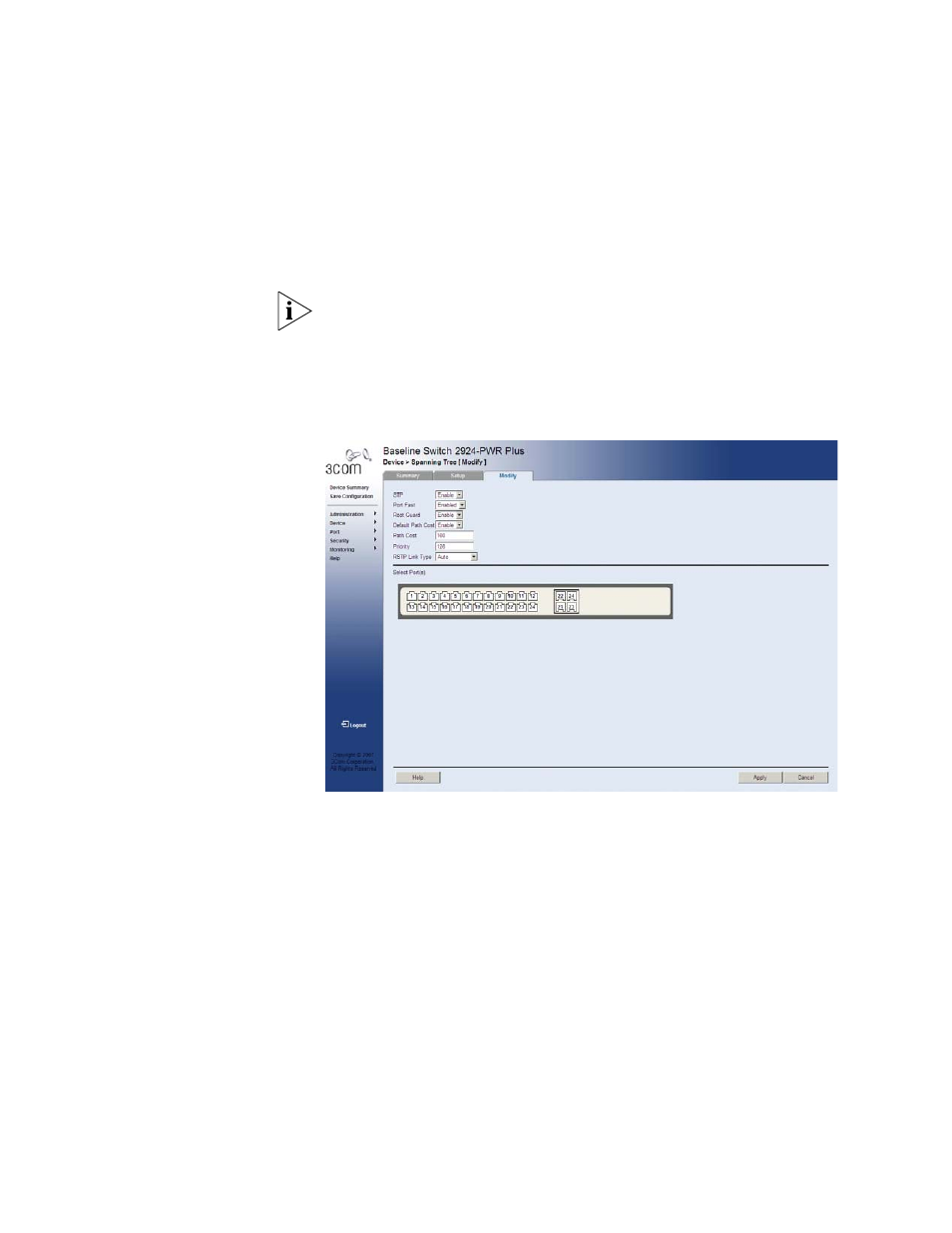

Figure 72 Spanning Tree Modify Page
The Spanning Tree Modify Page contains the following fields:
■ STP — Specifies if STP is enabled on the port. The possible field values
are:
■
Enable — Indicates that STP is enabled on the port.
■
Disable — Indicates that STP is disabled on the port.
■ Port Fast — Specifies if Fast Link is enabled on the port. If Fast Link
mode is enabled for a port, the port is automatically placed in the
Forwarding state when the port link is up. Fast Link optimizes the STP
protocol convergence. STP convergence takes 30 seconds and is not
dependent on the number of switches in the network. The possible
field values are:
