158 C HAPTER 12: C ONFIGURING SNMP
Removing SNMP
Communities
The SNMP Communities Remove Page allows the system manager to
remove SNMP Communities.
Monitor users have no access to this page.
To remove SNMP communities:
1 Click Administration > SNMP > Communities > Remove. The SNMP
Communities Remove Page opens:

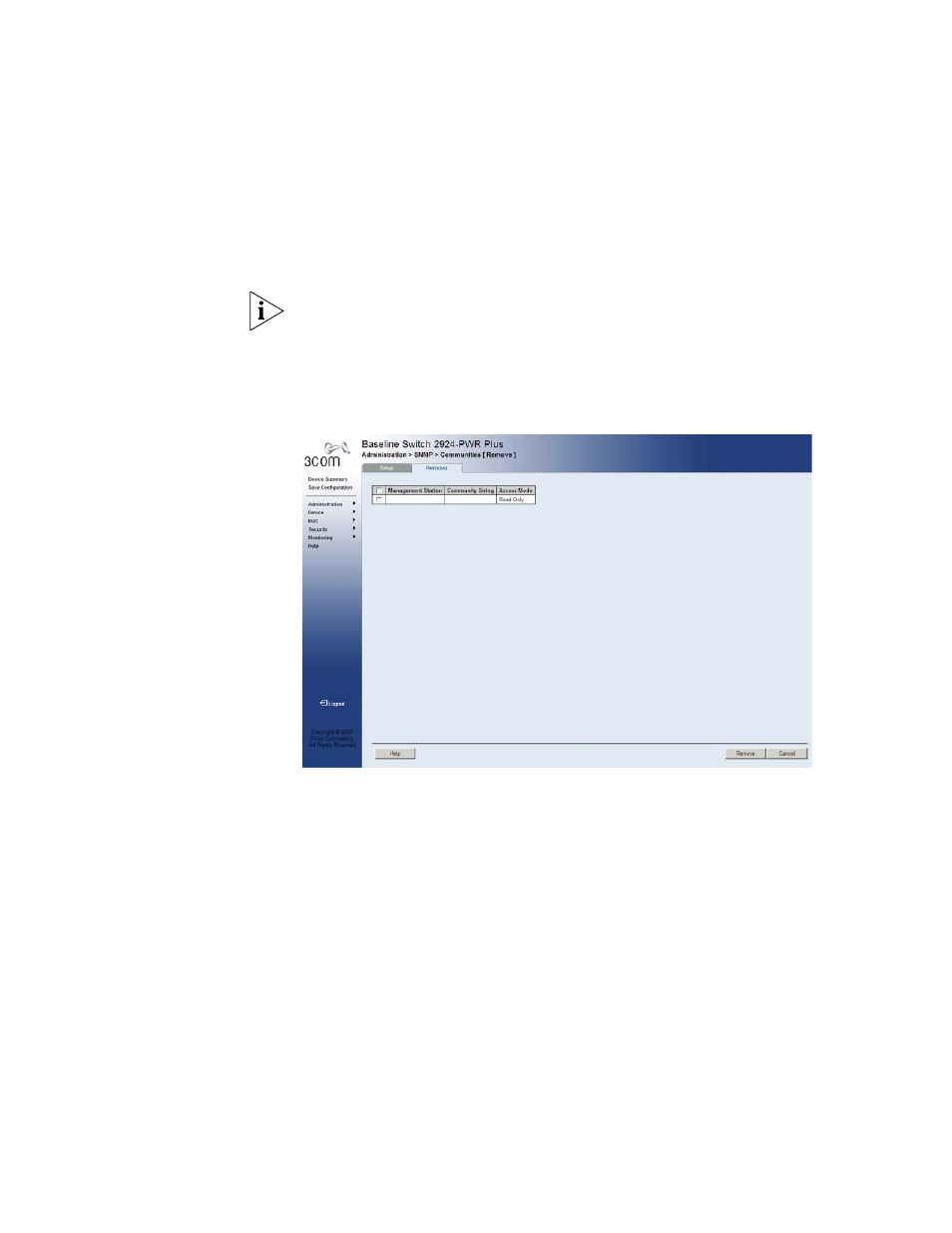

Figure 74 SNMP Communities Remove Page
The SNMP Communities Remove Page contains the following fields:
■ Checkbox (unnamed) — When checked, selects an SNMP community
for removal. The top checkbox is used to select all SNMP communities
for removal.
■
Management Station — Displays the management station IP
address for which the SNMP community is defined.
■ Community String — Displays the user-defined text string which
authenticates the management station to the device.
