Defining Access Control Lists 77
Modifying IP Based
ACLs
The IP Based ACL Modify Page allows the network administrator to
modify IP Based ACL rules.
To modify an IP-based ACL rule:
1 Click Device > ACL > IP Based ACL > Modify. The IP Based ACL Modify
Page opens:
Monitor users have no access to this page.

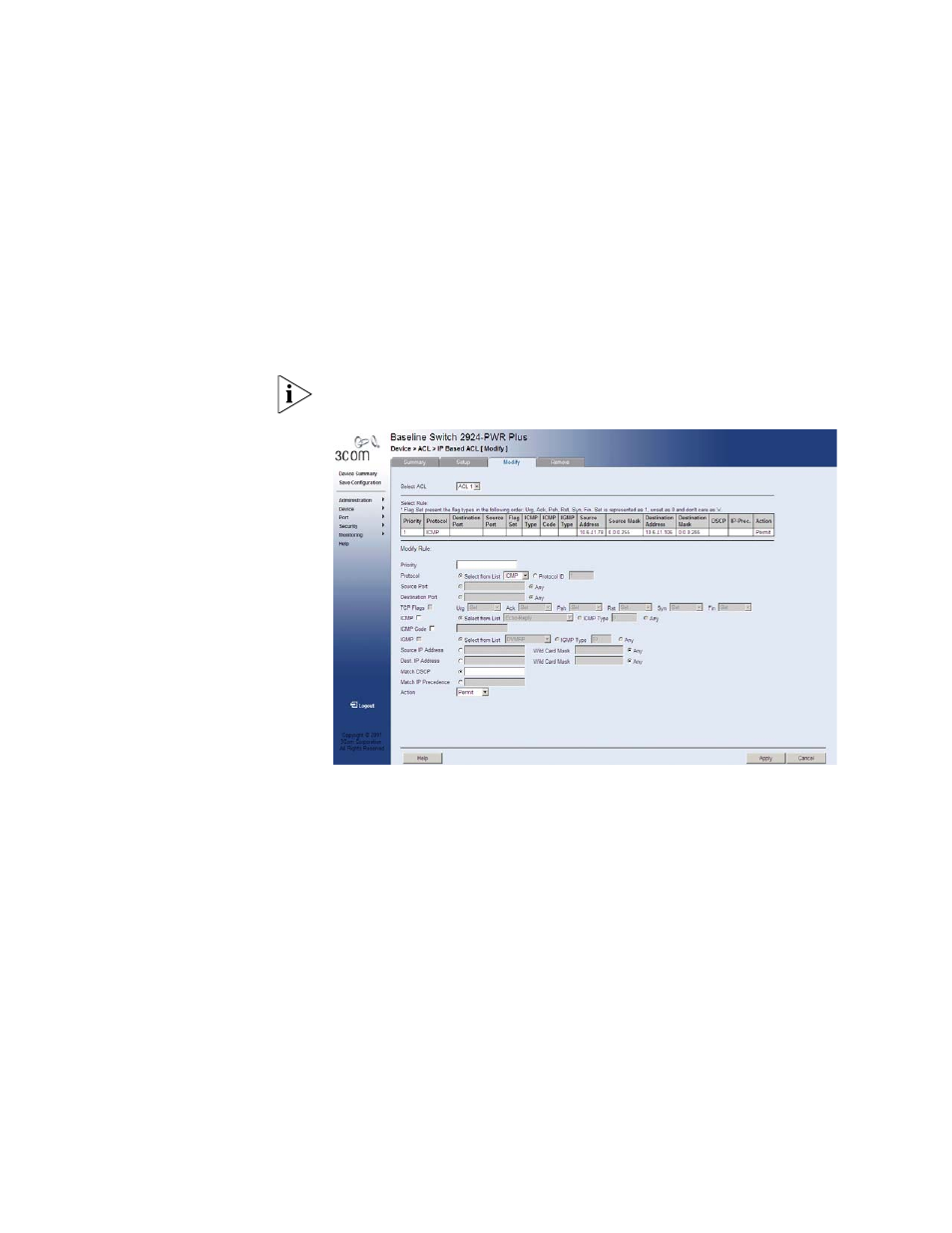

Figure 33 IP Based ACL Modify Page
The IP Based ACL Modify Page contains the following fields:
■
Select ACL — Selects the ACL to be modified.
■
Select Rule — Displays a table of rules and their settings associated
with the selected ACL. Highlighting a rule allows the user to modify its
settings in the Modify Rule section below.
Modify Rule
■ Priority — Defines the ACL priority. ACLs are checked on the first fit
basis. The ACL priority defines the ACL order in the ACL list.
■ Protocol — Defines the protocol in the rule to which the packet is
matched. The possible fields are:
