189
Activating Image Files The Active Image Page allows network managers to select and reset the
Image files.
To upload System files:
1 Click Administration > Firmware Upgrade > Active Image. The
Active Image Page opens:

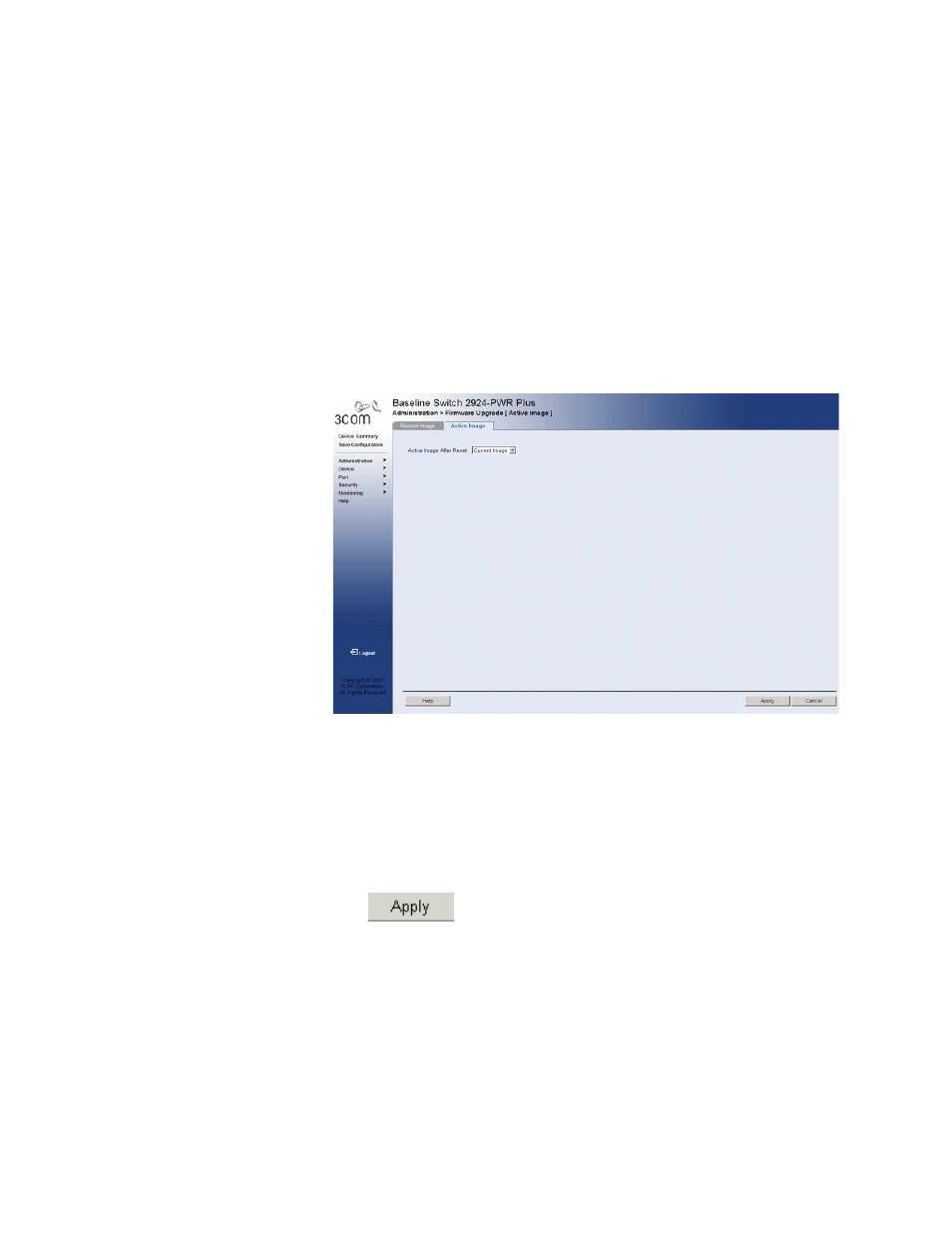

Figure 95 Active Image Page
The Active Image Page contains the following fields:
■ Active Image After Reset — Selects the image file which is active on
the unit after the device is reset. The possible field values are:
■
Current Image — Activates the current image after the device is
reset.
■
Backup Image — Activates backup image after the device is reset.
2 Select the active image to be activated after reset.
3 Click . The active image file is defined, and the device is
updated.
