Prestige 660H/HW Series User’s Guide
Chapter 1 Getting To Know Your Prestige 50

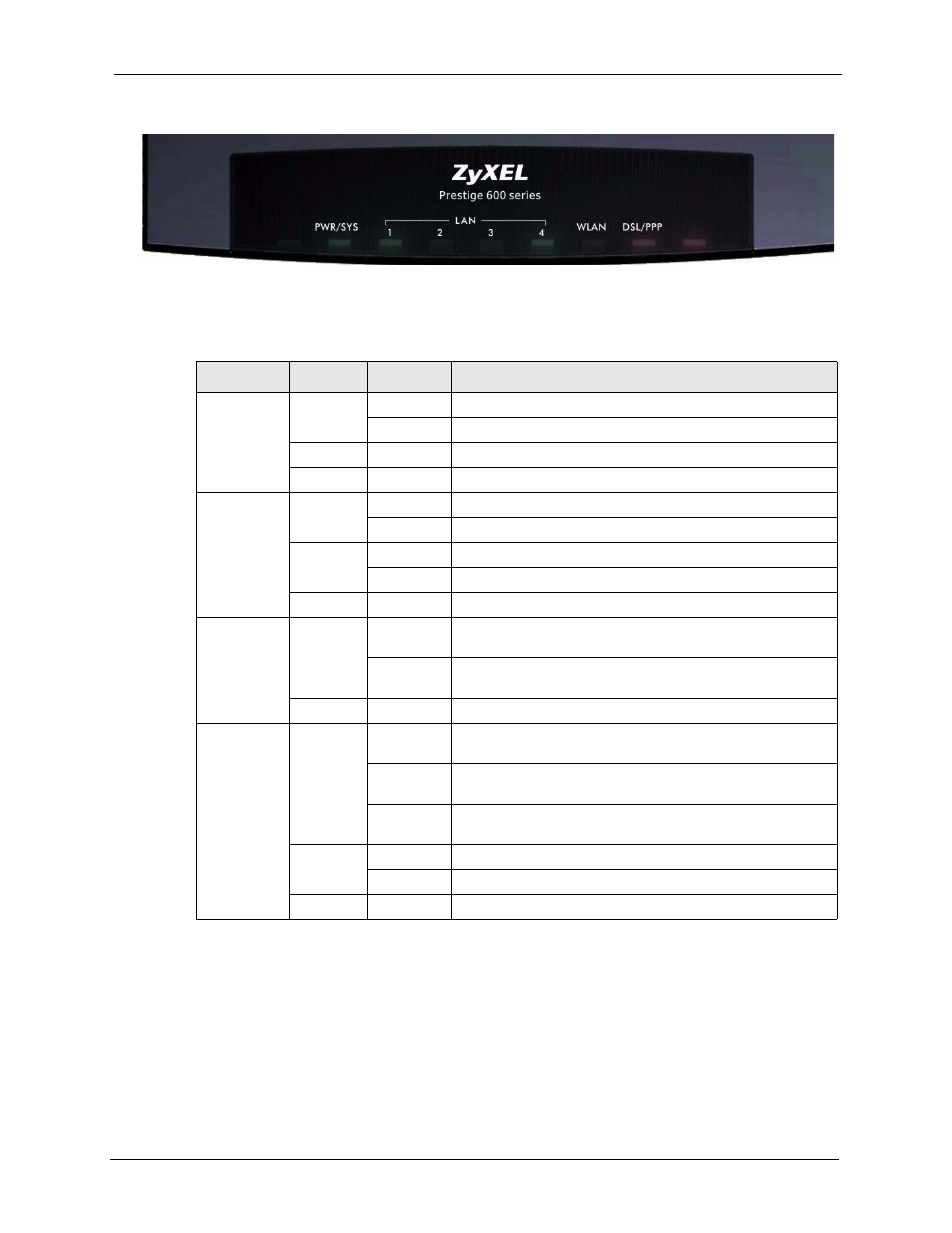

Figure 5 P-660HW Front Panel
The following table describes the LEDs.
Table 2 Front Panel LEDs
LED COLOR STATUS DESCRIPTION
PWR/SYS Green On The Prestige is receiving power and functioning properly.
Blinking The Prestige is rebooting.
Red On Power to the Prestige is too low.
None Off The system is not ready or has malfunctioned.
LAN 1-4 Green On The Prestige has a successful 10Mb Ethernet connection.
Blinking The Prestige is sending/receiving data.
Amber On The Prestige has a successful 100Mb Ethernet connection.
Blinking The Prestige is sending/receiving data.
None Off The LAN is not connected.
WLAN (P-
660HW only)
Green On The Prestige is ready, but is not sending/receiving data
through the wireless LAN.
Blinking The Prestige is sending/receiving data through the wireless
LAN.
None Off The wireless LAN is not ready or has failed.
DSL/PPP Green Fast
Blinking
The Prestige is sending/receiving non-PPP data.
Slow
Blinking
The Prestige is initializing the DSL line.
On The system is ready, but is not sending/receiving non-PPP
data.
Amber On The connection to the PPPoE server is up.
Blinking The Prestige is sending/receiving PPP data.
Off The DSL link is down.
Refer to the Quick Start Guide for information on hardware connections.
