Chapter 11 Spanning Tree Protocol
GS-4012F/4024 User’s Guide
115

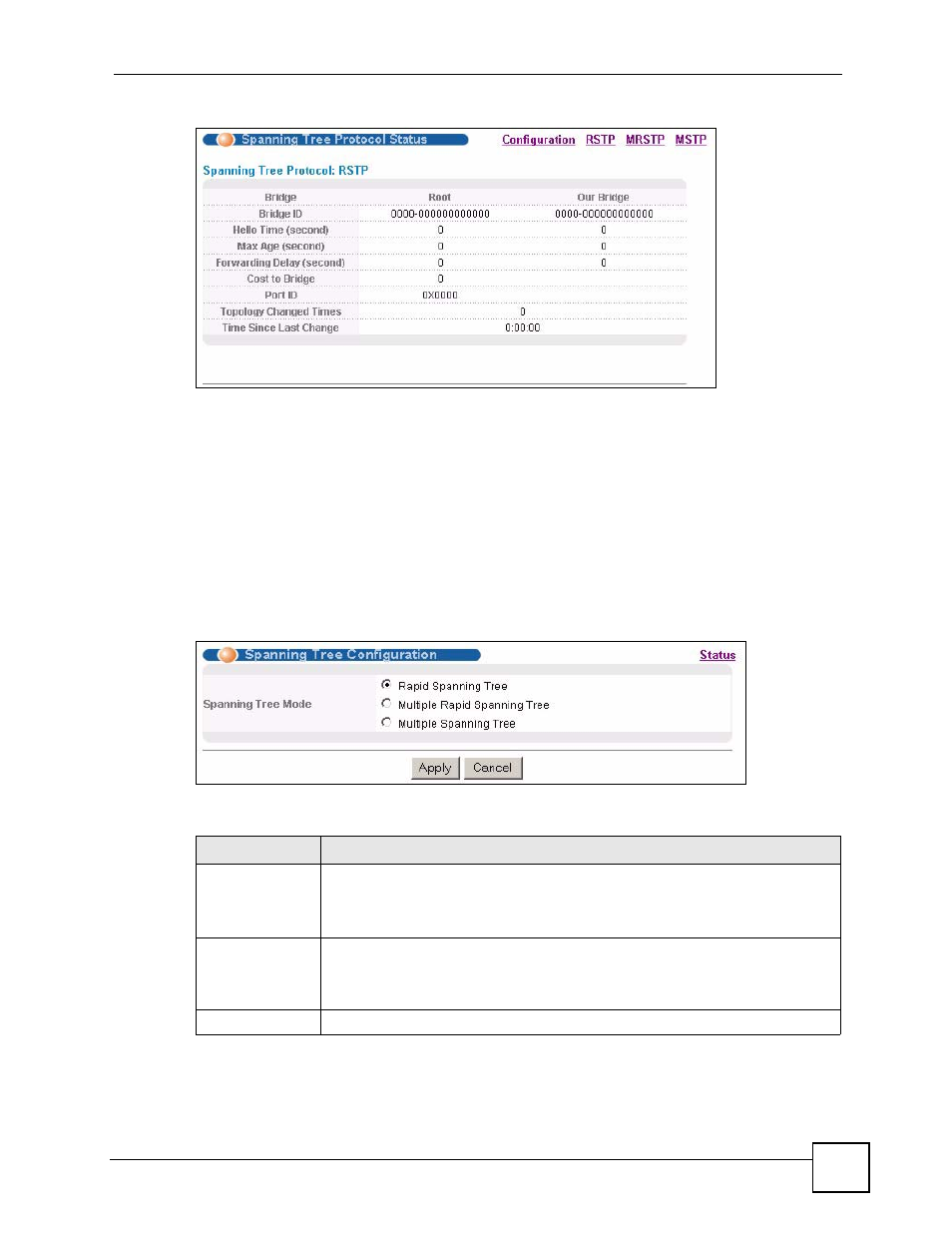

Figure 51 Advanced Application > Spanning Tree Protocol
This screen differs depending on which STP mode (RSTP, MRSTP or MSTP) you configure
on the Switch. This screen is described in detail in the section that follows the configuration
section for each STP mode. Click Configuration to activate one of the STP standards on the
Switch.
11.3 Spanning Tree Configuration
Use the Spanning Tree Configuration screen to activate one of the STP modes on the
Switch. Click Configuration in the Advanced Application > Spanning Tree Protocol.
Figure 52 Advanced Application > Spanning Tree Protocol > Configuration
The following table describes the labels in this screen.
Table 24 Advanced Application > Spanning Tree Protocol > Configuration
LABEL DESCRIPTION
Spanning Tree
Mode You can activate one of the STP modes on the Switch.
Select Rapid Spanning Tree, Multiple Rapid Spanning Tree or Multiple
Spanning Tree. See
Section 11.1 on page 109 for background information on
STP.
Apply Click Apply to save your changes to the Switch’s run-time memory. The Switch
loses these changes if it is turned off or loses power, so use the Save link on the
top navigation panel to save your changes to the non-volatile memory when you
are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
