Chapter 4 Tutorial
ZyXEL NWA-3160 Series User’s Guide
73

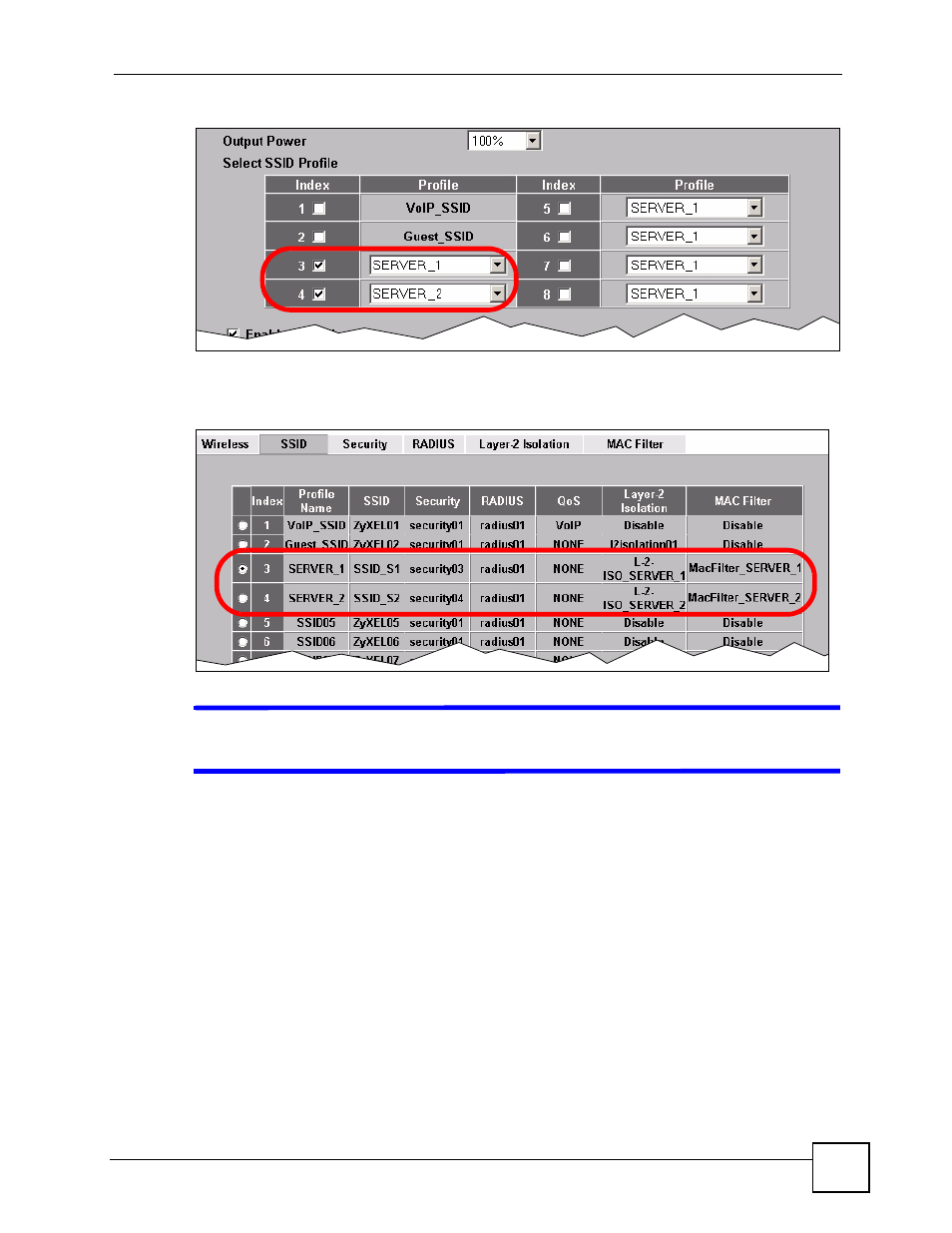

Figure 40 Tutorial: SSID Profiles Activated
2 Next, click the SSID tab. Check that each configured SSID profile uses the correct
Security, Layer-2 Isolation and MAC Filter profiles, as shown in the following figure.
Figure 41 Tutorial: SSID Tab Correct Settings
V
If the settings are not as shown, follow the steps in the relevant section of this
tutorial again.
4.4.6.2 Testing the Configuration
Before you allow employees to use the network, you need to thoroughly test whether the setup
behaves as it should. Take the following steps to do this.
1 Test the SERVER_1 network.
• Using Alice’s computer and wireless client, and the correct security settings, do the
following.
Attempt to access Server 1. You should be able to do so.
Attempt to access the Internet. You should be able to do so.
Attempt to access Server 2. You should be unable to do so. If you can do so, layer-2
isolation is misconfigured.
• Using Alice’s computer and wireless client, and incorrect security settings, attempt to
associate with the SERVER_1 network. You should be unable to do so. If you can do
so, security is misconfigured.
