Chapter 1 Introducing the ZyXEL Device
ZyXEL NWA-3160 Series User’s Guide
37
For example, you might want to set up a wireless network in your office where Internet
telephony (Voice over IP, or VoIP) users have priority. You also want a regular wireless
network for standard users, as well as a ‘guest’ wireless network for visitors. In the following
figure, VoIP_SSID users have Quality of Service (QoS) priority, SSID03 is the wireless
network for standard users, and Guest_SSID is the wireless network for guest users. In this
example, the guest user is forbidden access to the wired LAN behind the AP and can access
only the Internet.

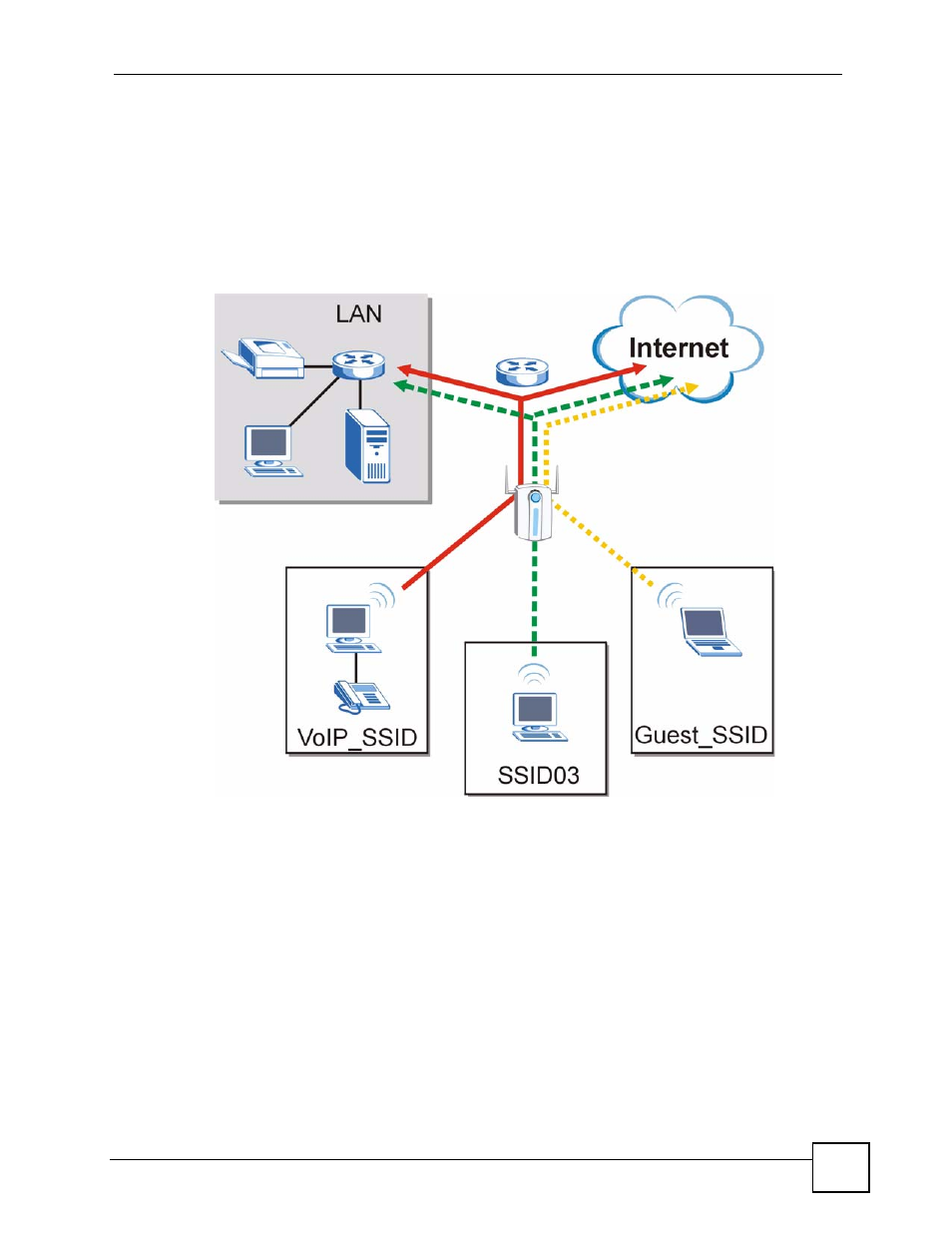

Figure 5 Multiple BSSs
1.2.5 Pre-Configured SSID Profiles
The ZyXEL Device has two pre-configured SSID profiles.
1 VoIP_SSID. This profile is intended for use by wireless clients requiring the highest
QoS (Quality of Service) level for VoIP (Voice over IP) telephony and other applications
requiring low latency. The QoS level of this profile is not user-configurable. See
2 Guest_SSID. This profile is intended for use by visitors and others who require access
to certain resources on the network (an Internet gateway or a network printer, for
example) but must not have access to the rest of the network. Layer 2 isolation is enabled
(see
), and QoS is set to NONE. Intra-BSS traffic blocking is
). These fields are all user-configurable.
