Chapter 16 VLAN
ZyXEL NWA-3160 Series User’s Guide
186

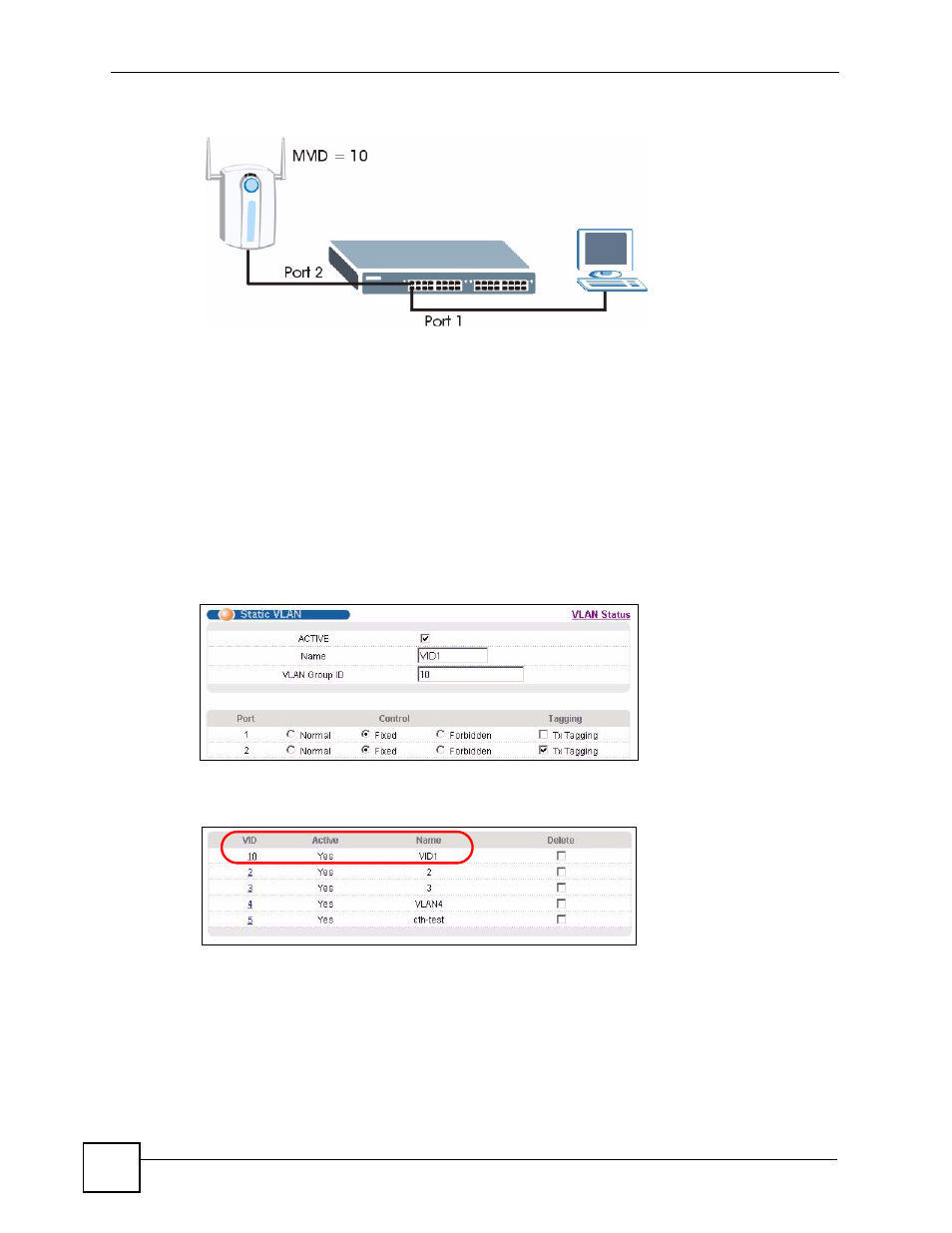

Figure 108 Management VLAN Configuration Example
Perform the following steps in the switch web configurator:
1 Click VLAN under Advanced Application.
2 Click Static VLAN.
3 Select the ACTIVE check box.
4 Type a Name for the VLAN ID.
5 Type a VLAN Group ID. This should be the same as the management VLAN ID on the
ZyXEL Device.
6 Enable Tx Tagging on the port which you want to connect to the ZyXEL Device.
Disable Tx Tagging on the port you are using to connect to your computer.
7 Under Control, select Fixed to set the port as a member of the VLAN.
Figure 109 VLAN-Aware Switch - Static VLAN
8 Click Apply. The following screen displays.
Figure 110 VLAN-Aware Switch
9 Click VLAN Status to display the following screen.
