Chapter 16 VLAN
ZyXEL NWA-3160 Series User’s Guide
187

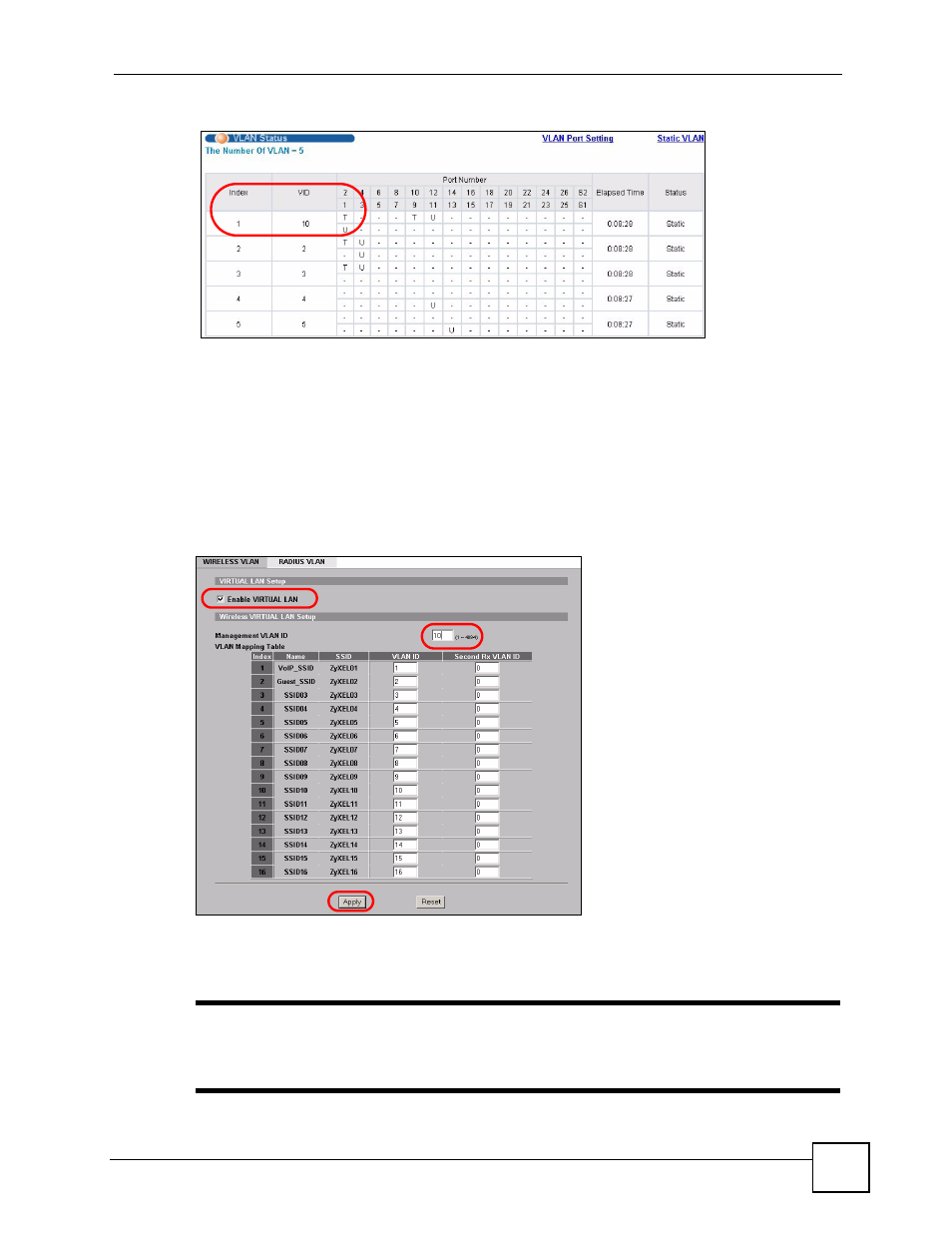

Figure 111 VLAN-Aware Switch - VLAN Status
Follow the instructions in the Quick Start Guide to set up your ZyXEL Device for
configuration. The ZyXEL Device should be connected to the VLAN-aware switch. In the
above example, the switch is using port 1 to connect to your computer and port 2 to connect to
the ZyXEL Device:
Figure 108 on page 186 .
1 In the ZyXEL Device web configurator click VLAN to open the VLAN setup screen.
2 Select the Enable VLAN Tagging check box and type a Management VLAN ID (10 in
this example) in the field provided.
3 Click Apply.
Figure 112 VLAN Setup
4 The ZyXEL Device attempts to connect with a VLAN-aware device. You can now
access and mange the ZyXEL Device though the Ethernet switch.
"
If you do not connect the ZyXEL Device to a correctly configured VLAN-aware
device, you will lock yourself out of the ZyXEL Device. If this happens, you
must reset the ZyXEL Device to access it again.
