Appendix A Product Specifications

ZyXEL NWA-3160 Series User’s Guide

256

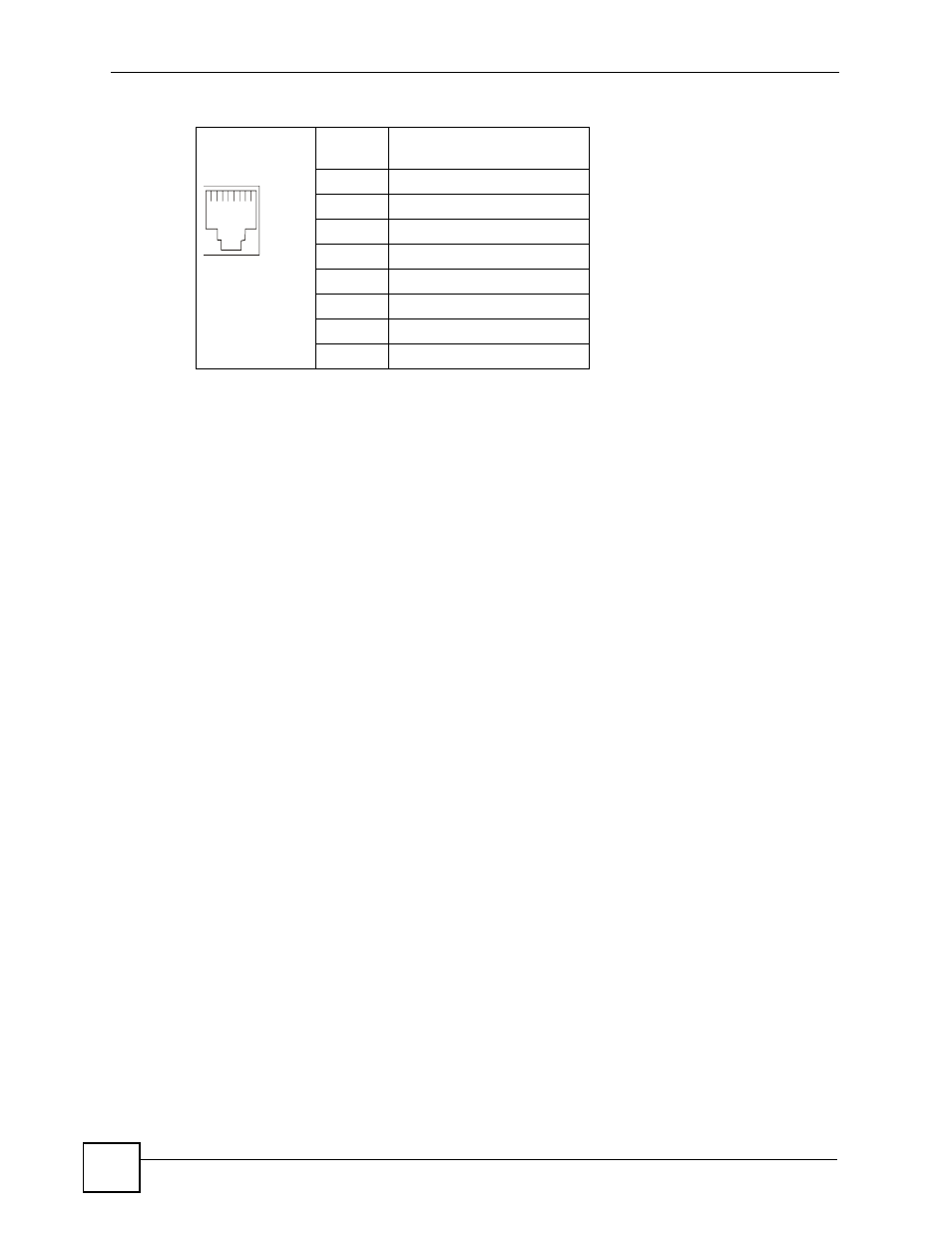

Table 101 Power over Ethernet Injector RJ-45 Port Pin Assignments

PIN NO

RJ-45 SIGNAL

ASSIGNMENT

1

Output Transmit Data +

2

Output Transmit Data -

3

Receive Data +

4

Power +

5

Power +

6

Receive Data -

7

Power -

8

Power -

1 2 3 4 5 6 7 8
