Xerox COLORQUBE 8870 - Manual (Page 75)

Printing
ColorQube 8570/8870 Color Printer
User Guide
75

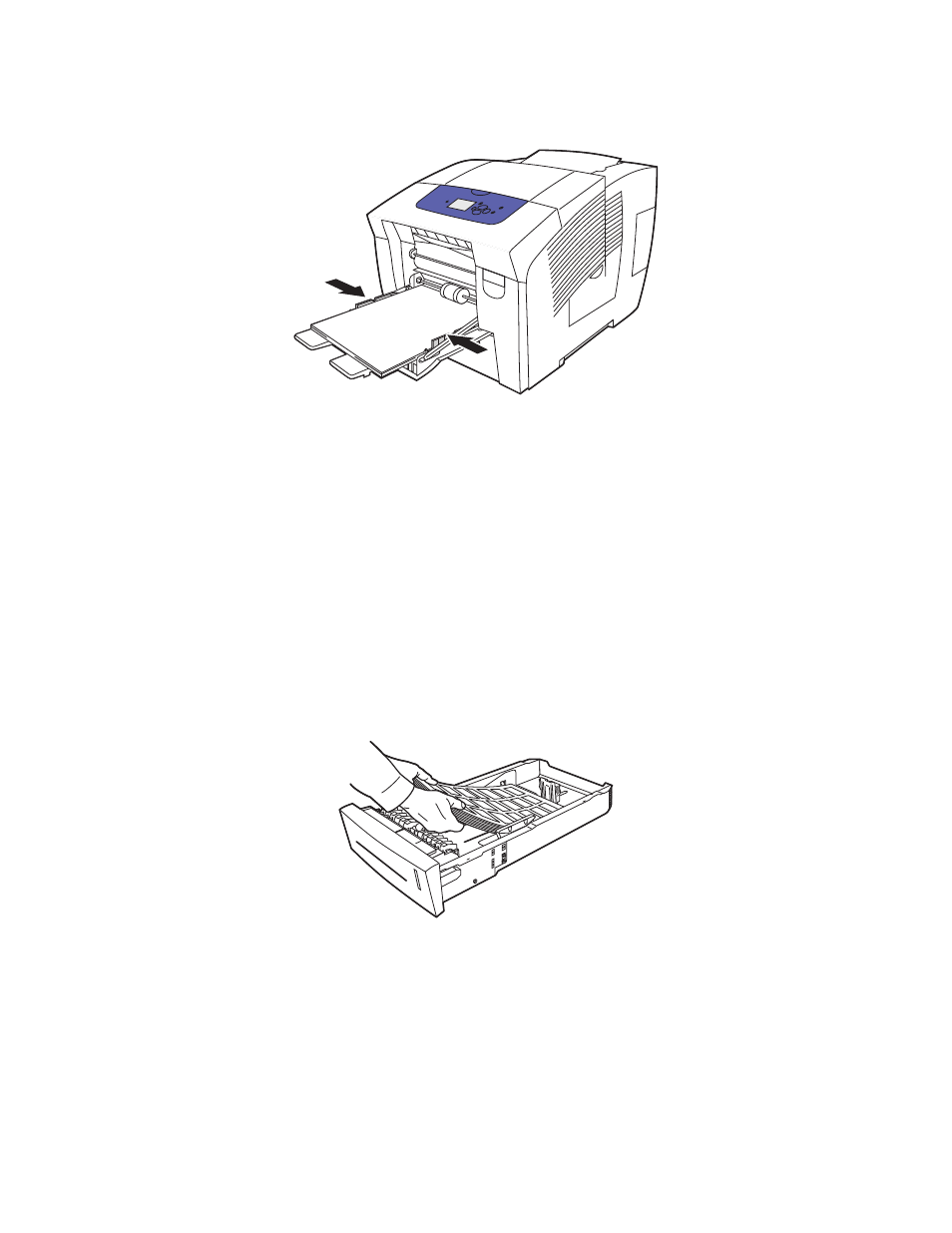

3. Adjust the paper guides to fit the labels loaded in the tray.
4. On the printer control panel, if the correct paper size and type (Labels) are displayed as the current
setup, press the OK button. Go to step 6.
5. If the correct size and type are not displayed, do the following:
a.
Select Change setup > OK.
b. At the Tray 1 Paper Size menu, select the paper size and then press OK.
c. At the Tray 1 Paper Type menu, select Labels > OK.
6. In the printer driver, select either Labels as the paper type or Tray 1 as the paper source.
Printing on Labels from Tray 2, 3, 4, or 5
1. Remove the tray from the printer. For details, see Loading Paper in Tray 2, 3, 4, or 5 on page 59.
2. Insert no more than 400 sheets of labels into the tray with the side to be printed faceup and the
top of the page toward the front of the tray.
8X70-075
8X70-081
